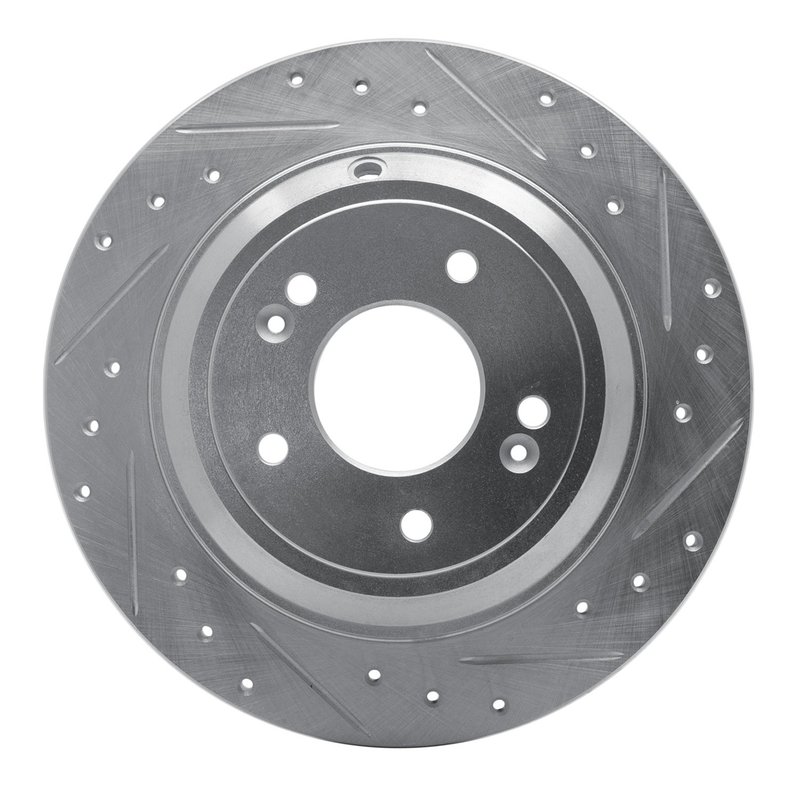

Dynamite Friction 631-03039R Disc Brake Rotor - Rear Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-03039R) is engineered for reliable braking performance on select Genesis, Hyundai, and Kia vehicles. Designed with a directional, slotted and drilled surface, this rotor enhances heat dissipation and braking consistency under demanding conditions.

• Disc type: Solid disc brake rotor with drilled and slotted surface
• Nominal thickness: 13 mm with discard thickness at 11.4 mm
• Overall diameter: 314 mm and height: 61 mm
• Hat finish: Zinc silver coating for corrosion resistance
• Rust resistant coating applied for extended durability
• Bolt hole quantity: 5 with 12.5 mm diameter, bolt circle diameter: 114.3 mm
• Directional brake surface optimized for improved braking efficiency

Details on the DFC Brake Rotor - Drilled and Slotted - Silver Line

The DFC Brake Rotor - Drilled and Slotted - Silver line from Dynamite Friction focuses on rotors that combine drilled holes and slots to improve brake pad bite and reduce heat buildup. This product line is designed to provide consistent braking performance while helping to minimize brake fade, making it suitable for drivers of Genesis G80, Hyundai Genesis, and Kia K900 models who require dependable stopping power.

Technical Description and Specifications

This solid disc brake rotor features a 314 mm outside diameter and a 61 mm overall height, fitting vehicles with a 5-lug bolt pattern and 114.3 mm bolt circle diameter. The rotor’s surface is both drilled and slotted, which aids in channeling away gases and debris from the brake pad interface, enhancing braking response. The zinc silver hat finish and rust resistant coating protect the rotor from corrosion, extending its service life. The nominal thickness of 13 mm ensures structural integrity, while the discard thickness of 11.4 mm indicates when replacement is necessary to maintain safe braking performance.

Compatible Vehicles and Common Applications

• Replacement rotor for Genesis G80 models requiring drilled and slotted rotors
• Suitable for Hyundai Genesis vehicles needing corrosion-resistant brake rotors
• Fits Kia K900 models with 5-lug, 114.3 mm bolt circle diameter
• Addresses issues such as brake fade during heavy use
• Helps reduce brake noise and vibration caused by uneven rotor surfaces

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 11.4 mm before installation. Properly clean the rotor surface to remove any protective coatings or debris. Verify bolt hole alignment with the vehicle’s hub using the 5-bolt, 12.5 mm diameter holes and 114.3 mm bolt circle diameter. Follow manufacturer torque specifications for lug nuts to avoid rotor warping. Directional rotors must be installed with the correct rotation direction for optimal performance.

Quality Assurance and Warranty

Dynamite Friction manufactures the 631-03039R rotor to meet industry standards for durability and performance. The rust resistant coating and zinc silver hat finish contribute to long-term reliability. Please consult product documentation or the manufacturer for specific warranty details related to this rotor.
