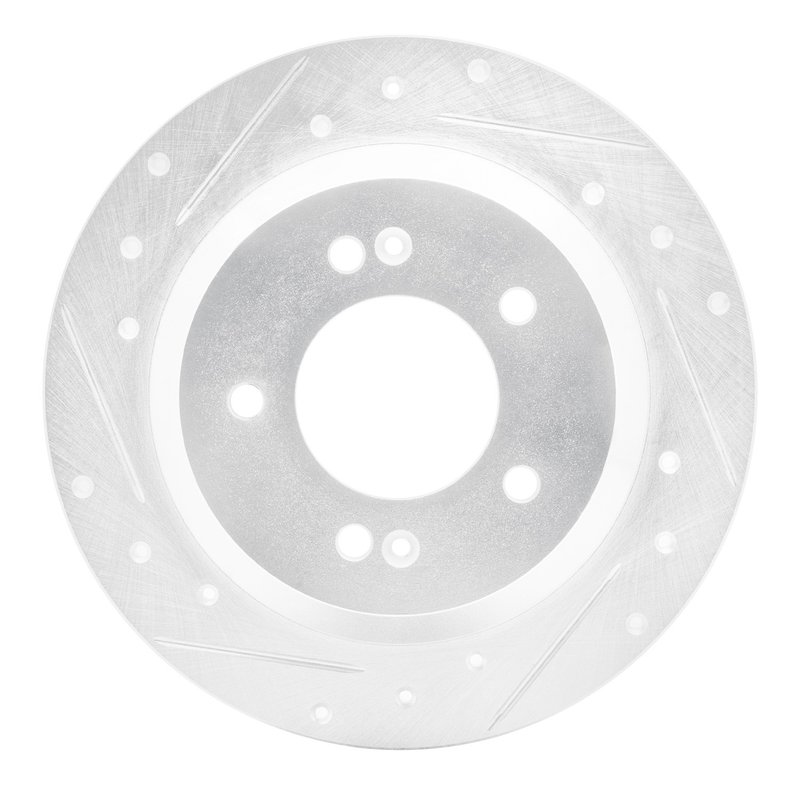

Dynamite Friction 631-03059L Disc Brake Rotor - Rear Left

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-03059L) is engineered for reliable braking performance on select Hyundai and Kia vehicles. Designed specifically for models like the Hyundai Kona, Kia Rondo, and Kia Soul, this rotor offers enhanced heat dissipation and consistent stopping power.

• Disc type: Solid disc brake rotor
• Surface finish: Drilled and slotted for improved cooling and debris removal
• Rust resistant zinc silver hat finish
• Nominal thickness: 10 mm with discard thickness at 8.4 mm
• Directional brake surface for optimized performance
• 5 bolt holes with 12.4 mm diameter and 114.3 mm bolt circle diameter
• Overall diameter: 284 mm, height: 45.3 mm

Details on the DFC Brake Rotor - Drilled and Slotted - Silver Line

The DFC Brake Rotor - Drilled and Slotted - Silver line from Dynamite Friction focuses on rotors that combine drilled holes and slots to enhance brake pad bite and heat dissipation. This design helps reduce brake fade during demanding driving conditions. The zinc silver coating on the rotor hat provides corrosion resistance, extending the rotor's service life. This product line is tailored for drivers seeking a balance between performance and durability in their braking system.

Product Specifications and Features

This solid disc brake rotor features a directional surface type with both drilled holes and slots, which aid in venting gases and removing brake dust. The rotor’s nominal thickness is 10 mm, with a discard thickness of 8.4 mm, ensuring clear service limits for safe operation. The rotor’s bolt hole diameter and stud/lug hole diameter are both 12.4 mm, with a 5-hole pattern and a bolt circle diameter of 114.3 mm, matching the factory specifications for Hyundai Kona, Kia Rondo, and Kia Soul models. The overall diameter of 284 mm and height of 45.3 mm ensure proper fitment and compatibility.

Compatible Vehicles and Common Applications

• Replacement rotor for Hyundai Kona brake systems
• Suitable for Kia Rondo brake rotor upgrades or replacements
• Compatible with Kia Soul models requiring drilled and slotted rotors
• Addresses issues such as brake fade, overheating, and uneven pad wear
• Helps reduce rust and corrosion on rotor hats with zinc silver coating

Installation Notes and Tips

When installing the Dynamite Friction 631-03059L rotor, ensure the rotor surface is clean and free of any protective coatings before mounting. Verify the bolt hole pattern and diameter match your vehicle’s hub assembly. Since this rotor is directional, confirm the orientation matches the vehicle’s rotation direction for optimal performance. It is recommended to replace brake pads simultaneously to maintain consistent braking efficiency.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor with rust-resistant coatings and precise machining to meet OEM specifications. While specific warranty details are not provided, the rotor is designed to meet industry standards for durability and performance on Hyundai and Kia vehicles. Always consult vehicle service manuals and follow recommended maintenance schedules for best results.
