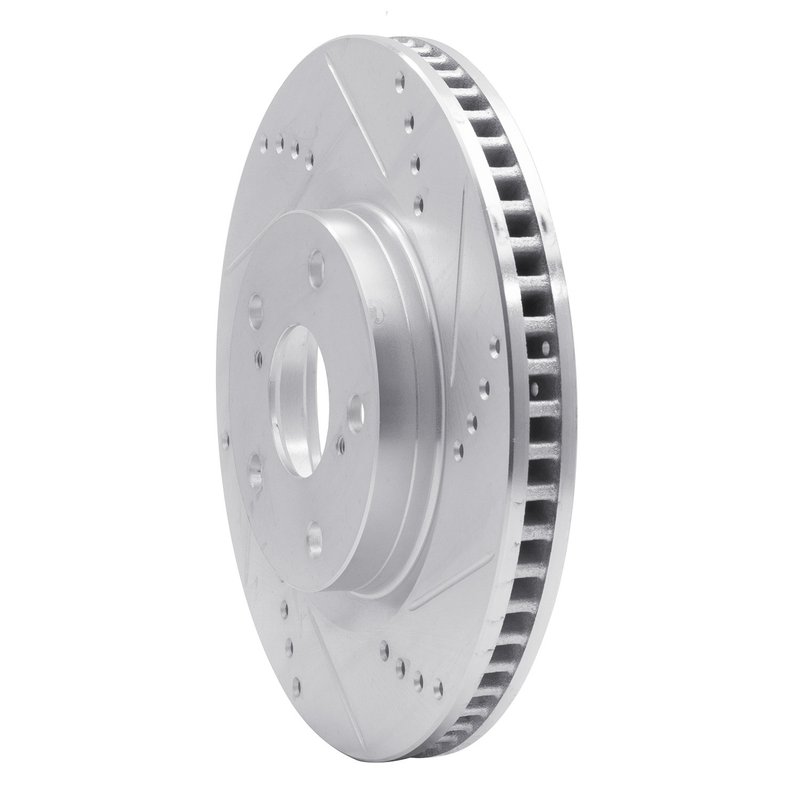

Dynamite Friction 631-13027R Disc Brake Rotor - Rear Right

Overview of the DFC Brake Rotor for Subaru Forester

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-13027R) is engineered specifically for Subaru Forester models. This vented disc brake rotor features a directional, slotted and drilled surface designed to enhance braking performance and heat dissipation under demanding conditions.

• Compatible with Subaru Forester vehicles
• Directional, slotted and drilled rotor surface
• Vented rotor design for improved cooling
• Nominal thickness of 18 mm with a discard thickness of 16 mm
• Zinc silver hat finish with rust-resistant coating
• Five bolt holes with 13 mm diameter and 100 mm bolt circle diameter
• Outside diameter of 278 mm and height of 63.3 mm
• Center hole diameter of 58 mm

Details on the DFC Brake Rotor - Drilled and Slotted - Silver Line

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction offers rotors designed with both drilled holes and slots to improve water, gas, and dust evacuation from the braking surface. This design helps maintain consistent braking performance and reduces brake fade. The zinc silver hat finish provides additional corrosion resistance, extending rotor life. This product line focuses on delivering reliable, vented rotors with directional braking surfaces tailored for specific vehicle fitments like the Subaru Forester.

Technical Specifications and Features

This disc brake rotor is vented to allow better airflow and heat dissipation, which is critical for maintaining braking efficiency during extended use. The rotor’s nominal thickness is 18 mm, with a discard thickness of 16 mm, ensuring a clear service limit for safety. The rotor surface is both drilled and slotted, which helps reduce brake fade and improve pad bite. The zinc silver hat finish and rust-resistant coating protect against corrosion, especially in harsh weather conditions. The rotor features five bolt holes with a 13 mm diameter and a 100 mm bolt circle diameter, matching Subaru Forester specifications precisely.

Applications and Problem Solving

• Replacement rotor for worn or warped Subaru Forester brake rotors
• Improves heat dissipation to reduce brake fade during heavy braking
• Helps maintain consistent braking performance in wet or dusty conditions
• Addresses rotor corrosion issues with rust-resistant coating
• Restores proper braking surface for improved pad contact and safety

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 16 mm before installation. Clean the rotor surface to remove any protective coating or debris before mounting. Verify bolt hole alignment with the Subaru Forester hub using the 5-bolt, 100 mm bolt circle pattern. Proper torque specifications should be followed to avoid rotor warping. Directional rotors must be installed with the correct rotation direction for optimal performance.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor to meet OEM specifications for fit and function on Subaru Forester models. The rust-resistant coating and zinc silver hat finish contribute to long-term durability. While specific warranty details are not provided, Dynamite Friction products typically adhere to industry standards for quality and reliability.
