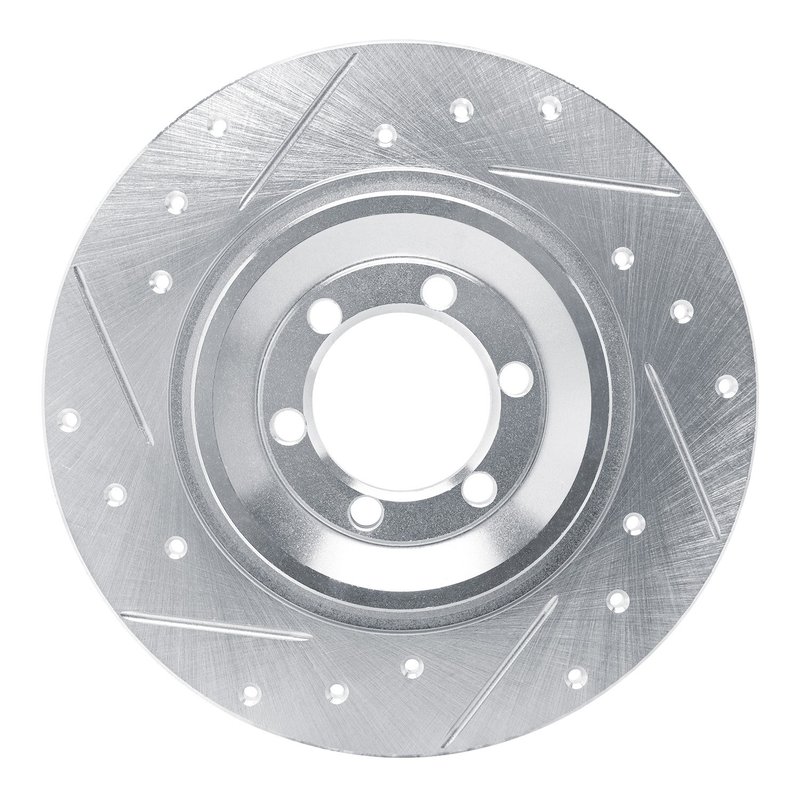

Dynamite Friction 631-16003L Disc Brake Rotor - Rear Left

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-16003L) is engineered for drivers seeking reliable braking performance with enhanced heat dissipation. Designed as a solid disc brake rotor, it features a directional, drilled and slotted surface to improve stopping power and reduce brake fade.

• Solid disc brake rotor with drilled and slotted surface
• Nominal thickness of 10 mm and discard thickness of 8 mm
• Directional brake surface for optimized braking efficiency
• Zinc silver hat finish with rust-resistant coating
• 6 bolt holes with 10.6 mm diameter and 80 mm bolt circle diameter
• Overall diameter of 250 mm and height of 20.7 mm
• Center hole diameter of 62 mm for precise fitment

Details on the DFC Brake Rotor - Drilled and Slotted - Silver Line

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction focuses on rotors that combine drilled holes and slots to enhance brake pad bite and heat dissipation. This product line is designed to reduce brake fade during demanding driving conditions by allowing gases and debris to escape more efficiently. The silver zinc coating on the rotor hat provides corrosion resistance, extending the rotor's service life.

Technical Specifications and Features

This rotor is a solid type, measuring 250 mm in outside diameter and 20.7 mm in overall height. The nominal thickness is 10 mm, with a discard thickness of 8 mm, indicating when replacement is necessary. The rotor includes six bolt holes, each 10.6 mm in diameter, arranged on an 80 mm bolt circle diameter, ensuring compatibility with vehicles requiring this bolt pattern. The directional surface type, featuring both drilled holes and slots, improves braking performance by enhancing pad contact and heat dissipation.

Applications and Problem Solving

• Reduces brake fade during heavy braking or towing
• Improves heat dissipation for consistent braking performance
• Helps prevent brake pad glazing and uneven wear
• Resists rust and corrosion for longer rotor life
• Compatible with vehicles requiring a 6-lug, 80 mm bolt circle rotor

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 8 mm before installation. Clean the rotor surface to remove any protective coating residue before mounting. Verify bolt hole alignment with the vehicle’s hub using the 6-bolt, 10.6 mm diameter holes on an 80 mm bolt circle. Directional rotors must be installed following the indicated rotation direction for optimal performance.

Quality Assurance

Dynamite Friction rotors are manufactured to meet industry standards for durability and performance. The zinc silver hat finish and rust-resistant coating help protect against corrosion. Please consult product documentation or manufacturer resources for warranty details specific to part number 631-16003L.
