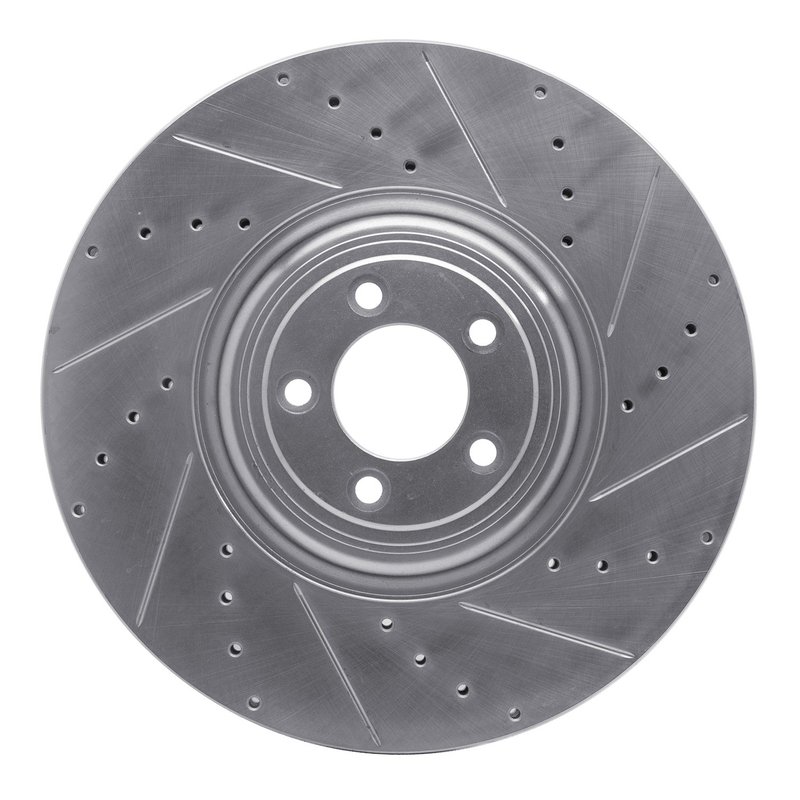

Dynamite Friction 631-20026R Disc Brake Rotor - Front Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-20026R) is engineered for precision braking performance. Designed specifically for Jaguar models including the F-Type, XF, XFR, XFR-S, XJ, XJR, XJR575, XKR, and XKR-S, this rotor offers reliable stopping power with enhanced heat dissipation.

• Disc type: Vented disc brake rotor with drilled and slotted surface
• Nominal thickness: 35.8 mm with discard thickness at 34 mm
• Overall diameter: 380 mm with 48 mm height
• Bolt hole quantity: 5 with 14 mm diameter, bolt circle diameter 108 mm
• Center hole diameter: 71 mm
• Rust resistant zinc silver hat finish and plain disc finish
• Directional brake surface for optimized performance

Detailed Product Features and Specifications

This Dynamite Friction rotor features a vented design that improves airflow to reduce heat buildup during braking, which helps maintain consistent performance and reduces the risk of brake fade. The drilled and slotted surface enhances water and debris evacuation, improving wet weather braking and pad bite. The rotor’s directional surface pattern is engineered to optimize braking efficiency and pad contact. The zinc silver coating on the hat provides corrosion resistance, extending the rotor’s service life. With a bolt hole pattern of 5 holes at 14 mm diameter and a bolt circle diameter of 108 mm, this rotor is designed to fit securely on compatible Jaguar models.

DFC Brake Rotor - Drilled and Slotted - Silver Product Line

The DFC Brake Rotor - Drilled and Slotted - Silver line from Dynamite Friction focuses on rotors that combine drilled holes and slots for improved heat dissipation and debris removal. This product line is tailored for drivers seeking rotors that maintain braking performance under demanding conditions, such as spirited driving or heavy use, while providing corrosion resistance and durability.

Applications and Problem Solving

• Improves braking performance on Jaguar F-Type, XF, XFR, and related models
• Reduces brake fade caused by excessive heat buildup
• Enhances wet weather braking by channeling water away from the rotor surface
• Minimizes rust and corrosion with zinc silver coating on the rotor hat
• Maintains consistent pad contact with directional drilled and slotted design

Installation Notes and Tips

Ensure the rotor is installed on compatible Jaguar models listed for part number 631-20026R. Verify bolt hole alignment with the 5-lug, 108 mm bolt circle diameter pattern. Clean the rotor surface before installation to remove any protective coatings or residues. Proper torque specifications should be followed to secure the rotor and avoid warping. It is recommended to inspect brake pads and related components during installation for optimal performance.

Quality Assurance and Warranty

Dynamite Friction manufactures the 631-20026R rotor to meet industry standards for durability and performance. The rust-resistant coating and vented design contribute to long service life. Warranty details should be confirmed with the product documentation or supplier, as they may vary by region or distributor.
