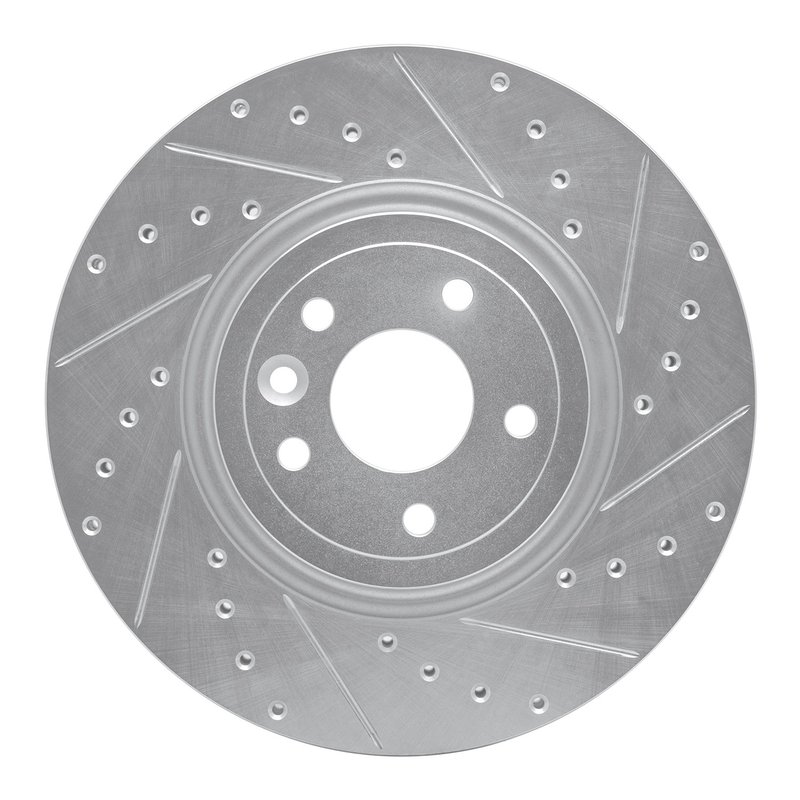

Dynamite Friction 631-20031R Disc Brake Rotor - Front Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-20031R) is engineered for Jaguar XE and XF models. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance braking performance and heat dissipation.

• Compatible with Jaguar XE and XF models
• Vented disc brake rotor with drilled and slotted surface
• Nominal thickness: 30 mm; discard thickness: 28 mm
• Outside diameter: 325 mm; height: 48.2 mm
• 5 bolt holes with 13.7 mm diameter and 108 mm bolt circle diameter
• Center hole diameter: 63.5 mm
• Plain disc finish with zinc silver hat finish and rust-resistant coating
• Directional brake surface for optimized performance

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Silver

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction offers rotors designed with enhanced cooling and improved braking response. The drilled and slotted surface pattern helps reduce brake fade by allowing gases and debris to escape, while the vented rotor design promotes better heat dissipation. The zinc silver hat finish provides corrosion resistance, extending rotor life especially in environments prone to rust.

Technical Specifications and Features

This disc brake rotor is vented to improve airflow and reduce heat buildup during braking. The directional slotted and drilled surface enhances water and dust evacuation, maintaining consistent braking performance. With a nominal thickness of 30 mm and a discard thickness of 28 mm, this rotor ensures reliable service life and safety. The rotor’s 5-bolt hole pattern with a 108 mm bolt circle diameter and 13.7 mm bolt hole diameter matches the factory specifications for Jaguar XE and XF models. The zinc silver hat finish combined with a rust-resistant coating helps protect against corrosion, maintaining structural integrity over time.

Applications and Problem Solving

• Replacement rotor for worn or warped brake rotors on Jaguar XE and XF
• Improves braking performance by reducing heat and brake fade
• Helps prevent rust and corrosion on braking components
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Maintains consistent braking under wet or dusty conditions with slotted and drilled design

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the bolt hole pattern and center hole diameter match your vehicle’s hub. Use proper torque specifications for the 5 lug bolts to avoid rotor warping. It is recommended to replace brake pads simultaneously to ensure optimal braking performance. Directional rotors must be installed following the indicated rotation direction for correct operation.

Quality Assurance

Dynamite Friction rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The rust-resistant coating and zinc silver hat finish contribute to durability and corrosion resistance. While no specific warranty information is provided, these rotors are designed for reliable performance on Jaguar XE and XF vehicles when installed and maintained properly.
