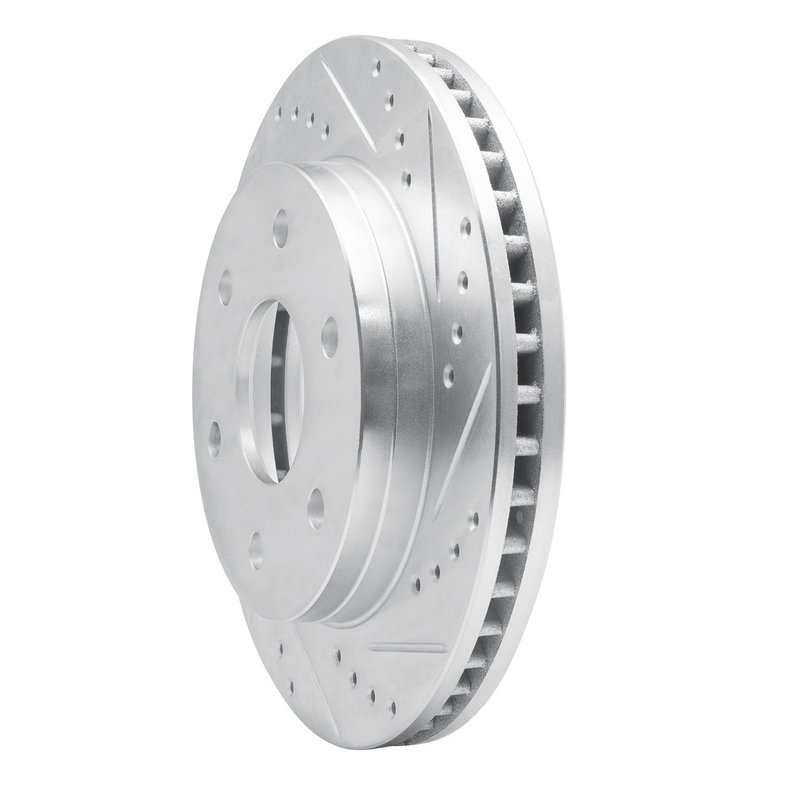

Dynamite Friction 631-40068R Disc Brake Rotor - Front Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-40068R) is engineered for reliable braking performance on Dodge Dakota models. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance heat dissipation and maintain consistent stopping power under demanding conditions.

• Compatible with Dodge Dakota vehicles
• Part Number: 631-40068R
• Vented disc brake rotor with drilled and slotted surface
• Nominal thickness of 24 mm and discard thickness of 22.6 mm
• Directional brake surface for optimized performance
• Rust-resistant zinc silver hat finish
• 6 bolt holes with 1/2-20 diameter and 114.3 mm bolt circle diameter
• Overall diameter of 287 mm and height of 110.8 mm

About the DFC Brake Rotor - Drilled and Slotted - Silver Line

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction is designed to provide enhanced braking efficiency through a combination of drilled holes and precision slots. This design improves heat dissipation and helps reduce brake fade, making it suitable for drivers who require consistent braking performance. The zinc silver coating on the rotor hat offers additional corrosion resistance, extending the rotor's service life.

Detailed Product Description

This Dynamite Friction disc brake rotor is a vented type, which allows air to flow between the rotor surfaces to help dissipate heat more effectively during braking. The rotor's surface is both drilled and slotted, which aids in removing brake dust, gases, and water from the contact area, improving pad bite and overall braking response. The directional surface design ensures that the rotor is installed correctly for optimal performance. With a nominal thickness of 24 mm and a discard thickness of 22.6 mm, this rotor maintains structural integrity and safety standards throughout its service life. The zinc silver finish on the rotor hat provides rust resistance, helping to maintain the rotor's appearance and function over time.

Applications and Problem Solving

• Replacement rotor for worn or warped brake rotors on Dodge Dakota
• Improves heat dissipation to reduce brake fade during heavy braking
• Helps eliminate brake noise and vibration caused by uneven rotor surfaces
• Maintains braking performance in wet conditions by channeling water away
• Prevents rust and corrosion on rotor hat for longer durability

Installation Notes and Tips

Ensure the rotor is installed with the directional surface facing the correct rotation direction as indicated. Verify that the rotor thickness is above the discard thickness of 22.6 mm before installation. Use the correct torque specifications for the 6 bolt holes (1/2-20 diameter) to secure the rotor properly. Clean the rotor surface before installation to remove any protective coatings or debris that could affect braking performance.

Quality Assurance

Dynamite Friction manufactures this rotor to meet or exceed OEM specifications for fitment and performance on Dodge Dakota models. The rust-resistant zinc silver coating and vented design contribute to the rotor's durability and consistent braking capability. Warranty information is not specified for this part number 631-40068R; please consult the manufacturer or distributor for details.
