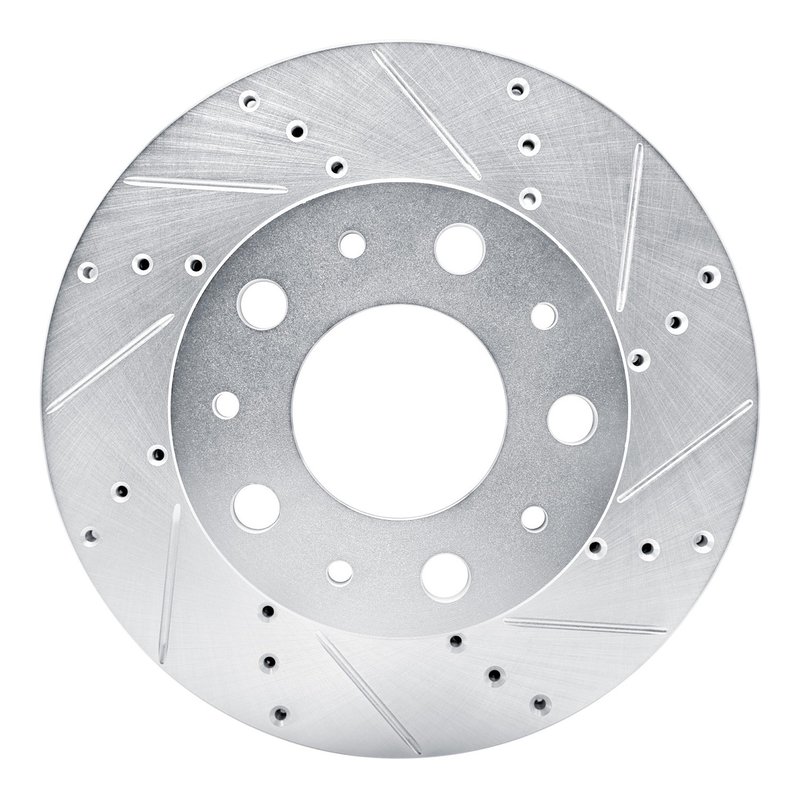

Dynamite Friction 631-40114R Disc Brake Rotor - Front Right

Overview of the DFC Brake Rotor - Drilled and Slotted - Silver

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver is engineered for reliable braking performance on Ram ProMaster 1500, 2500, and 3500 models. Designed with vented construction and a directional surface, this rotor balances heat dissipation and consistent stopping power.

• Part Number: 631-40114R
• Compatible with Ram ProMaster 1500, 2500, and 3500
• Vented disc brake rotor with drilled and slotted surface
• Nominal thickness: 32 mm; discard thickness: 30 mm
• Outside diameter: 300 mm; height: 73.5 mm
• Directional brake surface for optimized performance
• Rust resistant zinc silver hat finish with plain disc finish
• 5 bolt holes with 17.7 mm diameter and 130 mm bolt circle diameter

Features of the DFC Brake Rotor - Drilled and Slotted - Silver

The DFC Brake Rotor - Drilled and Slotted - Silver is part of Dynamite Friction’s DFC product line, which focuses on enhanced braking efficiency through advanced rotor designs. This rotor features a vented construction that improves heat dissipation during braking, reducing the risk of brake fade. The drilled and slotted surface helps evacuate gases, dust, and water, maintaining consistent contact between the brake pad and rotor.

Technical Specifications and Design Details

This disc brake rotor has a nominal thickness of 32 mm and a discard thickness of 30 mm, ensuring a long service life before replacement is necessary. The rotor’s outside diameter measures 300 mm, with a height of 73.5 mm, making it suitable for the specified Ram ProMaster models. The rotor is vented to allow airflow through the rotor, which helps maintain optimal operating temperatures. The directional slotted and drilled surface is designed to improve braking performance under various driving conditions.

Compatible Vehicles and Applications

• Replacement rotor for Ram ProMaster 1500
• Replacement rotor for Ram ProMaster 2500
• Replacement rotor for Ram ProMaster 3500
• Ideal for addressing brake fade and overheating issues
• Helps reduce brake noise and improve pad bite

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 30 mm before installation. The rotor features 5 bolt holes with a bolt circle diameter of 130 mm and a bolt hole diameter of 17.7 mm, matching the factory specifications for Ram ProMaster models. The zinc silver hat finish provides rust resistance, but it is recommended to clean the rotor surface before installation to remove any protective coatings or residues.

Quality Assurance and Warranty

Dynamite Friction manufactures the DFC Brake Rotor - Drilled and Slotted - Silver to meet or exceed OEM standards for fit and function. The rust resistant coating and vented design contribute to durability and consistent braking performance. Please refer to Dynamite Friction’s warranty policy for specific coverage details related to this rotor.
