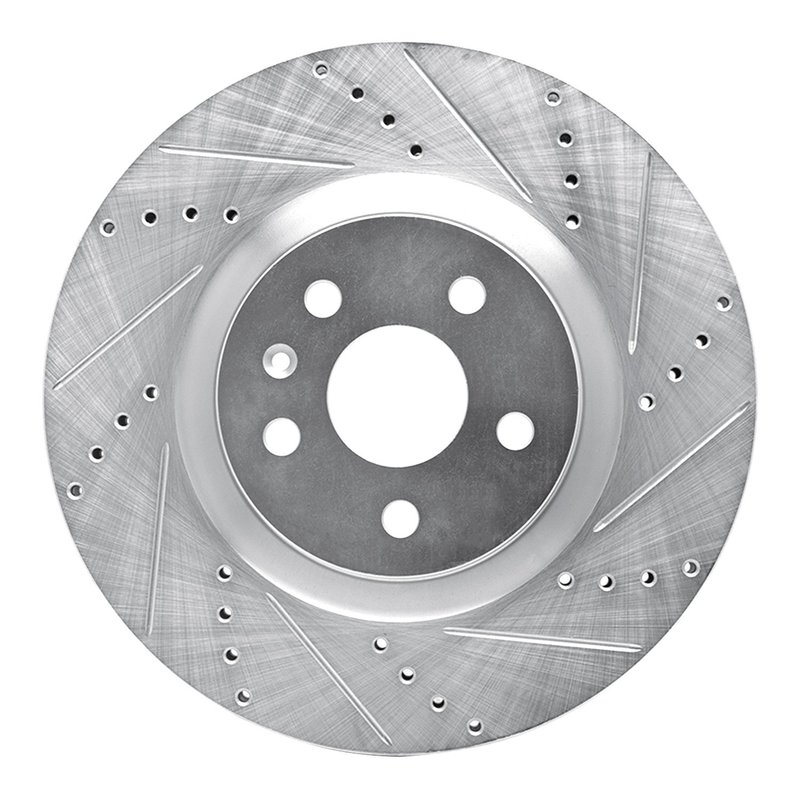

Dynamite Friction 631-45017R Disc Brake Rotor - Front Right

Overview of the DFC Brake Rotor - Drilled and Slotted - Silver

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver offers reliable braking performance for select Buick, Chevrolet, and Pontiac models. Designed with vented construction and a directional surface, this rotor balances heat dissipation and stopping power for vehicles like the Camaro, G8, Regal, and SS.

• Part Number: 631-45017R
• Disc Type: Vented, drilled and slotted surface
• Nominal Thickness: 32 mm with a discard thickness of 30 mm
• Outside Diameter: 355 mm
• Bolt Hole Quantity: 5 with 16.2 mm diameter
• Hat Finish: Zinc silver coating for corrosion resistance
• Rust Resistant Coating: Yes
• Directional brake surface for optimized performance
• Bolt Circle Diameter: 120 mm

Details on the DFC Brake Rotor - Drilled and Slotted - Silver Line

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction is engineered to provide enhanced braking through a combination of drilled holes and slots on the rotor surface. This design improves heat dissipation and helps evacuate brake dust and gases, reducing brake fade during demanding driving conditions. The silver zinc coating on the rotor hat adds rust resistance, extending the rotor's service life. This rotor is directional, meaning it must be installed in the correct orientation to maximize performance and durability.

Technical Specifications and Features

This disc brake rotor features a vented design with an overall height of 49.7 mm and a center hole diameter of 67.4 mm. The rotor’s nominal thickness is 32 mm, with a discard thickness of 30 mm, ensuring clear service limits for safe operation. The drilled and slotted surface type enhances braking efficiency by improving friction and cooling. The rotor includes five bolt holes with a diameter of 16.2 mm arranged on a 120 mm bolt circle diameter, compatible with the specified vehicle models.

Compatible Vehicles and Applications

• Buick Regal
• Chevrolet Camaro
• Chevrolet SS
• Pontiac G8

This rotor is designed specifically for these models, ensuring proper fitment and performance when replacing worn or damaged rotors.

Common Issues Addressed by This Rotor

• Brake fade caused by overheating during aggressive driving
• Uneven rotor wear leading to vibration or noise
• Corrosion and rust buildup on rotor surfaces
• Reduced braking efficiency due to brake dust accumulation
• Warped rotors causing pedal pulsation

Installation Notes and Tips

Ensure the rotor is installed with the directional surface oriented correctly according to the vehicle’s rotation. Verify bolt hole alignment with the hub and torque lug nuts to manufacturer specifications. It is recommended to replace brake pads when installing new rotors to maintain optimal braking performance. Clean the rotor surface of any protective coatings or oils before installation.

Quality Assurance and Warranty

Dynamite Friction manufactures the 631-45017R rotor to meet or exceed OEM standards for durability and performance. The rust-resistant zinc silver hat finish and vented rotor design contribute to long service life. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
