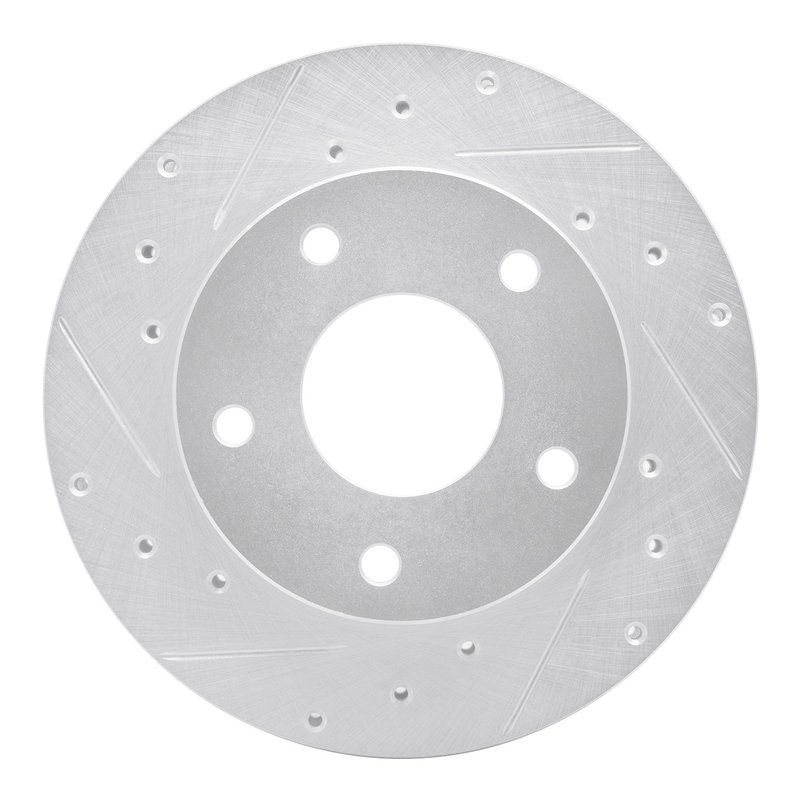

Dynamite Friction 631-47014L Disc Brake Rotor - Rear Left

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-47014L) is engineered for reliable braking performance on Chevrolet Camaro and Pontiac Firebird models. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance heat dissipation and maintain consistent stopping power.

• Nominal thickness: 26.29 mm with a discard thickness of 24.3 mm
• Vented rotor design for improved cooling
• Directional slotted and drilled surface for debris removal and heat management
• Zinc silver hat finish with rust-resistant coating
• 5 bolt holes with 13 mm diameter and 120.7 mm bolt circle diameter
• Overall diameter of 267 mm and height of 61.1 mm
• Center hole diameter of 70.7 mm for precise fitment

Details on the DFC Brake Rotor - Drilled and Slotted - Silver Line

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction focuses on rotors that combine drilled holes and slots to improve braking efficiency and rotor longevity. This product line is designed to provide enhanced heat dissipation and reduce brake fade, making it suitable for performance-oriented vehicles like the Chevrolet Camaro and Pontiac Firebird. The silver zinc coating on the rotor hat offers additional corrosion resistance, extending the rotor's service life.

Technical Description and Specifications

This disc brake rotor is vented, allowing air to flow between the rotor surfaces to reduce heat buildup during braking. The directional slotted and drilled surface helps channel away water, dust, and gases, improving brake pad contact and performance. The rotor's nominal thickness is 26.29 mm, with a discard thickness of 24.3 mm, ensuring safe replacement intervals. The rotor features a plain disc finish and a zinc silver hat finish that resists rust and corrosion. With 5 bolt holes sized at 13 mm diameter and a bolt circle diameter of 120.7 mm, this rotor is designed for precise fitment on compatible vehicles.

Compatible Vehicles and Common Applications

• Replacement rotor for Chevrolet Camaro models requiring a 267 mm diameter vented rotor
• Suitable for Pontiac Firebird vehicles needing a drilled and slotted disc brake rotor
• Addresses issues such as brake fade during aggressive driving
• Helps reduce rotor warping caused by excessive heat
• Improves braking response in wet or dusty conditions

Installation Notes and Tips

Ensure the rotor is installed on vehicles with a 5-lug bolt pattern and 120.7 mm bolt circle diameter. Verify the rotor thickness before installation; replace if below the discard thickness of 24.3 mm. Clean the rotor surface to remove any protective coatings or debris before mounting. Proper torque specifications should be followed for the 13 mm lug bolts to ensure secure fitment. This rotor is directional, so install with the correct orientation for optimal performance.

Quality Assurance and Warranty

Dynamite Friction manufactures the 631-47014L rotor to meet or exceed OEM specifications for Chevrolet Camaro and Pontiac Firebird applications. The rust-resistant zinc silver coating on the rotor hat enhances durability against corrosion. While specific warranty details are not provided, Dynamite Friction products typically undergo rigorous quality control to ensure consistent performance and reliability.
