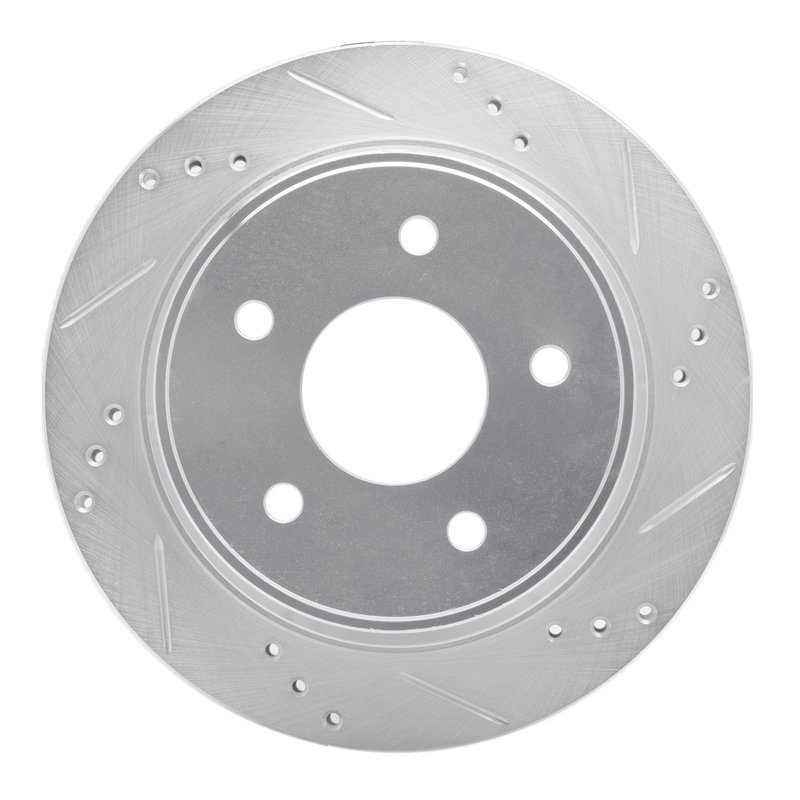

Dynamite Friction 631-48032R Disc Brake Rotor - Rear Right

Overview of the DFC Brake Rotor - Drilled and Slotted - Silver

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-48032R) is engineered for reliable braking performance on select Chevrolet, GMC, Isuzu, and Oldsmobile trucks and SUVs. Designed with a vented, directional surface, this rotor enhances heat dissipation and braking consistency for vehicles like the Chevrolet Blazer and GMC Jimmy.

• Disc type: Vented, directional drilled and slotted surface
• Outside diameter: 295 mm with 5 lug holes (13.3 mm diameter)
• Nominal thickness: 20 mm; discard thickness: 18.5 mm
• Hat finish: Zinc silver coating for corrosion resistance
• Rust resistant coating applied for extended durability
• Bolt circle diameter: 120.6 mm; center hole diameter: 70.7 mm
• Compatible with Chevrolet Blazer, GMC Jimmy, Isuzu Hombre, Oldsmobile Bravada, and S10/Sonoma models

Details on the DFC Brake Rotor - Drilled and Slotted - Silver Line

The DFC Brake Rotor - Drilled and Slotted - Silver line from Dynamite Friction focuses on rotors that combine drilled holes and slots to improve brake pad bite and heat dissipation. The silver zinc coating on the rotor hat enhances corrosion resistance, while the vented design helps maintain optimal operating temperatures. This product line is tailored for drivers seeking rotors that balance performance and durability on light trucks and SUVs.

Technical Specifications and Features

This disc brake rotor features a 295 mm outside diameter and a nominal thickness of 20 mm, with a discard thickness of 18.5 mm to indicate when replacement is necessary. The rotor is vented to allow air flow between the braking surfaces, reducing heat buildup during heavy braking. The directional drilled and slotted surface improves water and debris evacuation, enhancing braking performance in various conditions. The zinc silver hat finish and rust-resistant coating protect against corrosion, extending rotor life. It includes five bolt holes with a 13.3 mm diameter and a bolt circle diameter of 120.6 mm, matching the lug pattern of compatible vehicles.

Compatible Vehicles and Applications

• Chevrolet Blazer
• GMC Jimmy
• Isuzu Hombre
• Oldsmobile Bravada
• Chevrolet S10 and GMC Sonoma

This rotor is designed for use in disc brake systems on these models, providing consistent stopping power and improved heat management.

Common Issues Addressed by This Rotor

• Brake fade caused by excessive heat buildup
• Uneven brake pad wear due to poor rotor surface design
• Corrosion and rust on rotor surfaces reducing lifespan
• Reduced braking efficiency in wet or debris-prone environments
• Vibration or noise from warped or damaged rotors

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 18.5 mm before installation. Clean the rotor surface to remove any protective coatings or debris. Verify bolt hole alignment with the vehicle’s hub and torque lug nuts to manufacturer specifications. It is recommended to replace brake pads when installing new rotors to ensure optimal performance. Directional rotors must be installed with the correct rotation direction as indicated on the rotor surface.

Quality Assurance and Warranty

Dynamite Friction manufactures the 631-48032R rotor to meet or exceed OEM specifications for fit, form, and function. The rust-resistant coating and zinc silver hat finish contribute to long-term durability. Warranty details should be confirmed with the product documentation or supplier, as coverage may vary.
