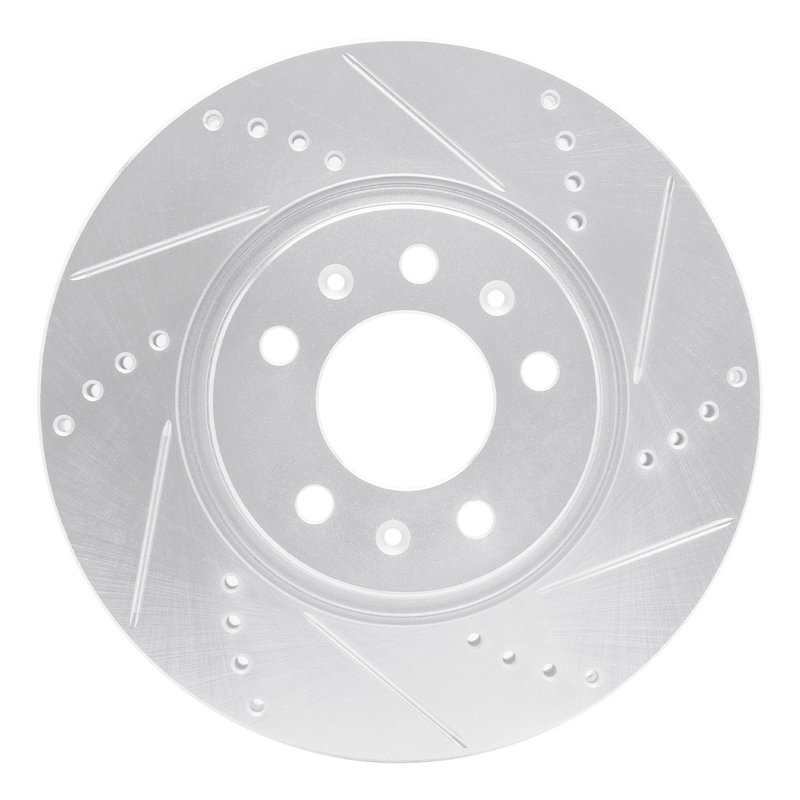

Dynamite Friction 631-53005R Disc Brake Rotor - Front Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-53005R) is engineered for reliable braking performance on Pontiac Sky and Saturn Solstice models. This vented disc brake rotor features a directional, slotted and drilled surface designed to enhance heat dissipation and maintain consistent stopping power.

• Compatible with Pontiac Sky and Saturn Solstice vehicles
• Directional slotted and drilled surface for improved brake cooling
• Vented rotor design to reduce heat buildup
• Zinc silver hat finish with rust-resistant coating
• Nominal thickness of 26 mm and discard thickness of 23 mm
• Five bolt holes with 14.2 mm diameter and 110.2 mm bolt circle diameter
• Overall diameter of 296 mm and height of 43.2 mm

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Silver

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction focuses on rotors that combine drilled holes and precision slots to optimize brake pad contact and heat dissipation. This product line is designed to provide consistent braking performance under demanding conditions, making it suitable for vehicles like the Pontiac Sky and Saturn Solstice that require reliable stopping power and rotor durability.

Technical Specifications and Features

This disc brake rotor is vented to allow air circulation between the rotor surfaces, which helps prevent overheating during extended braking. The directional slotted and drilled surface improves water and debris evacuation, reducing brake fade and maintaining pad bite. The rotor’s zinc silver hat finish includes a rust-resistant coating to protect against corrosion, extending the rotor’s service life. With a nominal thickness of 26 mm and a discard thickness of 23 mm, this rotor meets precise wear limits for safe operation. The five bolt holes, each 14.2 mm in diameter, fit a bolt circle diameter of 110.2 mm, ensuring proper fitment on compatible vehicles.

Applications and Problem Solving

• Replaces worn or warped rotors on Pontiac Sky and Saturn Solstice models
• Addresses brake fade caused by excessive heat buildup
• Improves braking performance in wet or debris-prone conditions
• Prevents rust and corrosion on rotor surfaces
• Maintains consistent brake pad contact and reduces noise

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 23 mm before installation. Clean the rotor surface to remove any protective coatings or contaminants prior to mounting. Verify bolt hole alignment with the vehicle’s hub using the 110.2 mm bolt circle diameter and 14.2 mm bolt hole diameter. Proper torque specifications should be followed to avoid rotor warping. This rotor is directional; install with the correct orientation to maximize performance.

Quality Assurance

Dynamite Friction manufactures this rotor to meet industry standards for durability and performance. The rust-resistant coating and zinc silver hat finish contribute to long-term reliability. While no specific warranty information is provided, the rotor’s design and materials support consistent braking function for Pontiac Sky and Saturn Solstice vehicles when installed and maintained properly.
