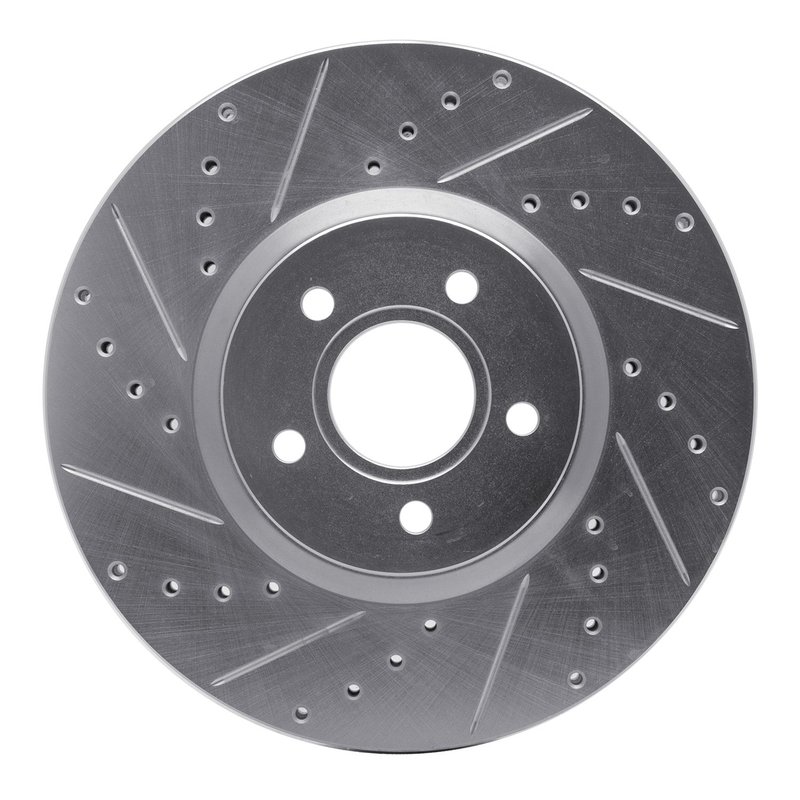

Dynamite Friction 631-54070L Disc Brake Rotor - Front Left

Overview of DFC Brake Rotor - Drilled and Slotted - Silver

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-54070L) is engineered for reliable braking performance on select Ford, Lincoln, and Volvo vehicles. Designed with a vented, directional surface, this rotor enhances heat dissipation and braking consistency for models like the Ford Escape, Lincoln MKC, and Volvo S40.

• Vented disc brake rotor with drilled and slotted surface
• Nominal thickness of 25 mm and discard thickness of 23 mm
• Directional braking surface for optimized performance
• Zinc silver hat finish with rust-resistant coating
• Compatible with 5-bolt hole pattern and 108 mm bolt circle diameter
• Outside diameter of 320 mm and overall height of 49 mm

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Silver

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction focuses on rotors that combine drilled holes and slots to improve brake pad bite and aid in heat and gas dissipation. This rotor features a plain disc finish with a zinc silver hat finish that provides corrosion resistance, extending rotor life. The vented design further supports cooling during heavy braking conditions, making it suitable for daily driving and moderate performance needs.

Technical Specifications and Features

This disc brake rotor is vented and directional, with a surface type that is both slotted and drilled to enhance braking efficiency. It has a nominal thickness of 25 mm and a discard thickness of 23 mm, ensuring safe replacement intervals. The rotor includes five bolt holes with a diameter of 13.8 mm and a bolt circle diameter of 108 mm, matching the stud/lug hole pattern for secure fitment. The overall height and height are both 49 mm, with a center hole diameter of 63.6 mm. The zinc silver hat finish and rust-resistant coating help protect against corrosion, maintaining rotor integrity over time.

Compatible Vehicles and Applications

• Ford Escape
• Ford Focus
• Ford Transit Connect
• Lincoln MKC
• Volvo C70
• Volvo S40
• Volvo V50

This rotor is designed specifically for these models, ensuring proper fit and function when replacing worn or damaged rotors.

Common Issues Addressed by This Rotor

• Brake fade caused by overheating during extended braking
• Uneven brake pad wear due to poor heat dissipation
• Corrosion and rust buildup on rotor surfaces
• Vibration or pulsation during braking from warped rotors
• Reduced braking performance from glazed or scored rotors

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 23 mm before installation. Clean the rotor surface to remove any protective coatings or contaminants. Verify the 5-bolt hole pattern and 108 mm bolt circle diameter match your vehicle’s hub assembly. Properly torque lug nuts to manufacturer specifications to avoid rotor warping. Directional rotors must be installed with the correct rotation direction for optimal performance.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor with rust-resistant coatings and zinc silver hat finish to enhance durability. While specific warranty details are not provided, the rotor meets industry standards for thickness and fitment, ensuring reliable braking performance when installed correctly on compatible Ford, Lincoln, and Volvo models.
