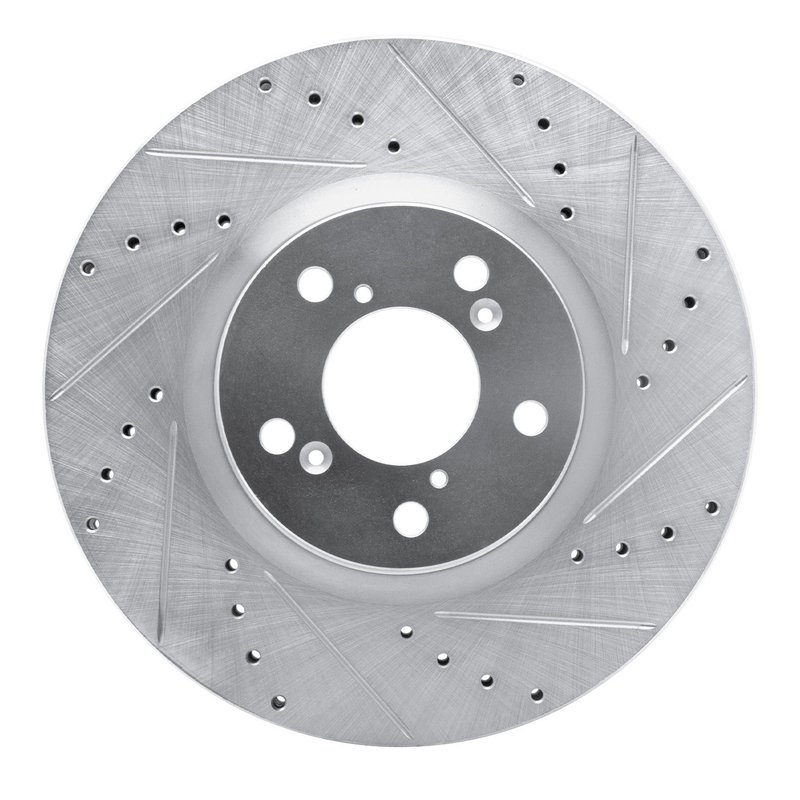

Dynamite Friction 631-59053R Disc Brake Rotor - Front Right

Overview of DFC Brake Rotor - Drilled and Slotted - Silver

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-59053R) is engineered for Acura and Honda vehicles, including the MDX, Pilot, RLX, and ZDX models. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance braking performance and heat dissipation.

• Compatible with Acura MDX, Pilot, RLX, and ZDX
• Part number: 631-59053R
• Vented disc brake rotor with drilled and slotted surface
• Nominal thickness: 28 mm; discard thickness: 26 mm
• Overall diameter: 330 mm; height: 47.3 mm
• Rust-resistant zinc silver hat finish with plain disc finish
• 5 bolt holes with 120 mm bolt circle diameter
• Directional brake surface for optimized performance

Detailed Product Features and Specifications

The DFC Brake Rotor - Drilled and Slotted - Silver is designed with a vented rotor type to improve heat dissipation during braking, reducing the risk of brake fade. The rotor's surface combines drilled holes and slots, which help evacuate gases, dust, and water, maintaining consistent braking performance under various conditions. The rotor has a nominal thickness of 28 mm and a discard thickness of 26 mm, ensuring durability and safety over its service life.

The rotor's overall diameter measures 330 mm with a height of 47.3 mm, fitting precisely on compatible Acura and Honda models. The zinc silver coating on the hat provides rust resistance, extending the rotor's lifespan. The rotor features five bolt holes with a 120 mm bolt circle diameter and a center hole diameter of 70.1 mm, matching OEM specifications for proper fitment.

About the DFC Brake Rotor - Drilled and Slotted - Silver Product Line

The DFC Brake Rotor - Drilled and Slotted - Silver line from Dynamite Friction focuses on delivering rotors with enhanced heat management and surface design. The drilled and slotted pattern is directional, which means it is optimized for specific rotation direction to maximize braking efficiency and rotor longevity. This product line is suitable for drivers seeking reliable replacement rotors that maintain consistent braking performance on Acura and Honda vehicles.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Acura MDX, Pilot, RLX, and ZDX
• Improves heat dissipation to reduce brake fade during heavy braking
• Helps prevent brake pad glazing by evacuating dust and gases
• Addresses rotor corrosion with rust-resistant zinc silver coating
• Restores braking performance affected by rotor surface damage

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness (26 mm) before installation
• Verify correct rotor orientation due to directional surface design
• Clean rotor surface before installation to remove any protective coatings
• Torque lug nuts to manufacturer specifications for Acura and Honda models
• Inspect brake pads and hardware during rotor replacement for optimal results

Quality Assurance and Warranty

Dynamite Friction manufactures the 631-59053R rotor to meet or exceed OEM standards for fit, form, and function. The rust-resistant zinc silver coating helps protect against corrosion, contributing to the rotor's durability. While specific warranty details are not provided, Dynamite Friction products typically come with manufacturer-backed quality assurance to ensure reliable performance on Acura and Honda vehicles.
