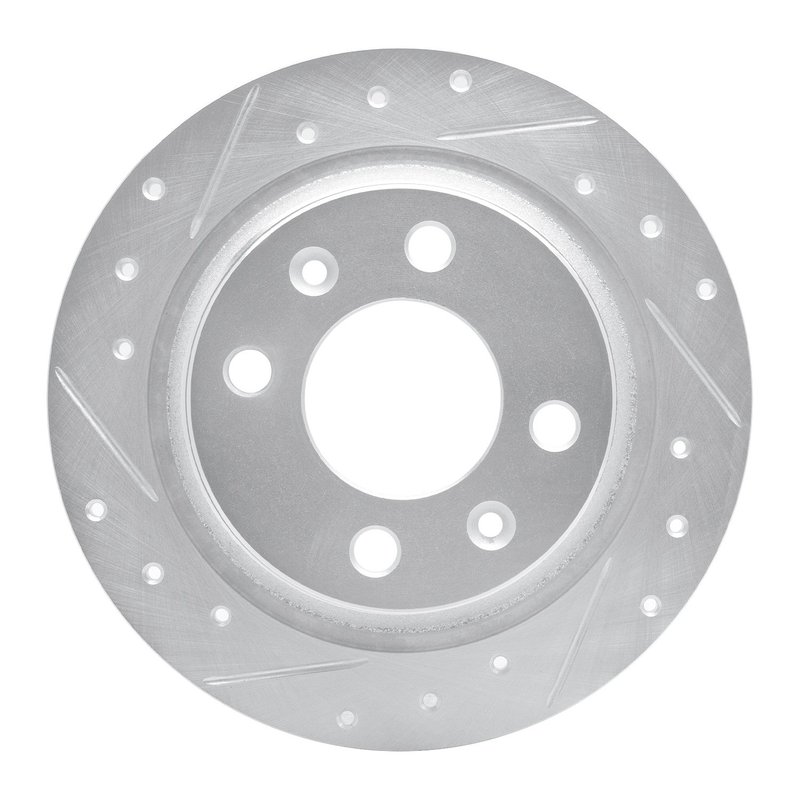

Dynamite Friction 631-65006L Disc Brake Rotor - Rear Left

Overview of the DFC Brake Rotor - Drilled and Slotted - Silver

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver offers reliable braking performance for Saab 900 and 9000 models. Designed with a solid, directional surface, this rotor balances heat dissipation and durability for consistent stopping power.

• Part Number: 631-65006L
• Compatible with Saab 900 and 9000 models
• Solid disc brake rotor with drilled and slotted surface
• Rust resistant zinc silver hat finish
• Directional brake surface for optimized performance
• 4 bolt holes with 108mm bolt circle diameter
• Nominal thickness of 9mm and discard thickness of 7.5mm
• Overall diameter of 258mm and height of 43.5mm

Detailed Product Features and Specifications

This Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-65006L) is engineered as a solid rotor with a directional surface featuring both drilled holes and slots. The drilled and slotted design helps improve heat dissipation and reduces brake fade during demanding driving conditions. The rotor’s nominal thickness is 9mm, with a discard thickness of 7.5mm, ensuring a clear service life indicator for replacement. The rotor’s hat is finished in a zinc silver coating that provides rust resistance, extending the rotor’s durability against corrosion.

The rotor measures 258mm in outside diameter and 43.5mm in overall height, with a center hole diameter of 68mm. It features 4 bolt holes and stud/lug holes, both with a 108mm bolt circle diameter, designed specifically for Saab 900 and 9000 brake systems. The surface type is directional, which means it is optimized for rotation in one direction to maximize braking efficiency and pad contact.

About the DFC Brake Rotor - Drilled and Slotted - Silver Product Line

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction focuses on rotors that combine drilled holes and slots to enhance braking performance and rotor longevity. This product line is designed to provide improved heat dissipation and debris removal compared to plain rotors, making it suitable for drivers who require reliable braking under varied conditions. The silver zinc coating on the rotor hat adds an extra layer of protection against rust, which is important for maintaining rotor integrity over time.

Applications and Problem Solving

• Compatible with Saab 900 and 9000 models requiring solid disc brake rotors
• Helps reduce brake fade caused by overheating during extended braking
• Improves water and debris evacuation from the rotor surface for consistent braking
• Addresses rotor corrosion issues with rust resistant coating
• Provides clear thickness specifications to aid in maintenance scheduling

Installation Notes and Tips

When installing the Dynamite Friction 631-65006L rotor, ensure the rotor is mounted with the directional surface oriented correctly according to the vehicle’s rotation. Verify that the bolt holes align with the 108mm bolt circle diameter on the Saab 900 or 9000 hub. Check rotor thickness before installation to confirm it meets or exceeds the nominal thickness of 9mm and is above the discard thickness of 7.5mm. Proper torque specifications should be followed to avoid warping or uneven wear.

Quality Assurance and Warranty

Dynamite Friction manufactures the DFC Brake Rotor - Drilled and Slotted - Silver to meet industry standards for durability and performance. The rust resistant zinc silver finish helps extend rotor life by protecting against corrosion. While specific warranty details are not provided, Dynamite Friction products typically adhere to quality control processes to ensure consistent product reliability for Saab 900 and 9000 brake applications.
