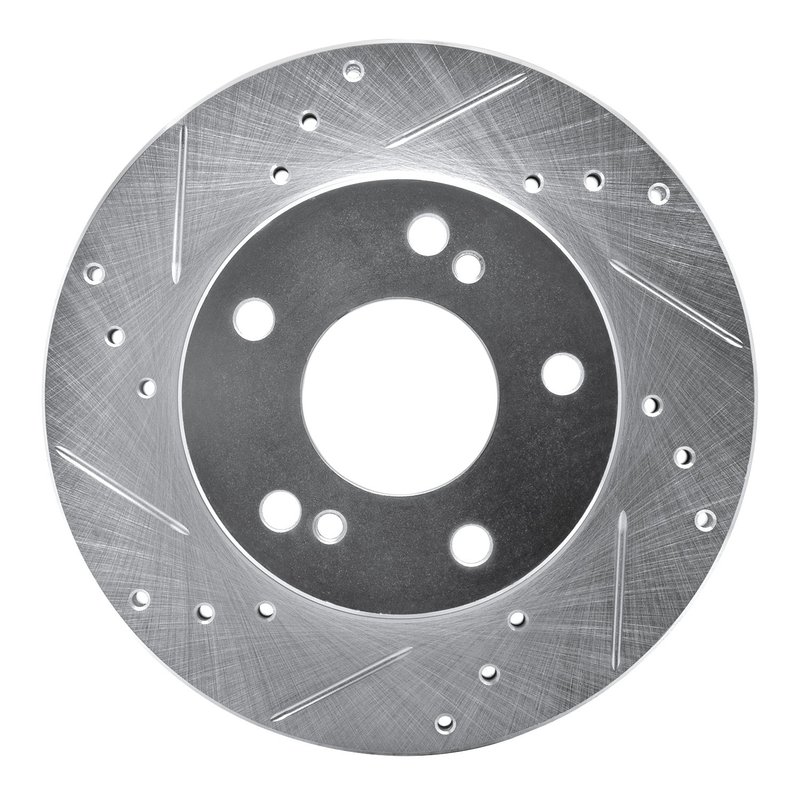

Dynamite Friction 631-67047L Disc Brake Rotor - Front Left

Overview of the DFC Brake Rotor for Nissan 240SX

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-67047L) is engineered specifically for Nissan 240SX models. This vented disc brake rotor features a directional, slotted and drilled surface designed to enhance braking performance and heat dissipation under demanding conditions.

• Compatible with Nissan 240SX vehicles
• Part Number: 631-67047L
• Vented disc brake rotor with drilled and slotted surface
• Nominal thickness: 22 mm; discard thickness: 20 mm
• Rust resistant zinc silver hat finish with plain disc finish
• 5 bolt holes with 114.3 mm bolt circle diameter
• Directional brake surface for optimized braking
• Overall height: 49.2 mm; outside diameter: 257 mm

Detailed Product Features and Specifications

The DFC Brake Rotor - Drilled and Slotted - Silver is designed with a vented rotor type to improve airflow and reduce heat buildup during braking. The rotor’s surface combines drilled holes and slots arranged directionally to help evacuate gases, dust, and water, which can improve brake pad contact and reduce brake fade. The rotor has a nominal thickness of 22 mm and a discard thickness of 20 mm, ensuring a clear maintenance threshold for safety. The zinc silver coating on the hat provides rust resistance, extending the rotor’s service life. With 5 bolt holes and a bolt circle diameter of 114.3 mm, this rotor fits securely on the Nissan 240SX hub assembly. The center hole diameter measures 68.1 mm, and the stud/lug hole diameter is 12.8 mm, matching OEM specifications.

About the DFC Brake Rotor - Drilled and Slotted - Silver Product Line

The DFC Brake Rotor - Drilled and Slotted - Silver line from Dynamite Friction focuses on rotors that combine drilled and slotted surfaces with corrosion-resistant finishes. This product line is designed to provide consistent braking performance and durability for vehicles requiring enhanced heat dissipation and surface cleaning during braking. The silver zinc coating on the rotor hat offers additional protection against rust, making it suitable for various driving conditions.

Applications and Problem Solving

• Improves braking performance for Nissan 240SX models
• Reduces brake fade caused by heat buildup during aggressive driving
• Helps prevent rotor surface glazing and brake pad deposits
• Minimizes corrosion on rotor hats for longer service life
• Maintains consistent braking under wet or dusty conditions

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 20 mm before installation. Clean the rotor surface to remove any protective coatings or residues before mounting. Verify bolt hole alignment with the 5-lug pattern and 114.3 mm bolt circle diameter on the Nissan 240SX hub. Use proper torque specifications for lug nuts to avoid rotor warping. Directional rotors should be installed following the indicated rotation direction for optimal performance.

Quality Assurance and Warranty

Dynamite Friction manufactures the 631-67047L rotor to meet or exceed OEM standards for fit, form, and function. The rust-resistant zinc silver finish on the rotor hat helps maintain structural integrity over time. While specific warranty details are not provided, Dynamite Friction products typically undergo rigorous quality control to ensure reliability and durability in automotive braking applications.
