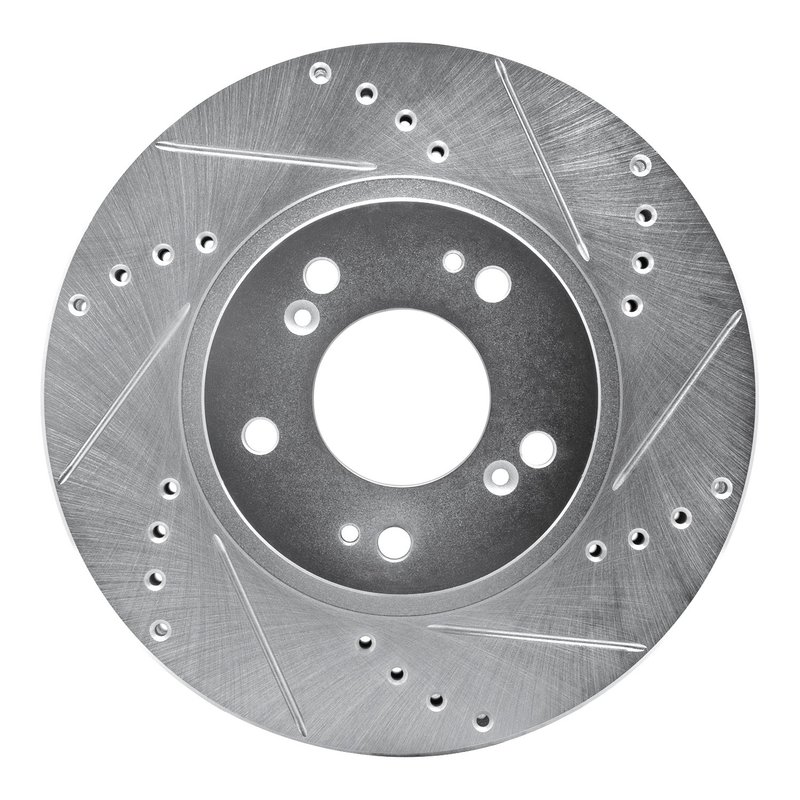

Dynamite Friction 631-72059R Disc Brake Rotor - Front Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-72059R) is engineered for reliable braking performance on Mitsubishi Endeavor and Grandis models. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance heat dissipation and maintain consistent stopping power.

• Compatible with Mitsubishi Endeavor and Grandis vehicles
• Directional slotted and drilled surface for improved brake cooling
• Vented rotor design to reduce heat buildup
• Rust-resistant zinc silver hat finish for durability
• Nominal thickness of 26.25 mm with discard thickness at 24.4 mm
• Five bolt holes with a 114.3 mm bolt circle diameter
• Overall diameter of 290 mm and height of 46.4 mm

Detailed Product Features and Specifications

This Dynamite Friction DFC Brake Rotor (631-72059R) is constructed with a vented design that allows air to flow between the rotor surfaces, helping to dissipate heat more effectively during braking. The rotor’s surface is both drilled and slotted, which aids in removing brake dust, gases, and water from the contact area, improving brake pad bite and reducing the risk of brake fade. The directional pattern ensures optimal performance when installed correctly according to the vehicle’s rotation.

The rotor features a plain disc finish combined with a zinc silver coating on the hat area, providing resistance against rust and corrosion. With a nominal thickness of 26.25 mm and a discard thickness of 24.4 mm, this rotor meets the necessary specifications for safe and effective braking. The five bolt holes and stud/lug hole diameter of 12.6 mm correspond to a bolt circle diameter of 114.3 mm, ensuring proper fitment on compatible Mitsubishi models.

About the DFC Brake Rotor - Drilled and Slotted - Silver Line

The DFC Brake Rotor - Drilled and Slotted - Silver product line by Dynamite Friction focuses on rotors that combine drilled holes and slots with a corrosion-resistant finish. This line is designed to provide enhanced braking performance through improved heat management and debris removal, making it suitable for drivers seeking reliable stopping power under various driving conditions. The silver zinc coating on the rotor hat adds an extra layer of protection against rust, extending the rotor’s service life.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Mitsubishi Endeavor and Grandis
• Improves brake cooling to reduce fade during heavy braking
• Helps eliminate brake pad glazing and uneven wear
• Reduces brake dust buildup for cleaner braking surfaces
• Addresses corrosion issues with rust-resistant coating

Installation Notes and Tips

Ensure the rotor is installed with the directional surface facing the correct rotation direction of the wheel. Verify that the rotor thickness is within the nominal range and above the discard thickness before installation. Clean the rotor surface to remove any protective coating or contaminants prior to mounting. Use proper torque specifications for the five lug bolts to secure the rotor firmly.

Quality Assurance and Warranty

Dynamite Friction manufactures the 631-72059R rotor to meet or exceed OEM specifications for Mitsubishi Endeavor and Grandis vehicles. The rust-resistant zinc silver finish helps maintain rotor integrity over time. Warranty details are subject to the manufacturer’s terms and conditions and should be confirmed at the time of purchase.
