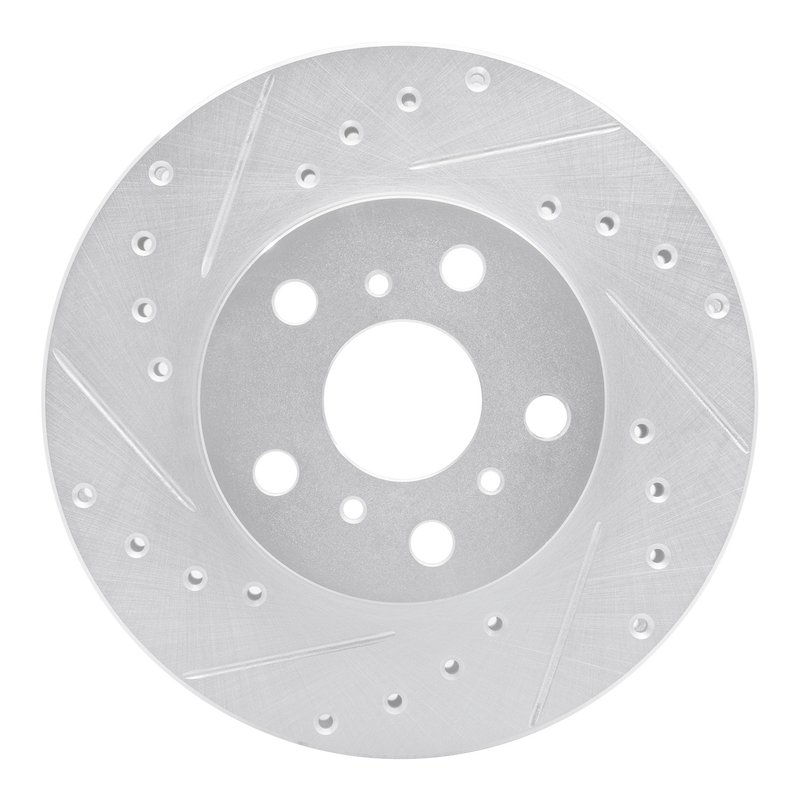

Dynamite Friction 631-76041L Disc Brake Rotor - Front Left

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver is engineered for Toyota Celica models requiring reliable braking performance. This vented disc brake rotor features a directional, slotted and drilled surface designed to enhance heat dissipation and maintain consistent stopping power.

• Part Number: 631-76041L
• Compatible with Toyota Celica
• Vented disc rotor with drilled and slotted surface
• Nominal thickness: 25 mm; Discard thickness: 24 mm
• Outside diameter: 255 mm; Overall height: 46 mm
• Rust resistant zinc silver hat finish
• 5 bolt holes with 100 mm bolt circle diameter
• Directional brake surface for optimized performance

Detailed Product Features and Specifications

This DFC Brake Rotor - Drilled and Slotted - Silver from Dynamite Friction is designed with a vented rotor type to improve airflow and reduce heat buildup during braking. The rotor's surface combines drilled holes and slots arranged directionally to help evacuate gases, dust, and water, which can improve brake pad contact and reduce brake fade. The rotor has a nominal thickness of 25 mm and a discard thickness of 24 mm, ensuring a clear maintenance threshold for safe operation.

The rotor's hat is finished with a zinc silver coating that provides rust resistance, extending the rotor's service life. It features five bolt holes with a 100 mm bolt circle diameter and a center hole diameter of 54 mm, matching the Toyota Celica's specifications. The stud/lug hole diameter is 14.55 mm, accommodating the vehicle's lug nuts securely.

About the DFC Brake Rotor - Drilled and Slotted - Silver Product Line

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction focuses on rotors that combine drilled and slotted surfaces with a rust-resistant finish. This product line is designed to provide enhanced braking performance through improved heat dissipation and debris removal, while the zinc silver hat finish helps protect against corrosion. These rotors are directional, meaning they are optimized for specific rotation directions to maximize braking efficiency.

Applications and Problem Solving

• Replacement rotor for worn or warped Toyota Celica brake rotors
• Improves heat dissipation to reduce brake fade during aggressive driving
• Helps maintain consistent braking performance in wet or dusty conditions
• Addresses rotor corrosion issues with rust-resistant coating
• Supports safe braking by providing clear discard thickness limits

Installation Notes and Tips

• Ensure rotor part number 631-76041L matches your Toyota Celica model specifications
• Check rotor thickness before installation; replace if below 24 mm discard thickness
• Clean hub surface before mounting to prevent uneven rotor seating
• Torque lug nuts to manufacturer specifications to avoid rotor warping
• Verify directional rotor orientation during installation for optimal performance

Quality Assurance and Warranty

Dynamite Friction manufactures the 631-76041L rotor to meet OEM standards for fit and function on Toyota Celica vehicles. The rust-resistant zinc silver finish helps extend rotor life by reducing corrosion. While specific warranty details are not provided, Dynamite Friction products typically adhere to industry quality controls to ensure durability and reliable braking performance.
