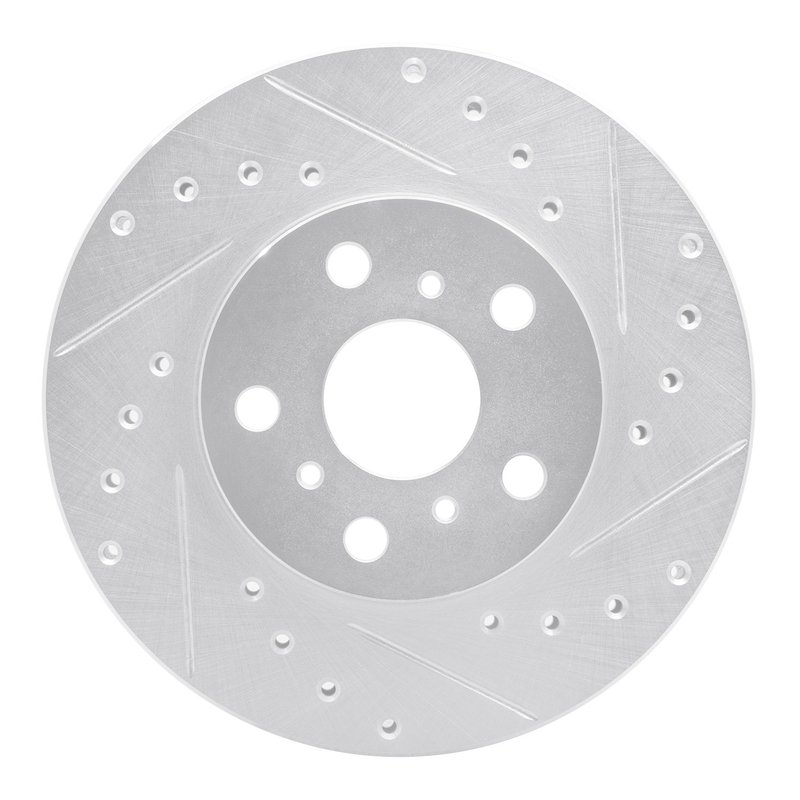

Dynamite Friction 631-76041R Disc Brake Rotor - Front Right

Overview of DFC Brake Rotor for Toyota Celica

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-76041R) is engineered specifically for Toyota Celica models. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance braking performance and heat dissipation under demanding conditions.

• Compatible with Toyota Celica vehicles
• Directional slotted and drilled surface for improved brake pad contact and cooling
• Vented rotor design to reduce heat buildup
• Rust-resistant zinc silver hat finish for corrosion protection
• Nominal thickness of 25 mm with a discard thickness of 24 mm
• Five bolt holes with a 100 mm bolt circle diameter
• Overall diameter of 255 mm and center hole diameter of 54 mm

Detailed Product Features and Specifications

The DFC Brake Rotor - Drilled and Slotted - Silver is part of Dynamite Friction's DFC line, which focuses on delivering reliable braking components with enhanced surface treatments. This rotor’s vented design helps maintain optimal operating temperatures by allowing air to flow between the rotor surfaces, reducing the risk of brake fade during extended use. The drilled and slotted surface improves water and debris evacuation, ensuring consistent braking performance in various driving conditions.

Constructed with a plain disc finish and a zinc silver coated hat, this rotor offers corrosion resistance to extend service life. The rotor measures 255 mm in outside diameter and 46 mm in overall height, with a nominal thickness of 25 mm and a discard thickness of 24 mm, ensuring precise fitment and safety compliance. The five bolt holes and stud/lug hole diameter of 14.55 mm correspond to a 100 mm bolt circle diameter, matching Toyota Celica specifications.

Applications and Problem Solving

• Replacement for worn or warped brake rotors on Toyota Celica
• Improves heat dissipation to reduce brake fade during aggressive driving
• Enhances braking response in wet or debris-prone environments
• Prevents rust and corrosion on rotor hats for longer durability
• Maintains proper rotor thickness for safe braking performance

Installation Notes and Tips

Ensure the rotor surface is clean and free of contaminants before installation. Verify that the rotor thickness meets or exceeds the discard thickness of 24 mm to maintain safety standards. Use proper torque specifications for the five lug bolts to secure the rotor firmly. Directional rotors like this one must be installed with the correct rotation direction to optimize performance and wear.

Quality Assurance and Warranty

Dynamite Friction manufactures the DFC Brake Rotor - Drilled and Slotted - Silver to meet or exceed OEM standards for fit, form, and function. The rust-resistant coating and vented design contribute to the rotor’s durability and consistent braking performance. Warranty details are provided by the manufacturer and should be confirmed at the time of purchase.
