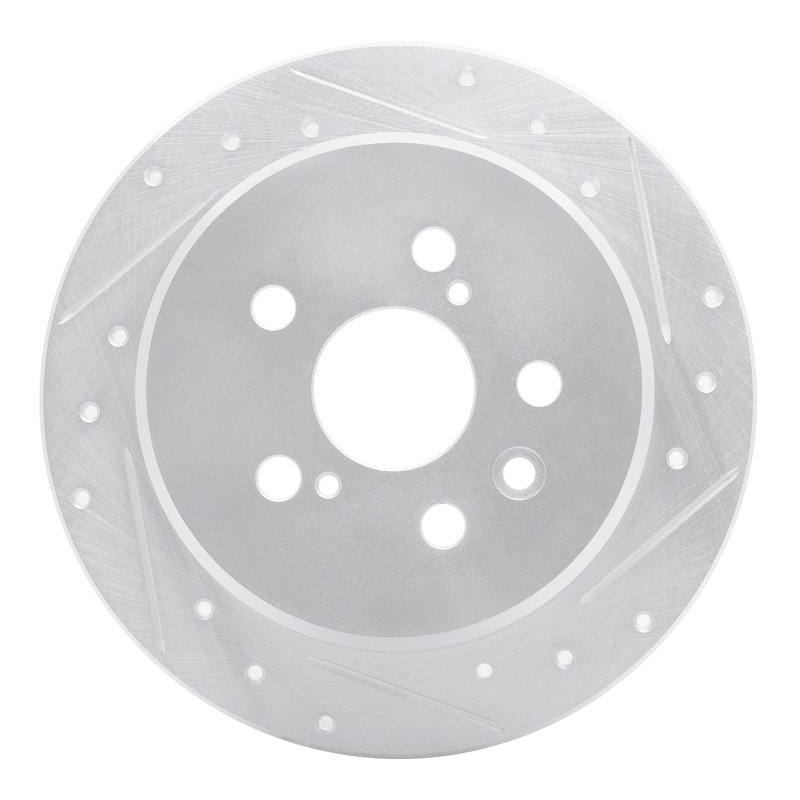

Dynamite Friction 631-76066R Disc Brake Rotor - Rear Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver is engineered for Toyota Celica models requiring reliable braking performance. This disc brake rotor, part number 631-76066R, features a solid design with a directional, slotted and drilled surface to enhance heat dissipation and braking consistency.

• Compatible with Toyota Celica vehicles
• Part Number: 631-76066R
• Solid disc brake rotor with drilled and slotted surface
• Rust resistant zinc silver hat finish
• 5 bolt holes with 100mm bolt circle diameter
• Nominal thickness of 8.9 mm and discard thickness of 8 mm
• Directional brake surface for optimized performance
• Overall diameter of 269 mm and height of 64.6 mm

Details on the DFC Brake Rotor - Drilled and Slotted - Silver Line

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction is designed to provide enhanced braking efficiency through its drilled and slotted surface. This design helps to reduce brake fade by improving heat dissipation and allowing gases and debris to escape during braking. The zinc silver coating on the rotor hat offers corrosion resistance, extending the rotor's service life. This rotor line is tailored for solid rotors with a directional surface, ensuring consistent contact with brake pads and improved stopping power.

Technical Specifications and Features

This rotor features a nominal thickness of 8.9 mm and a discard thickness of 8 mm, indicating when replacement is necessary to maintain safe braking. The rotor is solid rather than vented, with a 269 mm outside diameter and an overall height of 64.6 mm. It includes 5 bolt holes with a 100 mm bolt circle diameter and a center hole diameter of 55.1 mm, matching the Toyota Celica's specifications. The slotted and drilled surface is directional, designed to optimize braking performance and pad bite.

Applications and Problem Solving

• Replacement for worn or warped brake rotors on Toyota Celica
• Improves heat dissipation to reduce brake fade during aggressive driving
• Helps prevent brake pad glazing by allowing dust and gases to escape
• Corrosion resistance extends rotor lifespan in humid or wet environments
• Restores braking performance and safety for daily driving or spirited use

Installation Notes and Tips

Ensure the rotor surface is clean and free of oil or debris before installation. Verify the rotor thickness is above the discard thickness of 8 mm to maintain safety standards. Use the correct torque specifications for the 5 lug bolts with a 100 mm bolt circle diameter. The directional surface should be installed following the indicated rotation direction for optimal performance. It is recommended to replace brake pads when installing new rotors to ensure even wear and braking efficiency.

Quality Assurance

Dynamite Friction manufactures this rotor to meet OEM specifications for the Toyota Celica. The rust-resistant zinc silver coating on the rotor hat helps prevent corrosion, contributing to durability. While no specific warranty information is provided, the rotor's design and materials align with industry standards for reliable braking components.
