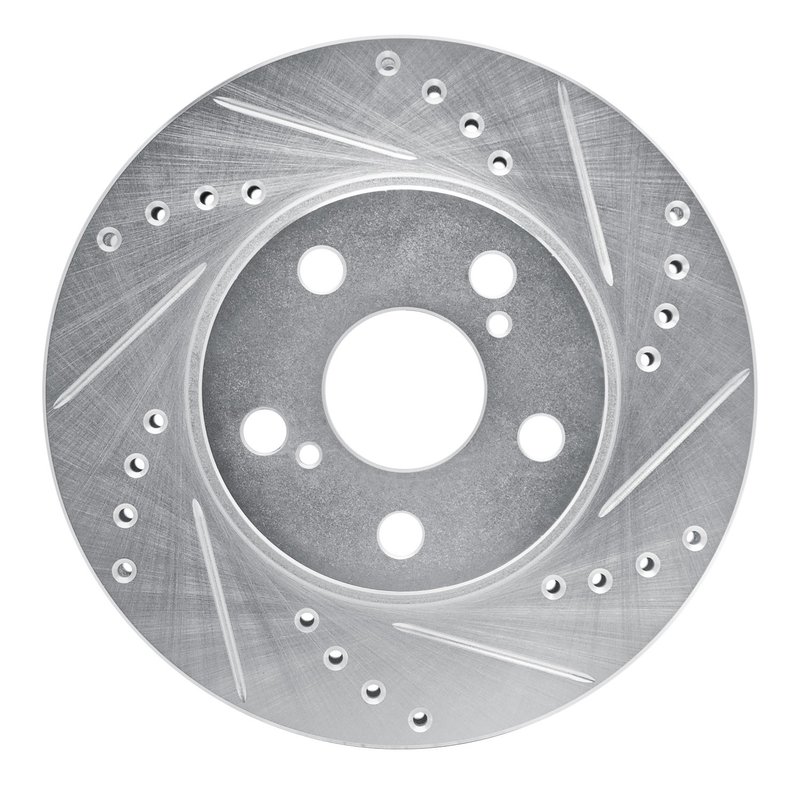

Dynamite Friction 631-76067R Disc Brake Rotor - Front Right

Overview of DFC Brake Rotor for Toyota Celica

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-76067R) is engineered specifically for Toyota Celica models. This vented disc brake rotor features a directional, slotted and drilled surface designed to enhance braking performance and heat dissipation under demanding conditions.

• Compatible with Toyota Celica vehicles
• Part Number: 631-76067R
• Vented disc brake rotor with drilled and slotted surface
• Nominal thickness: 25 mm; discard thickness: 23 mm
• Rust resistant zinc silver hat finish with plain disc finish
• 5 bolt holes with 100 mm bolt circle diameter
• Overall diameter: 255 mm; height: 49.4 mm
• Directional brake surface for optimized performance

Details on the DFC Brake Rotor - Drilled and Slotted - Silver Line

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction focuses on rotors that combine drilled holes and precision slots to improve water and gas evacuation from the braking surface. This design helps maintain consistent braking performance and reduces the risk of brake fade. The zinc silver coating on the rotor hat provides corrosion resistance, extending the rotor's service life, especially in environments prone to rust.

Technical Specifications and Features

This disc brake rotor is vented to allow better airflow and heat dissipation, which is critical for maintaining braking efficiency during extended use. The rotor's nominal thickness is 25 mm, with a discard thickness of 23 mm, indicating when replacement is necessary to maintain safety. The rotor features a directional surface pattern with both drilled holes and slots, which aids in debris removal and improves pad bite. The rotor's overall diameter measures 255 mm, with a height of 49.4 mm and a center hole diameter of 55 mm. It includes 5 bolt holes arranged on a 100 mm bolt circle diameter, compatible with Toyota Celica lug specifications.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Toyota Celica models
• Improves braking response and reduces brake fade under heavy use
• Helps prevent rust and corrosion with zinc silver coating
• Enhances heat dissipation to maintain consistent braking performance
• Addresses issues with brake noise and vibration due to rotor surface design

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 23 mm before installation. Clean the rotor surface to remove any protective coating or residue before mounting. Verify bolt hole alignment with the 5-lug pattern and 100 mm bolt circle diameter specific to Toyota Celica. Proper torque specifications should be followed to avoid rotor warping. Directional rotors must be installed with the correct rotation direction for optimal performance.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor to meet OEM standards for fit and function on Toyota Celica vehicles. The rust-resistant zinc silver finish helps extend rotor life in corrosive environments. While specific warranty details are not provided, Dynamite Friction products typically adhere to industry quality controls to ensure durability and reliability.
