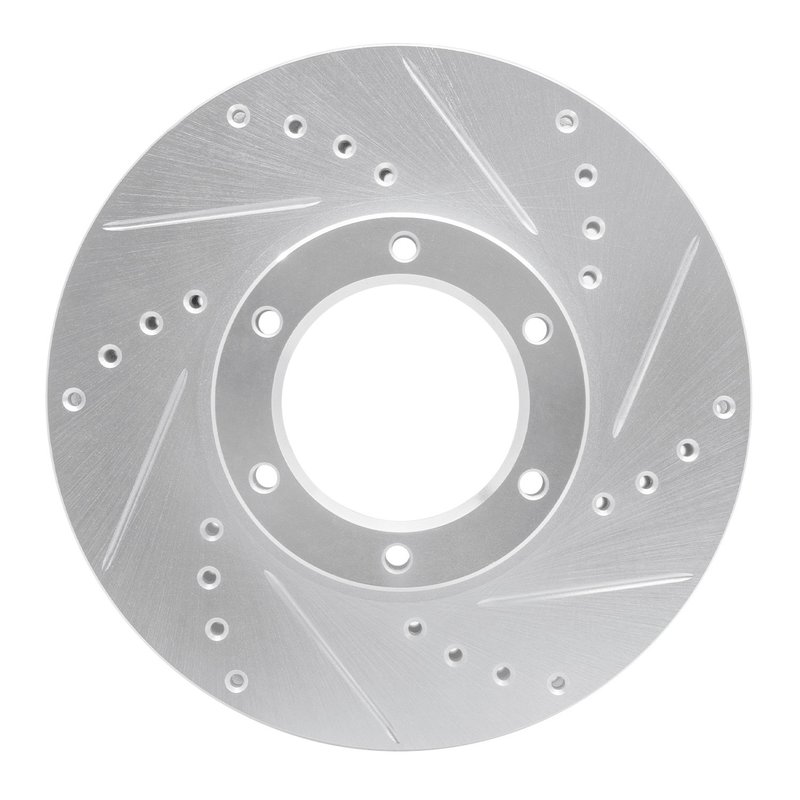

Dynamite Friction 631-76107R Disc Brake Rotor - Front Right

Drilled and Slotted Front Right Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver, part number 631-76107R, is a vented disc brake rotor built for the front right position. It features a directional slotted X drilled surface, zinc silver hat finish, and a rust resistant coating for added corrosion protection.

Built to match the needs of 1989-1993 Toyota Pickup front right brake service, this rotor uses a 6-lug, 110 mm bolt circle with an 84 mm center hole and a 262 mm outside diameter. The 631-76107R is a direct-fit style rotor for Toyota Pickup brake repair where consistent pedal response and heat management matter.

Key Features

• Drilled and slotted brake surface for improved rotor cooling and pad bite
• Vented rotor design for front brake heat dissipation
• Directional braking surface for correct rotation-specific installation
• Zinc silver hat finish with rust resistant coating
• 6 bolt holes and 110 mm bolt circle diameter
• Nominal thickness: 30 mm; discard thickness: 28 mm
• Outside diameter: 262 mm; overall height: 60 mm

Product Details

The DFC Brake Rotor - Drilled and Slotted - Silver line focuses on brake rotors with a performance-oriented surface pattern and corrosion-resistant finish. On this Toyota Pickup front right application, the 631-76107R combines a vented structure with drilled and slotted machining to support more even brake surface contact and heat control during repeated stops. If you are searching for a front right brake rotor for 1989-1993 Toyota Pickup models, this part number 631-76107R matches the listed fitment and rotor dimensions.

Common Brake Issues It Can Address

• Brake pulsation caused by a worn or uneven rotor surface
• Reduced braking consistency from heat buildup in the front brakes
• Surface corrosion on the rotor hat and braking components
• Noise or vibration related to rotor wear and finish degradation
• Fitment concerns when replacing a front right Toyota Pickup rotor

Installation Notes

Fits 1993 Toyota Pickup, front right. Fits 1989-1992 Toyota Pickup, front right. Confirm the directional rotor orientation before installation and verify rotor dimensions, bolt pattern, and center bore against the vehicle hub. For Toyota Pickup brake service, inspect pads, caliper condition, and hub surfaces before installing part number 631-76107R.

Quality Assurance

Dynamite Friction identifies this rotor with a rust resistant coating and zinc silver hat finish for corrosion protection. The DFC Brake Rotor - Drilled and Slotted - Silver is specified with measured thickness and mounting dimensions to support accurate replacement selection for the listed Toyota Pickup applications.
