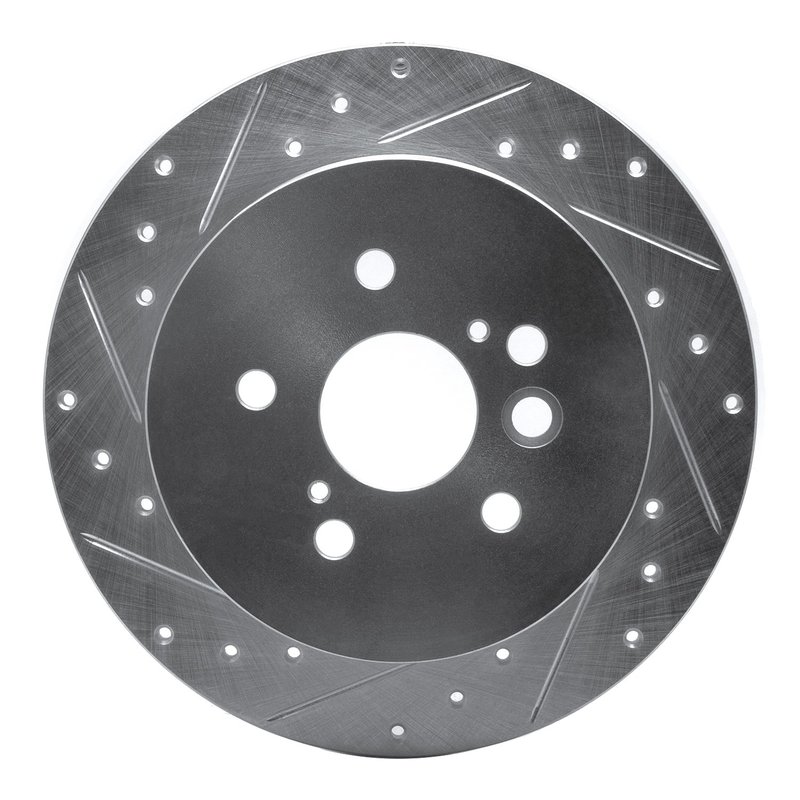

Dynamite Friction 631-76132L Disc Brake Rotor - Rear Left

Reliable Brake Performance for Toyota RAV4

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-76132L) is engineered to provide consistent braking performance for Toyota RAV4 models. Designed with durability and heat dissipation in mind, this rotor supports safe and effective stopping power under various driving conditions.

• Disc type: Solid disc brake rotor
• Surface finish: Drilled and slotted for improved heat dissipation
• Rust resistant zinc silver hat finish
• Nominal thickness: 8.9 mm with discard thickness at 8 mm
• Directional brake surface for optimized braking
• 5 bolt holes with a bolt circle diameter of 114.3 mm
• Overall diameter: 303 mm, height: 62.4 mm

About the DFC Brake Rotor - Drilled and Slotted - Silver Line

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction focuses on rotors that combine drilled holes and slots to enhance braking efficiency. This design helps reduce brake fade by improving heat dissipation and removing debris from the rotor surface. The zinc silver coating on the rotor hat provides corrosion resistance, extending the rotor's service life, especially in environments prone to rust.

Product Details and Specifications

This solid rotor features a plain disc finish with a directional surface type, meaning the drilled and slotted pattern is optimized for a specific rotation direction to maximize braking performance. The rotor measures 303 mm in outside diameter and 62.4 mm in overall height, fitting Toyota RAV4 vehicles requiring a 5-lug bolt pattern with a 114.3 mm bolt circle diameter. The center hole diameter is 62.1 mm, and the stud/lug hole diameter is 14.7 mm, ensuring precise fitment. The nominal thickness of 8.9 mm and discard thickness of 8 mm provide clear service limits for maintenance.

Common Applications and Problem Solving

• Replacement for worn or warped brake rotors on Toyota RAV4
• Improves heat dissipation to reduce brake fade during heavy braking
• Helps eliminate brake noise caused by uneven rotor surfaces
• Resists rust and corrosion for longer rotor life in humid or wet climates
• Maintains consistent braking performance under varied driving conditions

Installation Notes and Tips

Ensure the rotor is installed with the directional surface pattern aligned to the correct rotation direction of the wheel. Verify that the bolt hole pattern matches the vehicle’s hub before installation. It is recommended to inspect brake pads and hardware during rotor replacement to maintain optimal braking system performance. Proper torque specifications should be followed when securing the rotor to avoid warping.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor with rust-resistant coatings and precise machining to meet OEM standards. While specific warranty details are not provided, the product is designed to meet the durability and performance requirements for Toyota RAV4 brake systems. Regular inspection and maintenance will help ensure long-term reliability.
