Dynamite Friction 631-76132R Disc Brake Rotor - Rear Right

Overview of DFC Brake Rotor for Toyota RAV4

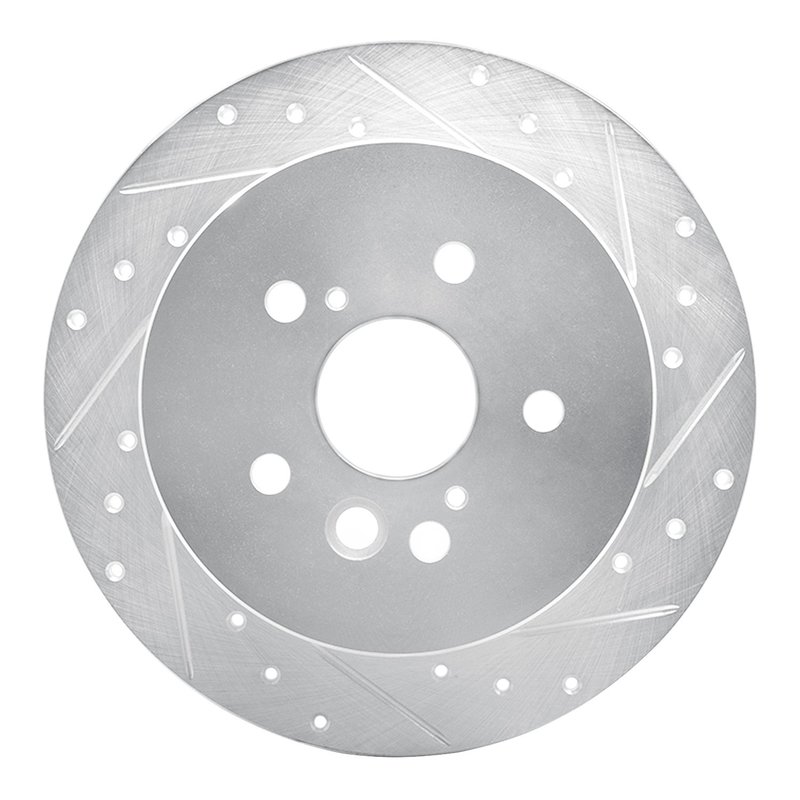

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-76132R) is engineered specifically for Toyota RAV4 models. This solid disc brake rotor features a directional, drilled and slotted surface designed to enhance braking performance and heat dissipation under demanding conditions.

• Compatible with Toyota RAV4 vehicles
• Part Number: 631-76132R
• Solid disc rotor with drilled and slotted surface
• Nominal thickness: 8.9 mm; discard thickness: 8 mm
• Rust-resistant zinc silver hat finish
• 5 bolt holes with 114.3 mm bolt circle diameter
• Directional brake surface for optimized performance
• Overall diameter: 303 mm; height: 62.4 mm

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Silver

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction offers rotors with a combination of drilled holes and slots on the braking surface. This design improves water and gas evacuation, reducing brake fade and maintaining consistent stopping power. The zinc silver coating on the rotor hat provides corrosion resistance, extending the rotor's service life. This product line is tailored for drivers seeking reliable braking components with enhanced heat dissipation and durability.

Technical Specifications and Features

This disc brake rotor is a solid type with a nominal thickness of 8.9 mm and a discard thickness of 8 mm, ensuring safe replacement intervals. The rotor's surface is both drilled and slotted, which helps to channel away heat and debris during braking. The rotor hat is finished with a rust-resistant zinc silver coating to protect against corrosion. It features five bolt holes with a bolt circle diameter of 114.3 mm and a center hole diameter of 62.1 mm, matching the Toyota RAV4's specifications. The directional brake surface is designed to optimize braking efficiency and pad contact.

Applications and Problem Solving

• Replacement rotor for worn or warped Toyota RAV4 brake rotors
• Improves heat dissipation to reduce brake fade during heavy braking
• Helps maintain consistent braking performance in wet conditions
• Addresses rotor corrosion issues with rust-resistant coating
• Suitable for drivers requiring enhanced braking surface durability

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 8 mm before installation. Clean the rotor surface to remove any protective coating or debris prior to mounting. Verify bolt hole alignment with the 5-lug pattern and 114.3 mm bolt circle diameter on the Toyota RAV4. Properly torque lug nuts to manufacturer specifications to avoid rotor warping. Directional rotors should be installed following the indicated rotation direction for optimal performance.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor to meet OEM specifications for fit and function on Toyota RAV4 models. The rust-resistant zinc silver coating enhances durability against corrosion. While specific warranty details are not provided, Dynamite Friction products typically adhere to industry standards for quality and reliability.
