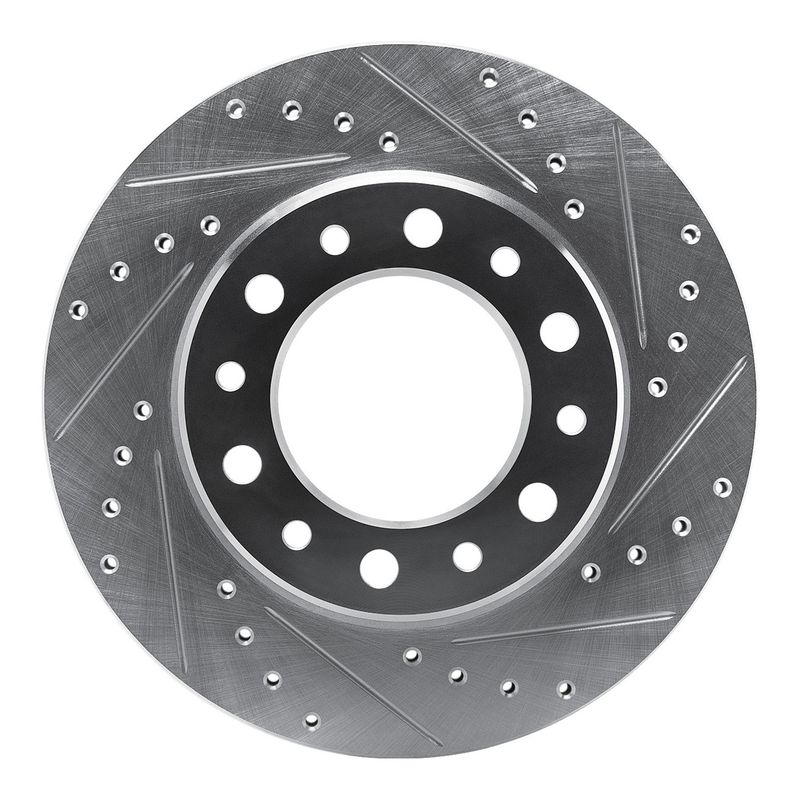

Dynamite Friction 631-76169R Disc Brake Rotor - Front Right

Overview of the DFC Brake Rotor for Toyota Land Cruiser

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-76169R) is engineered specifically for Toyota Land Cruiser models. This vented disc brake rotor features a directional, slotted and drilled surface designed to enhance braking performance and heat dissipation under demanding conditions.

• Compatible with Toyota Land Cruiser vehicles
• Vented disc brake rotor with drilled and slotted surface
• Nominal thickness of 20 mm and discard thickness of 19 mm
• Outside diameter measures 302 mm with a height of 48 mm
• 6 bolt holes with a bolt circle diameter of 139.7 mm and center hole diameter of 100 mm
• Directional brake surface for optimized braking efficiency

Details on the DFC Brake Rotor - Drilled and Slotted - Silver Line

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction is designed to provide reliable braking performance with enhanced heat management. The drilled and slotted surface helps reduce brake fade by allowing gases and debris to escape, while the vented rotor design improves airflow to maintain optimal operating temperatures. This rotor line is tailored for vehicles requiring durable and consistent braking under various driving conditions.

Technical Specifications and Features

This disc brake rotor is constructed with a plain finish and features a vented design to improve heat dissipation. The rotor’s outside diameter is 302 mm, with a height of 48 mm, making it suitable for the Toyota Land Cruiser’s braking system. It includes six bolt holes arranged on a 139.7 mm bolt circle diameter and a center hole diameter of 100 mm. The rotor thickness is nominally 20 mm, with a discard thickness of 19 mm, indicating when replacement is necessary. The directional slotted and drilled surface enhances braking response and helps maintain pad contact by reducing glazing and debris buildup.

Applications and Problem Solving

• Replacement rotor for worn or warped brake rotors on Toyota Land Cruiser
• Improves heat dissipation to reduce brake fade during heavy braking
• Helps prevent brake pad glazing and debris accumulation with slotted and drilled design
• Restores braking performance affected by rotor surface damage or corrosion
• Supports consistent braking under towing or off-road conditions

Installation Notes and Tips

Ensure the rotor surface is clean and free of contaminants before installation. Verify the bolt hole pattern and center hole diameter match the vehicle specifications. It is recommended to replace brake pads when installing new rotors to ensure optimal braking performance. Follow manufacturer torque specifications for lug nuts and bolts. Directional rotors must be installed with the correct rotation direction as indicated on the rotor surface.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor to meet or exceed OEM specifications for fit and function on Toyota Land Cruiser models. The vented and directional design supports consistent braking performance and durability. Warranty information is available from the manufacturer and should be consulted for coverage details.
