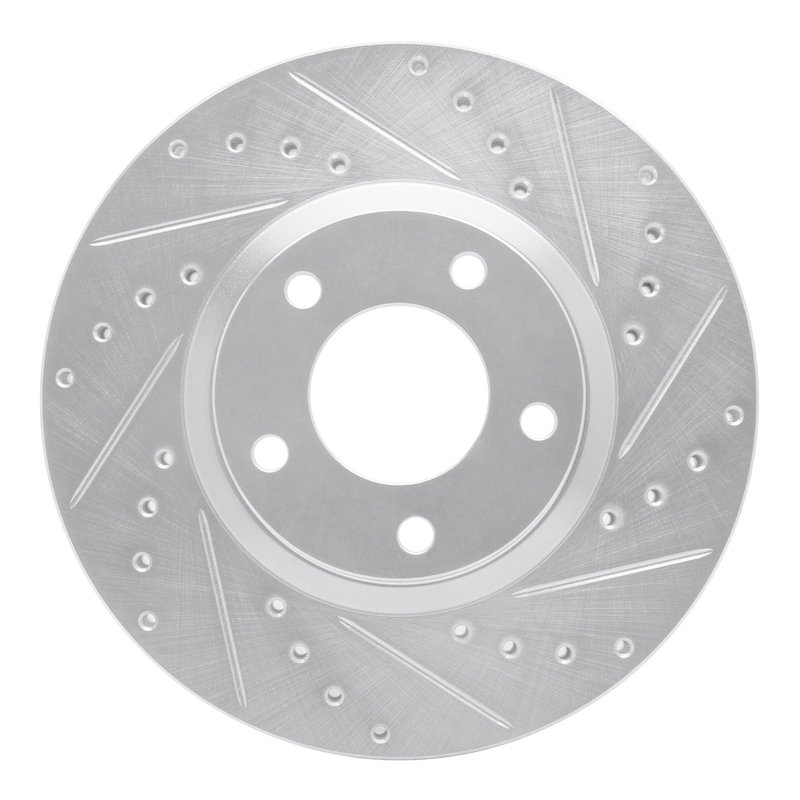

Dynamite Friction 631-80065R Disc Brake Rotor - Front Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver (part number 631-80065R) is engineered for Mazda 3, Mazda 3 Sport, and Mazda 5 models. This vented disc brake rotor features a directional, drilled and slotted surface designed to enhance braking performance and heat dissipation.

• Compatible with Mazda 3, Mazda 3 Sport, and Mazda 5
• Part Number: 631-80065R
• Drilled and slotted surface for improved cooling and debris removal
• Vented rotor design to reduce heat buildup
• Rust resistant zinc silver hat finish
• Directional brake surface for optimized braking efficiency
• 5 bolt holes with 114.3 mm bolt circle diameter
• Nominal thickness of 25 mm with discard thickness at 23 mm
• Overall diameter of 300 mm and height of 48.6 mm

Details on the DFC Brake Rotor - Drilled and Slotted - Silver Line

The DFC Brake Rotor - Drilled and Slotted - Silver line by Dynamite Friction focuses on rotors that combine drilled holes and slots on the braking surface. This design helps to evacuate gases, dust, and water more effectively than plain rotors, contributing to consistent brake pad contact and improved stopping power. The zinc silver coating on the rotor hat provides corrosion resistance, extending the rotor's service life, especially in environments prone to rust.

Technical Specifications and Features

This disc brake rotor is vented, allowing air to flow between the rotor surfaces to dissipate heat generated during braking. The rotor's directional surface pattern is engineered to optimize braking performance by channeling gases and debris away from the pad contact area. With a 5-lug bolt pattern and a bolt circle diameter of 114.3 mm, it fits securely on compatible Mazda models. The rotor's nominal thickness is 25 mm, with a discard thickness of 23 mm, ensuring safe replacement intervals. The center hole diameter measures 72 mm, and the stud/lug hole diameter is 13.7 mm.

Applications and Problem Solving

• Replaces worn or warped rotors on Mazda 3, Mazda 3 Sport, and Mazda 5
• Improves heat dissipation to reduce brake fade during heavy use
• Helps prevent brake pad glazing by maintaining cleaner pad surfaces
• Reduces rust and corrosion on rotor hats for longer durability
• Enhances braking consistency in wet or dusty conditions

Installation Notes and Tips

Ensure the rotor is installed on compatible Mazda 3, Mazda 3 Sport, or Mazda 5 models with a 5-lug wheel configuration and 114.3 mm bolt circle diameter. Verify rotor thickness before installation; replace if below the discard thickness of 23 mm. Clean the rotor surface to remove any protective coatings or residues before mounting. Proper torque specifications should be followed for lug nuts to avoid rotor warping.

Quality Assurance

Dynamite Friction manufactures the DFC Brake Rotor - Drilled and Slotted - Silver to meet or exceed OEM standards for fit, form, and function. The rotor includes a rust-resistant zinc silver coating on the hat to extend service life. While specific warranty details are not provided, Dynamite Friction products are generally backed by quality control processes to ensure reliability and performance.
