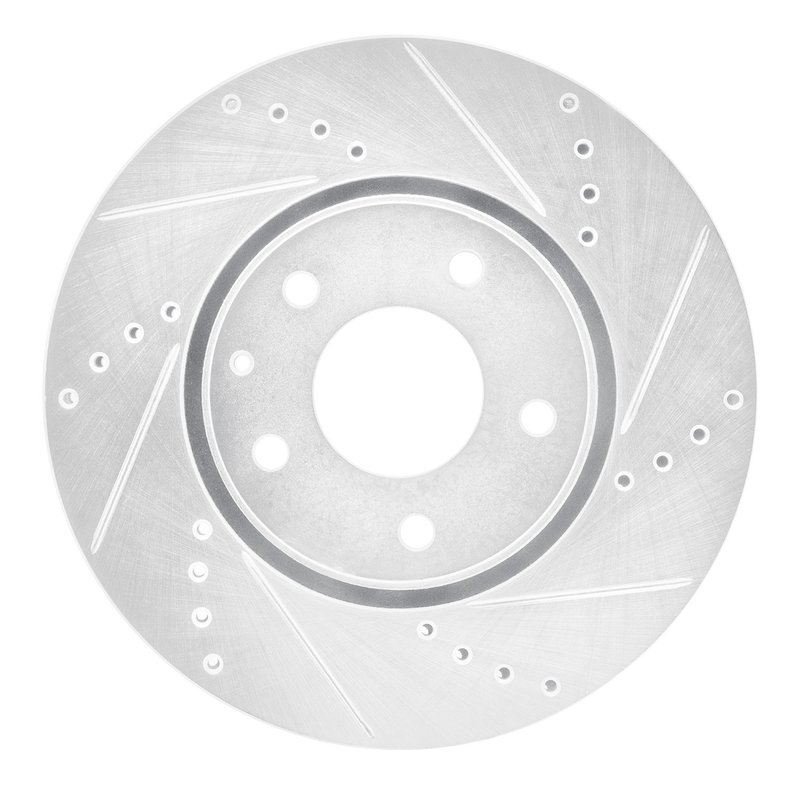

Dynamite Friction 631-80076R Disc Brake Rotor - Front Right

Front Right Drilled and Slotted Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Silver, part number 631-80076R, is a vented disc brake rotor built for the front right position. It features a slotted X drilled surface, zinc silver hat finish, and a rust resistant coating for a clean, service-ready appearance.

Compatible with 2016-2025 Mazda CX-5 front right and 2020-2021 Mazda 6 front right, this rotor is sized for a 297 mm outside diameter, 68 mm center hole, and 5-lug, 114.3 mm bolt circle applications. The directional braking surface supports consistent pad contact on the correct side of the vehicle.

Key Features

• Part number 631-80076R
• Front right disc brake rotor
• Slotted X drilled surface type
• Vented rotor construction
• Zinc silver hat finish with rust resistant coating
• 5 bolt holes and 5 stud/lug holes
• 114.3 mm bolt circle diameter
• 297 mm outside diameter
• Directional brake surface

Product Details

The DFC Brake Rotor - Drilled and Slotted - Silver line focuses on rotor designs that combine venting, slotting, and drilled surface geometry for controlled brake pad interaction and heat management. This rotor uses a plain disc finish with a silver-coated hat section, giving it a clean look while helping resist surface corrosion in exposed areas. The 26 mm discard thickness and 28 mm nominal thickness provide the dimensional reference needed for service and replacement decisions.

For Mazda CX-5 and Mazda 6 front brake service, 631-80076R is a direct-fit rotor for the front right side. It matches the listed hub and lug dimensions, including a 13.3 mm stud/lug hole diameter and 68 mm center hole diameter.

Common Uses

• Replacing a worn front right brake rotor on a Mazda CX-5
• Servicing a front brake rotor on a Mazda 6
• Addressing rotor scoring, pulsation, or uneven braking feel
• Restoring proper rotor thickness after wear
• Replacing a corroded or heat-cycled vented rotor

Installation Notes

Install on the front right position only and verify the directional orientation before mounting. Confirm rotor dimensions, bolt pattern, and center bore against the vehicle hub before brake service. Always inspect pads, caliper condition, and wheel hardware during rotor replacement, and follow the vehicle manufacturer’s brake service procedure.

Quality Assurance

Dynamite Friction identifies this rotor as part of its DFC Brake Rotor - Drilled and Slotted - Silver product line, with a rust resistant coating and zinc silver hat finish for added surface protection. Part number 631-80076R is specified for confirmed Mazda CX-5 and Mazda 6 front right applications.
