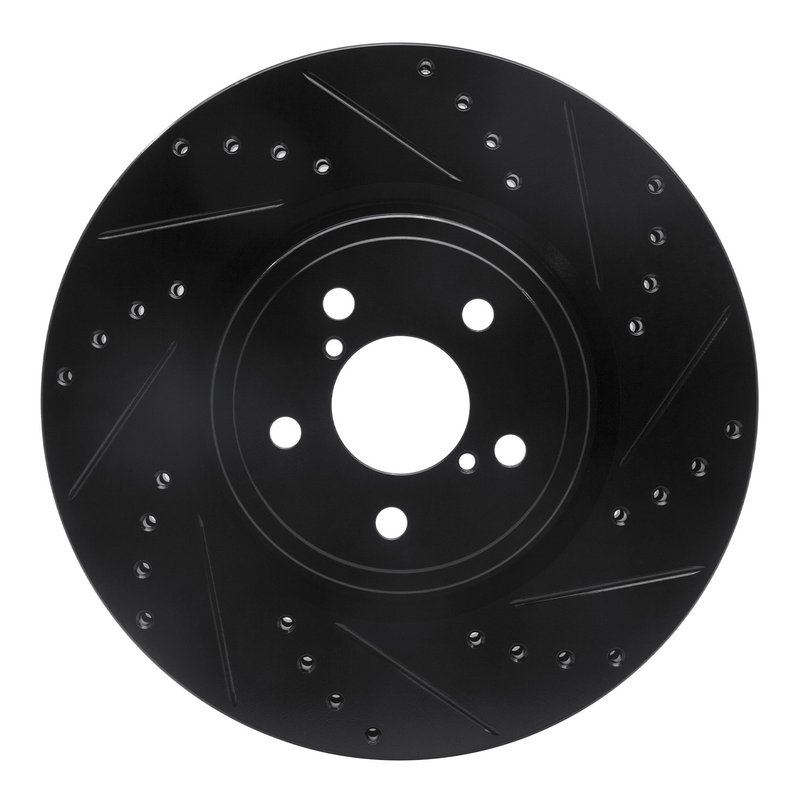

Dynamite Friction 633-13018R Disc Brake Rotor - Front Right

Drilled and Slotted Front Right Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black, part number 633-13018R, is a vented front right disc brake rotor built for Subaru applications that call for a 5-lug, 100 mm bolt circle rotor. It features a slotted X drilled surface, zinc black hat finish, and rust resistant coating for a clean, service-ready appearance.

Compatible With 2014-2018 Subaru Forester, front right; 2005-2014 Subaru Legacy, front right; and 2010-2014 Subaru Outback, front right. The 633-13018R rotor is sized with a 316.5 mm outside diameter, 58 mm center hole diameter, and 57.1 mm overall height.

Key Features

• Part number 633-13018R
• Drilled and slotted brake surface for directional braking performance
• Vented rotor construction
• Rust resistant coating for added corrosion protection
• Zinc black hat finish
• 5 bolt holes with 13.1 mm hole diameter
• 316.5 mm outside diameter
• 28 mm discard thickness and 30 mm nominal thickness

Product Details

This DFC Brake Rotor - Drilled and Slotted - Black is built for the front right position on Subaru Forester, Subaru Legacy, and Subaru Outback models listed above. The directional slotted X drilled surface is intended to maintain consistent rotor face contact, while the vented design supports heat management during repeated braking. The black hat finish and rust resistant coating help preserve the rotor’s appearance in service.

Part number 633-13018R is a direct-fit style rotor for vehicles using a 100 mm bolt circle, 5 lug pattern, and 58 mm center bore. If you are searching for a front right Subaru Forester brake rotor, Subaru Legacy drilled and slotted rotor, or Subaru Outback replacement rotor, this application-specific part provides the required dimensions and mounting layout.

Common Replacement Reasons

• Warped or uneven rotor braking surface
• Brake pulsation during stops
• Visible rotor wear near discard thickness
• Corrosion on the rotor hat or braking surface
• Need for a front right replacement rotor with drilled and slotted construction

Installation Notes

Verify rotor dimensions, bolt pattern, and position before installation. This rotor is listed for the front right side only and should be matched to the vehicle’s brake system specifications, including 316.5 mm outside diameter, 28 mm discard thickness, and 30 mm nominal thickness. Clean the hub mounting surface before installing the rotor to help ensure proper seating and brake feel.

Quality Assurance

Dynamite Friction supplies this rotor as a specification-based brake component with defined dimensions, finish details, and fitment coverage for the listed Subaru applications. Part number 633-13018R is cataloged for the front right position on 2014-2018 Subaru Forester, 2005-2014 Subaru Legacy, and 2010-2014 Subaru Outback.
