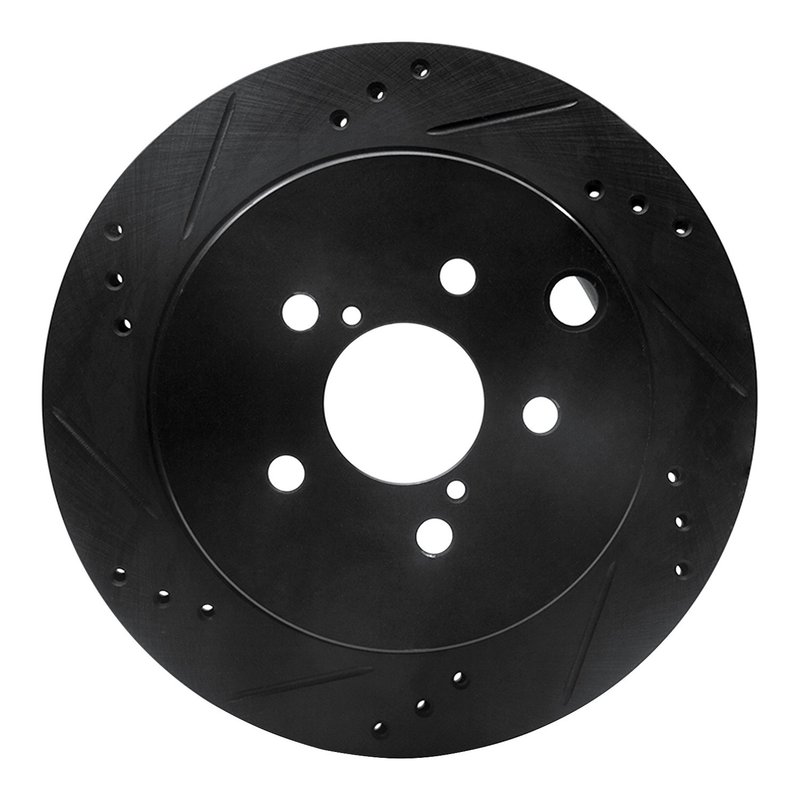

Dynamite Friction 633-13027L Disc Brake Rotor - Rear Left

Overview of the DFC Brake Rotor for Subaru Forester

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-13027L) is engineered specifically for Subaru Forester models. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance braking performance and heat dissipation under demanding conditions.

• Compatible with Subaru Forester vehicles
• Directional drilled and slotted surface for improved brake pad bite and debris removal
• Vented rotor design to reduce heat buildup
• Black zinc-coated hat finish for corrosion resistance
• Nominal thickness of 18 mm with a discard thickness of 16 mm
• Five bolt holes with a 13 mm diameter and 100 mm bolt circle diameter
• Outside diameter of 278 mm and height of 63.3 mm
• Rust resistant coating to extend rotor life

Details on the DFC Brake Rotor - Drilled and Slotted - Black Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that combine drilled holes and slots with a corrosion-resistant black zinc hat finish. This product line is designed to provide consistent braking performance while managing heat and debris effectively. The drilled and slotted surface pattern helps maintain clean contact between the brake pad and rotor, which is essential for vehicles like the Subaru Forester that may encounter varied driving conditions.

Technical Specifications and Features

This disc brake rotor is vented to allow air circulation between the rotor surfaces, reducing the risk of brake fade during extended use. The rotor’s nominal thickness is 18 mm, with a discard thickness of 16 mm, ensuring a clear maintenance threshold. The rotor features a plain disc finish with a zinc black hat finish that offers rust resistance, helping to maintain structural integrity over time. The rotor’s bolt hole diameter is 13 mm, with five bolt holes arranged on a 100 mm bolt circle diameter, matching Subaru Forester specifications. The outside diameter measures 278 mm, and the rotor height is 63.3 mm, ensuring proper fitment and clearance.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Subaru Forester models
• Improves braking performance by reducing heat buildup and brake fade
• Helps eliminate brake noise and vibration caused by uneven rotor surfaces
• Maintains braking efficiency in wet or debris-prone environments
• Prevents premature rotor corrosion with rust resistant coating

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 16 mm before installation. Clean the rotor surface to remove any protective coatings or residues before mounting. Verify bolt hole alignment with the Subaru Forester hub and torque bolts to manufacturer specifications. Directional rotors must be installed with the rotation arrow pointing in the correct direction of wheel rotation to maintain optimal performance.

Quality Assurance and Warranty

Dynamite Friction manufactures the 633-13027L rotor to meet OEM standards for fit and function. The rust resistant coating and zinc black hat finish contribute to long-term durability. Warranty information is available through the manufacturer and should be consulted for specific coverage details.
