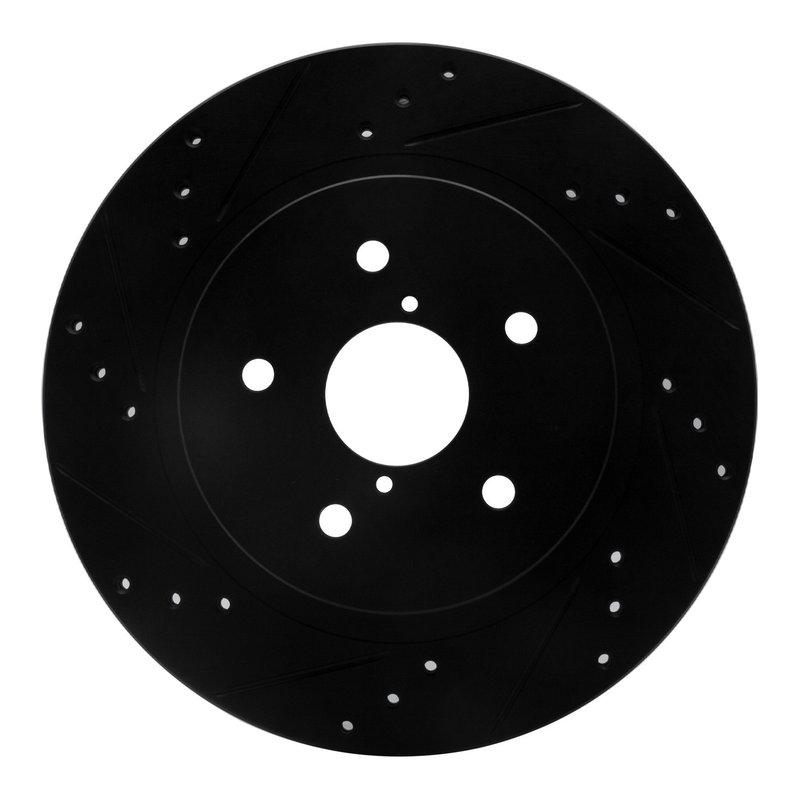

Dynamite Friction 633-13028L Disc Brake Rotor - Rear Left

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-13028L) is engineered for Subaru vehicles including Forester, Legacy, Outback, and WRX models. This vented disc brake rotor features a directional, slotted and drilled surface designed to enhance braking performance and heat dissipation.

• Compatible with Subaru Forester, Legacy, Outback, and WRX
• Part Number: 633-13028L
• Vented disc brake rotor with drilled and slotted surface
• Directional brake surface for optimized braking
• Rust-resistant zinc black hat finish
• Nominal thickness of 17 mm with discard thickness at 15 mm
• Overall diameter of 300 mm and height of 46.5 mm
• 5 bolt holes with 13 mm diameter and 114.3 mm bolt circle diameter

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line from Dynamite Friction offers rotors designed with both drilled holes and slots on the braking surface. This combination improves water and gas evacuation during braking, reducing fade and maintaining consistent performance. The zinc black coating on the rotor hat provides corrosion resistance, extending rotor life in various driving conditions. This product line is tailored for drivers seeking reliable braking components compatible with specific Subaru models.

Technical Specifications and Features

This rotor is vented to allow better heat dissipation, which helps prevent overheating during heavy braking. The directional surface pattern, featuring both drilled holes and slots, aids in debris removal and improves pad bite. The rotor’s nominal thickness is 17 mm, with a discard thickness of 15 mm, ensuring clear service limits for safety. The rotor measures 300 mm in outside diameter and 46.5 mm in height, fitting precisely with the specified Subaru models. The zinc black finish on the hat section offers rust resistance, while the plain disc finish maintains a consistent braking surface.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Subaru Forester, Legacy, Outback, and WRX
• Improves braking performance under wet or high-heat conditions
• Reduces brake fade during aggressive driving or towing
• Addresses rotor corrosion issues with rust-resistant coating
• Enhances brake pad bite and reduces noise with slotted and drilled design

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 15 mm before installation. The rotor features 5 bolt holes with a 13 mm diameter and a bolt circle diameter of 114.3 mm, matching factory specifications for the listed Subaru models. Proper torque specifications should be followed during installation to avoid rotor warping. Directional rotors must be installed with the correct rotation direction for optimal performance.

Quality Assurance

Dynamite Friction rotors are manufactured to meet OEM standards for fit and function. The rust-resistant zinc black coating on the rotor hat enhances durability. While no specific warranty information is provided, adherence to discard thickness and proper installation ensures reliable service life.
