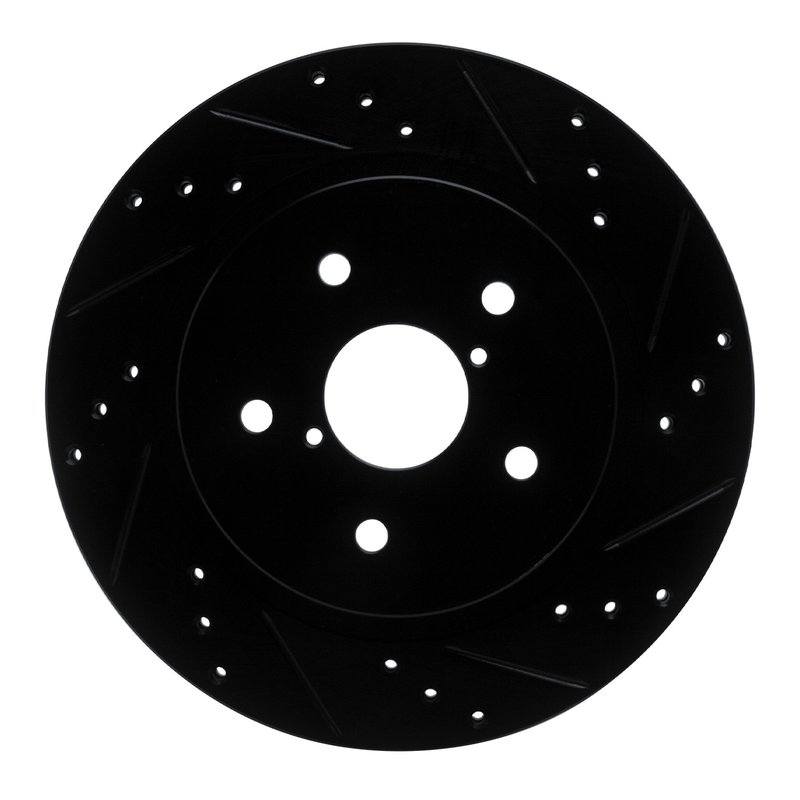

Dynamite Friction 633-13028R Disc Brake Rotor - Rear Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-13028R) is engineered for Subaru vehicles including Forester, Legacy, Outback, and WRX models. This vented disc brake rotor features a directional, slotted and drilled surface designed to enhance braking performance and heat dissipation.

• Compatible with Subaru Forester, Legacy, Outback, and WRX
• Part number 633-13028R
• Vented disc brake rotor with drilled and slotted surface
• Directional brake surface for optimized performance
• Rust resistant zinc black hat finish
• Nominal thickness of 17 mm with discard thickness of 15 mm
• 5 bolt holes with 13 mm diameter and 114.3 mm bolt circle diameter
• Overall diameter of 300 mm and height of 46.5 mm

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction offers rotors designed with both drilled holes and slots on the braking surface. This combination improves water and gas evacuation during braking, reducing fade and maintaining consistent stopping power. The zinc black coating on the rotor hat provides corrosion resistance, extending the rotor's service life. These rotors are vented to enhance heat dissipation, making them suitable for demanding driving conditions on Subaru Forester, Legacy, Outback, and WRX vehicles.

Technical Specifications and Features

This rotor has a nominal thickness of 17 mm and a discard thickness of 15 mm, ensuring safe replacement intervals. The rotor's outside diameter measures 300 mm, with an overall height of 46.5 mm. It features a 5-lug bolt pattern with 13 mm diameter holes spaced on a 114.3 mm bolt circle diameter. The center hole diameter is 58 mm. The rotor surface is directional, meaning it is designed to rotate in a specific direction to maximize braking efficiency. The vented design helps dissipate heat more effectively than solid rotors, reducing the risk of brake fade during extended use.

Applications and Problem Solving

• Replacement for worn or warped rotors on Subaru Forester, Legacy, Outback, and WRX
• Improves heat dissipation to reduce brake fade under heavy braking
• Drilled and slotted surface helps evacuate water and brake dust for consistent braking
• Rust resistant coating prevents corrosion and extends rotor life
• Directional design enhances braking performance and pad contact

Installation Notes and Tips

Ensure the rotor is installed with the correct directional orientation as indicated by the surface design. Verify that the rotor thickness meets or exceeds the discard thickness of 15 mm before installation. Use proper torque specifications for the 5-lug bolt pattern with 13 mm diameter holes on a 114.3 mm bolt circle. Clean the rotor surface before installation to remove any protective coatings or contaminants. This rotor is compatible with specific Subaru models; confirm vehicle fitment prior to purchase.

Quality Assurance

Dynamite Friction manufactures this rotor with rust resistant zinc black coating on the hat and a plain disc finish to ensure durability and corrosion resistance. The vented design and precise machining meet OEM specifications for Subaru Forester, Legacy, Outback, and WRX models. While no explicit warranty information is provided, Dynamite Friction products are engineered to meet industry standards for safety and performance.
