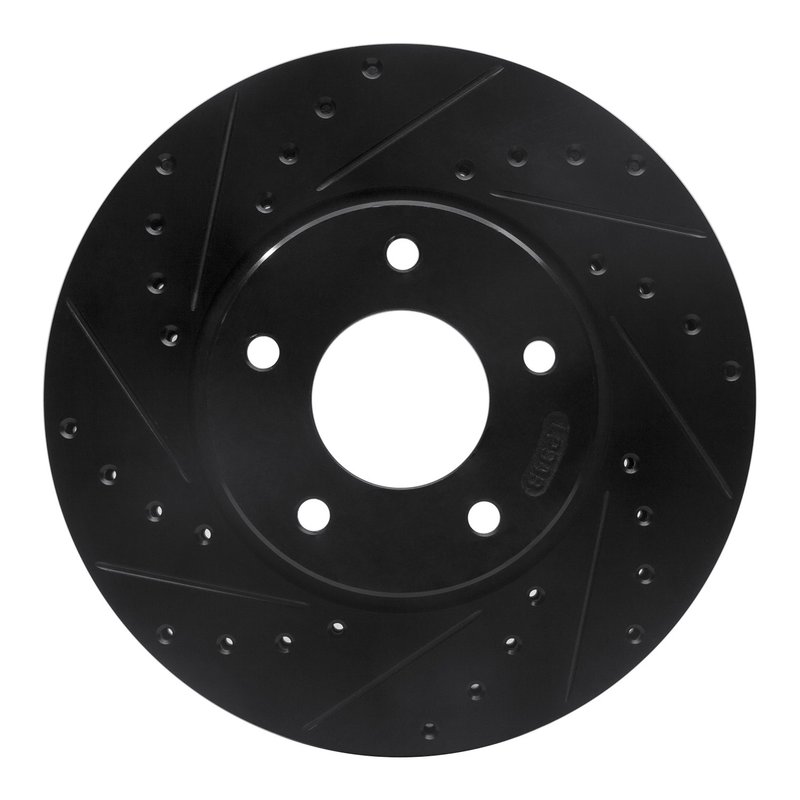

Dynamite Friction 633-20010L Disc Brake Rotor - Front Left

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-20010L) is engineered for Jaguar models including the Vanden Plas, XJ8, XJR, and XK8. This vented disc brake rotor features a directional, slotted and drilled surface designed to enhance braking performance and heat dissipation.

• Nominal thickness: 28 mm with a discard thickness of 26 mm
• Vented rotor design for improved cooling
• Directional slotted and drilled surface for debris removal and consistent braking
• Black zinc-coated hat finish for corrosion resistance
• 5 bolt holes with 13.3 mm diameter and 120.7 mm bolt circle diameter
• Overall diameter of 305 mm and height of 49.5 mm
• Rust resistant coating applied for extended rotor life

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that combine drilled holes and slots on the braking surface. This design aids in heat dissipation and gas venting, which can help maintain consistent braking under demanding conditions. The black zinc coating on the rotor hat provides additional protection against rust, making it suitable for vehicles like the Jaguar Vanden Plas, XJ8, XJR, and XK8 that require reliable stopping power and durability.

Technical Specifications and Features

This disc brake rotor is vented, allowing air to flow between the rotor surfaces to reduce heat buildup during braking. The rotor’s directional surface pattern, featuring both drilled holes and slots, helps to evacuate water, brake dust, and gases, improving brake pad contact and performance. The rotor measures 305 mm in outside diameter with a height of 49.5 mm, fitting precisely on Jaguar models with a 5-lug bolt pattern and 120.7 mm bolt circle diameter. The zinc black finish on the hat section enhances corrosion resistance, while the rust-resistant coating on the rotor surface extends service life.

Applications and Problem Solving

• Replacement rotor for worn or warped brake discs on Jaguar Vanden Plas, XJ8, XJR, and XK8
• Improves heat dissipation to reduce brake fade during extended braking
• Helps prevent rust and corrosion on braking surfaces and rotor hats
• Maintains consistent braking performance in wet or dusty conditions
• Addresses uneven pad wear caused by rotor surface imperfections

Installation Notes and Tips

Ensure the rotor is compatible with your Jaguar model by verifying the part number 633-20010L and bolt pattern specifications. Clean the hub mounting surface before installation to prevent runout. Use proper torque specifications on the 5 lug bolts to secure the rotor. Since this rotor features a directional surface, install it following the indicated rotation direction for optimal performance. Avoid touching the braking surface with bare hands to prevent contamination.

Quality Assurance

Dynamite Friction manufactures this rotor to meet OEM specifications for Jaguar vehicles, ensuring reliable fit and function. The rust-resistant coating and zinc black hat finish contribute to long-term durability. While specific warranty details are not provided, the rotor is designed to maintain performance and safety standards consistent with professional automotive replacement parts.
