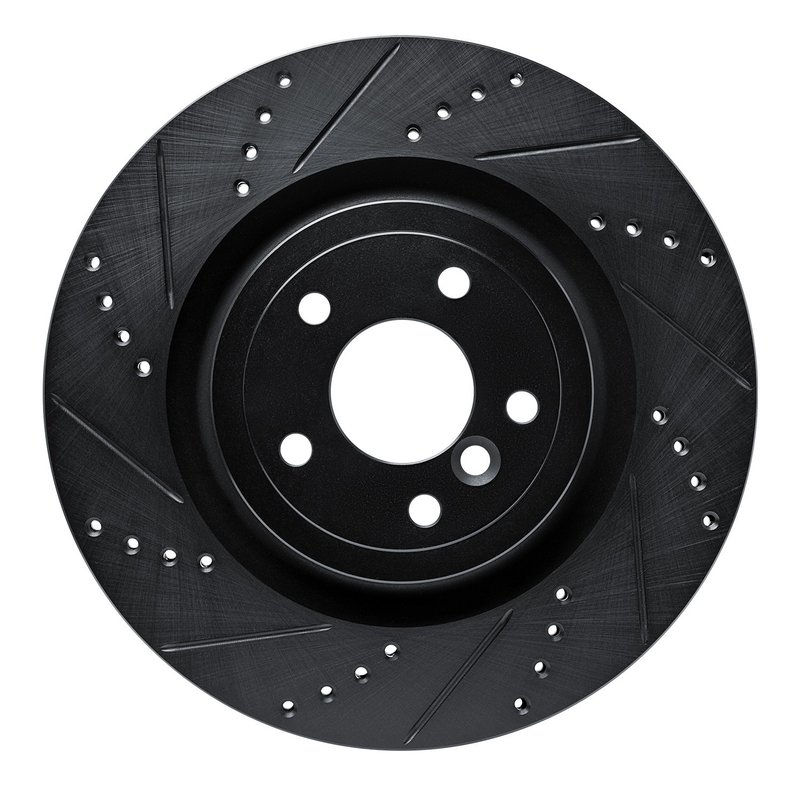

Dynamite Friction 633-20035L Disc Brake Rotor - Rear Left

Overview of the DFC Brake Rotor for Jaguar XE and XF

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-20035L) is engineered for Jaguar XE and XF models. This disc brake rotor combines a directional, drilled, and slotted surface design with corrosion-resistant features to support reliable braking performance.

• Directional drilled and slotted surface for improved heat dissipation
• Black zinc-coated hat finish for enhanced rust resistance
• Nominal thickness of 20 mm with a discard thickness of 18 mm
• 325 mm outside diameter and 42.3 mm height for precise fitment
• 5 bolt holes with 13.76 mm diameter and 108 mm bolt circle diameter
• Center hole diameter of 63.5 mm for accurate hub alignment

Details on the DFC Brake Rotor - Drilled and Slotted - Black Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that feature both drilled holes and slots on the braking surface. This design helps to reduce brake fade by improving heat dissipation and gas evacuation during braking. The black zinc coating on the rotor hat provides additional protection against rust, extending the rotor's service life. This product line is tailored for drivers seeking a balance between performance and durability in their braking components.

Technical Specifications and Features

This disc brake rotor is designed specifically for Jaguar XE and XF vehicles, ensuring compatibility and optimal performance. The rotor's nominal thickness is 20 mm, with a discard thickness of 18 mm, indicating when replacement is necessary. The rotor features a directional surface type with both drilled holes and slots, which enhances braking efficiency by allowing heat and debris to escape more effectively. The hat finish is zinc black, providing corrosion resistance, while the disc finish is plain. The rotor includes five bolt holes with a diameter of 13.76 mm and a bolt circle diameter of 108 mm, matching the OEM specifications for secure mounting.

Common Applications and Problem Solving

• Reduces brake fade during aggressive or prolonged braking
• Improves heat dissipation to maintain consistent braking performance
• Helps prevent rust and corrosion on the rotor hat area
• Addresses uneven brake pad wear caused by heat buildup
• Compatible replacement for worn or damaged rotors on Jaguar XE and XF

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 18 mm before installation. Clean the rotor surface to remove any protective coatings or contaminants prior to mounting. Verify bolt hole alignment with the vehicle’s hub using the 5-bolt pattern and 108 mm bolt circle diameter. Proper torque specifications should be followed to avoid warping. Directional rotors must be installed with the correct rotation direction to maintain performance benefits.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor to meet or exceed OEM standards for fit and function on Jaguar XE and XF models. The rust-resistant zinc black coating on the rotor hat enhances durability in various driving conditions. While specific warranty details are not provided, Dynamite Friction products typically undergo rigorous quality control to ensure reliability and safety.
