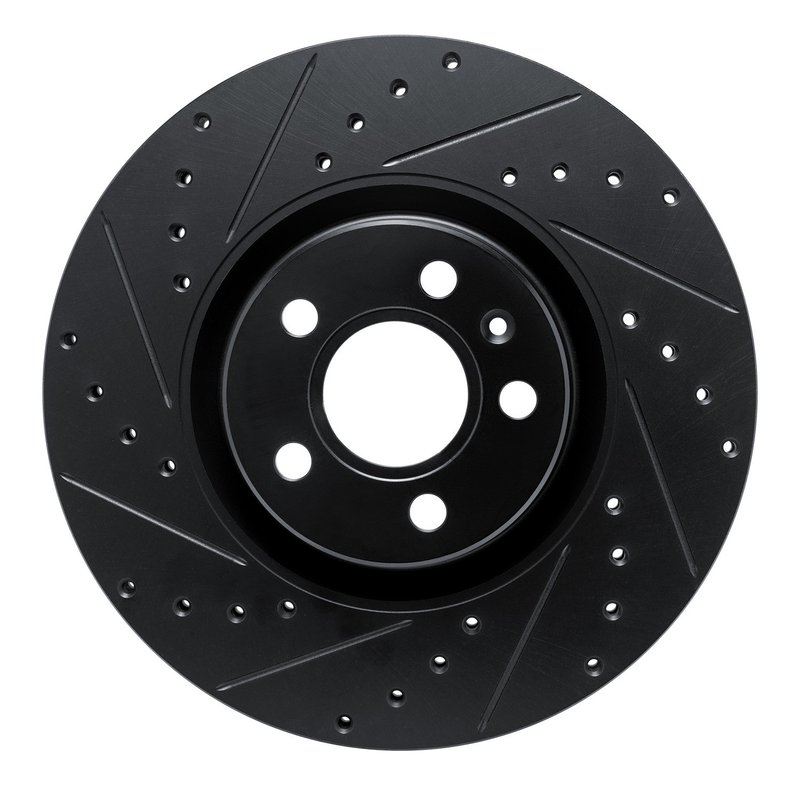

Dynamite Friction 633-27059L Disc Brake Rotor - Front Left

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (Part Number 633-27059L) is engineered for reliable braking performance on select Volvo models. Designed with a vented, directional surface, this rotor enhances heat dissipation and braking consistency for vehicles like the Volvo S60, S90, V60, V90, XC40, and XC60.

• Compatible with Volvo S60, S90, V60, V90, XC40, and XC60
• Part Number: 633-27059L
• Vented disc brake rotor with drilled and slotted surface
• Directional braking surface for optimized performance
• Rust-resistant zinc black hat finish
• Nominal thickness: 28 mm; discard thickness: 25.5 mm
• Outside diameter: 322 mm; height: 48.3 mm
• 5 bolt holes with 15.8 mm diameter and 108 mm bolt circle diameter

DFC Brake Rotor - Drilled and Slotted - Black Product Line

The DFC Brake Rotor - Drilled and Slotted - Black line from Dynamite Friction focuses on rotors that combine drilled holes and slots on a vented disc design. This configuration improves heat dissipation and helps reduce brake fade under demanding conditions. The zinc black coating on the rotor hat provides corrosion resistance, extending rotor life and maintaining performance on compatible Volvo vehicles.

Technical Specifications and Features

This disc brake rotor features a vented design with a 322 mm outside diameter and a height of 48.3 mm, allowing for efficient heat management during braking. The rotor surface is both drilled and slotted, which aids in gas and dust evacuation, improving pad bite and reducing brake fade. The directional surface type ensures proper orientation for optimal braking performance. The rotor’s nominal thickness is 28 mm, with a discard thickness of 25.5 mm, indicating when replacement is necessary. The zinc black finish on the hat offers rust resistance, helping maintain structural integrity over time. It includes five bolt holes with a diameter of 15.8 mm and a bolt circle diameter of 108 mm, designed to fit the specified Volvo models precisely.

Applications and Problem Solving

• Replaces worn or warped rotors on Volvo S60, S90, V60, V90, XC40, and XC60
• Addresses brake fade caused by excessive heat buildup
• Improves braking response and pad bite with slotted and drilled surface
• Prevents rust and corrosion on rotor hats for longer service life
• Maintains consistent braking performance under heavy use

Installation Notes and Tips

Ensure the rotor is installed with the directional surface oriented correctly according to the vehicle’s rotation direction. Verify that the rotor thickness is above the discard thickness of 25.5 mm before installation. Clean the rotor surface to remove any protective coatings or residues prior to mounting. Use proper torque specifications for the 5 lug bolts to secure the rotor firmly. It is recommended to inspect brake pads and hardware during rotor replacement for optimal braking system performance.

Quality Assurance

Dynamite Friction manufactures the DFC Brake Rotor - Drilled and Slotted - Black to meet or exceed OEM specifications for fit and function on compatible Volvo models. The rust-resistant zinc black coating and vented rotor design contribute to durability and consistent braking performance. While no specific warranty information is provided, the product is engineered for reliable service life when installed and maintained according to manufacturer guidelines.
