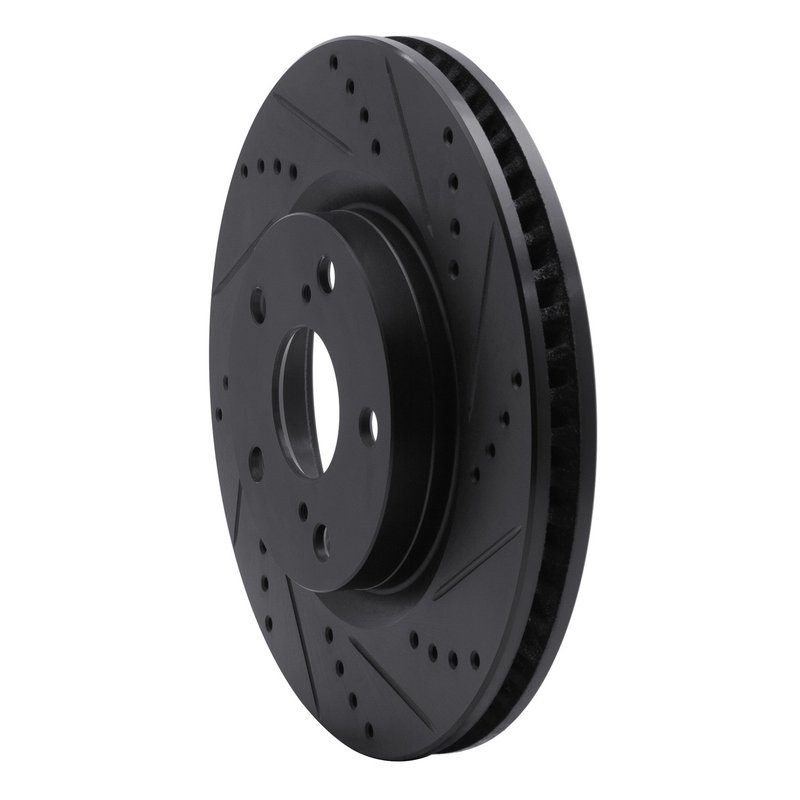

Dynamite Friction 633-31075R Disc Brake Rotor - Rear Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-31075R) is engineered for BMW models including the 525xi, 528i xDrive, 528xi, 530xi, and 535i xDrive. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance braking performance and heat dissipation.

• Compatible with BMW 525xi, 528i xDrive, 528xi, 530xi, 535i xDrive, and 535xi
• Part Number: 633-31075R
• Vented disc brake rotor with drilled and slotted surface
• Directional brake surface for optimized braking
• Rust resistant zinc black hat finish
• Nominal thickness: 19.9 mm; discard thickness: 18.4 mm
• Outside diameter: 320 mm; overall height: 86.1 mm
• 5 bolt holes with 14.8 mm diameter and 120 mm bolt circle diameter

Detailed Product Description

The DFC Brake Rotor - Drilled and Slotted - Black from Dynamite Friction is designed to meet the specific braking requirements of select BMW vehicles. Its vented design improves airflow to reduce heat buildup during braking, while the drilled and slotted surface helps evacuate gases, dust, and water for consistent stopping power. The directional surface pattern ensures proper rotation and maximizes performance. The rotor’s zinc black hat finish provides corrosion resistance, extending the rotor’s service life. With a nominal thickness of 19.9 mm and a discard thickness of 18.4 mm, this rotor maintains structural integrity under demanding conditions. The 5-bolt hole configuration with a 120 mm bolt circle diameter matches the factory specifications for the listed BMW models.

DFC Brake Rotor - Drilled and Slotted - Black Product Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that combine drilled holes and slots with a corrosion-resistant black zinc finish. This product line is engineered to provide improved heat dissipation and braking consistency, particularly for performance-oriented vehicles like the BMW 5 Series models listed. The vented rotor design and directional surface pattern are key features of this line, aimed at maintaining braking efficiency under various driving conditions.

Applications and Problem Solving

• Reduces brake fade caused by excessive heat buildup
• Improves wet weather braking by channeling water away from the rotor surface
• Minimizes brake dust accumulation for cleaner braking components
• Restores braking performance on BMW 525xi, 528i xDrive, 528xi, 530xi, and 535i xDrive vehicles
• Prevents rust and corrosion with zinc black hat finish

Installation Notes and Tips

• Ensure rotor part number 633-31075R matches vehicle specifications before installation
• Follow manufacturer torque specifications for the 5 lug bolts with 14.8 mm diameter
• Check rotor thickness before installation; replace if below discard thickness of 18.4 mm
• Install rotors with the directional surface pattern rotating correctly for optimal performance

Quality Assurance

Dynamite Friction manufactures the 633-31075R rotor to meet OEM standards for fit, form, and function. The rust resistant coating and zinc black finish contribute to durability and corrosion resistance. While no specific warranty information is provided, this rotor is designed to maintain consistent braking performance and structural integrity throughout its service life.
