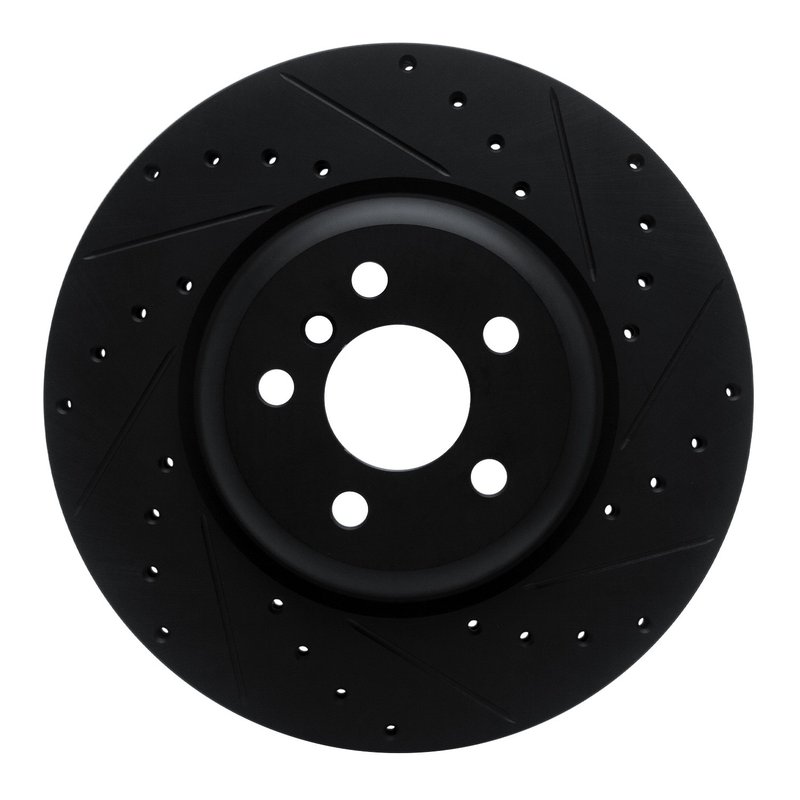

Dynamite Friction 633-31130R Disc Brake Rotor - Rear Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-31130R) is engineered for enhanced braking performance and durability. Designed specifically for select BMW and Toyota models, this vented disc brake rotor offers improved heat dissipation and consistent stopping power under demanding conditions.

• Drilled and slotted surface for efficient heat and gas dissipation
• Vented rotor design to reduce brake fade
• Rust-resistant zinc black hat finish for corrosion protection
• Directional brake surface optimized for performance
• Compatible with 5-lug bolt pattern and 345mm outside diameter

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line from Dynamite Friction focuses on rotors that combine drilled holes and slots to improve braking efficiency and rotor cooling. This product line features rotors with a zinc black hat finish for enhanced rust resistance and a directional surface design to maintain optimal brake pad contact. The 633-31130R rotor exemplifies these characteristics, providing reliable performance for vehicles requiring vented rotors with precise fitment.

Technical Specifications and Features

This disc brake rotor has a nominal thickness of 24 mm and a discard thickness of 22.4 mm, ensuring a long service life before replacement is necessary. The rotor measures 345 mm in outside diameter with an overall height of 64.1 mm. It features a 5-bolt hole pattern with a bolt circle diameter of 112 mm and bolt hole diameters of 16.7 mm, matching the stud/lug hole specifications for secure mounting. The rotor’s surface is both drilled and slotted, which helps to evacuate brake dust, gases, and water, improving braking consistency. The vented design further aids in heat dissipation, reducing the risk of brake fade during extended use.

Compatible Vehicles and Applications

• Compatible with BMW models including 230i, 330i, 430i, 530i, 540i, 640i xDrive Gran Turismo, 740i, 750i, 840i, M240i, M340i, M440i, M550i xDrive, X3, X4, X5, X6, X7, and Z4
• Compatible with Toyota models such as GR Supra, i4, i5, and iX
• Ideal for drivers seeking replacement rotors that maintain factory specifications and performance

Common Issues Addressed by This Rotor

• Brake fade caused by excessive heat buildup
• Uneven brake pad wear due to poor rotor surface design
• Corrosion and rust on rotor hats affecting longevity
• Reduced braking efficiency in wet conditions
• Vibration or noise from warped or damaged rotors

Installation Notes and Tips

Ensure the rotor surface is clean and free of contaminants before installation. Verify the bolt hole pattern and diameter match your vehicle’s specifications. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Proper torque specifications should be followed when mounting the rotor to avoid warping. Directional rotors like this one must be installed with the correct rotation direction for effective performance.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor to meet or exceed OEM standards for fit, form, and function. The rust-resistant zinc black coating on the hat extends the rotor’s service life by protecting against corrosion. While specific warranty details are not provided, Dynamite Friction products typically undergo rigorous quality control to ensure reliability and durability in demanding driving conditions.
