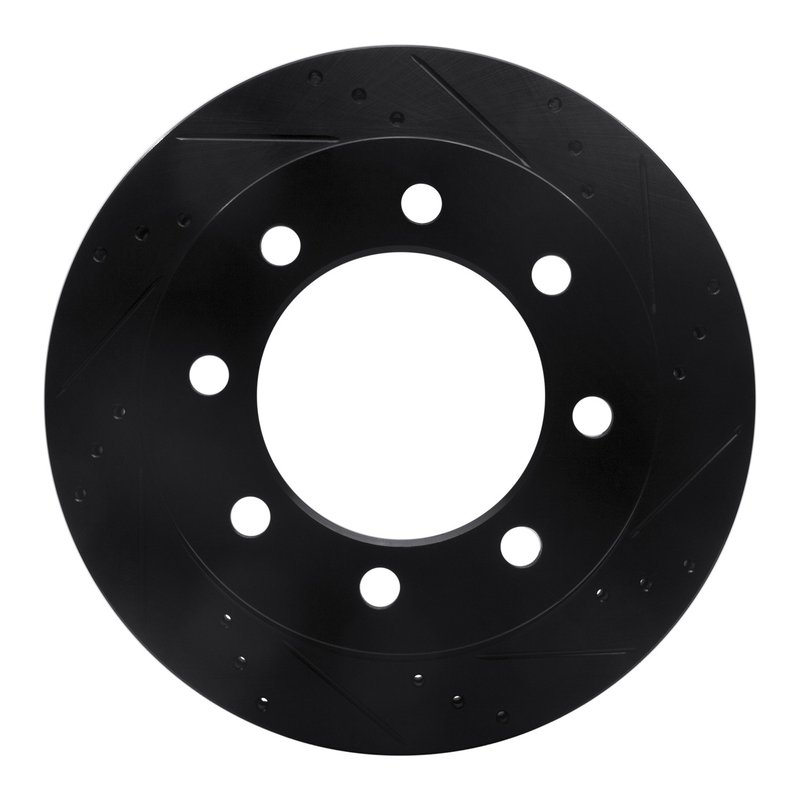

Dynamite Friction 633-40103R Disc Brake Rotor - Rear Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-40103R) is engineered for reliable braking performance on Dodge Ram 1500, Ram 2500, and Ram 3500 models. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance heat dissipation and maintain consistent stopping power under demanding conditions.

• Compatible with Dodge Ram 1500, Ram 2500, and Ram 3500
• Part Number: 633-40103R
• Vented disc brake rotor with drilled and slotted surface
• Nominal thickness of 30 mm and discard thickness of 28.39 mm
• Directional brake surface for optimized performance
• Zinc black hat finish with rust-resistant coating
• Eight bolt holes with 17 mm diameter and 165.1 mm bolt circle diameter
• Overall diameter of 352.5 mm and height of 131 mm

DFC Brake Rotor - Drilled and Slotted - Black Product Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that combine drilled holes and slots to improve brake pad bite and reduce heat buildup. The black zinc coating on the hat provides corrosion resistance, extending rotor life. This product line is designed to meet the demands of heavy-duty trucks like the Dodge Ram series, offering a balance of durability and performance.

Technical Specifications and Features

This rotor is vented to allow air circulation between the rotor faces, which helps dissipate heat more effectively during braking. The directional slotted and drilled surface improves water and debris evacuation, reducing brake fade. With a nominal thickness of 30 mm and a discard thickness of 28.39 mm, the rotor maintains structural integrity throughout its service life. The zinc black hat finish and rust-resistant coating protect against corrosion, especially important for trucks exposed to harsh environments.

Applications and Problem Solving

• Designed for Dodge Ram 1500, Ram 2500, and Ram 3500 brake system upgrades or replacements
• Helps reduce brake fade during heavy towing or hauling
• Improves braking performance in wet or muddy conditions
• Addresses rotor corrosion issues with rust-resistant coating
• Maintains consistent braking feel under high thermal stress

Installation Notes and Tips

Ensure the rotor is installed on compatible Dodge Ram models as specified. Verify bolt hole alignment with the eight 17 mm diameter holes and 165.1 mm bolt circle diameter. Proper torque specifications should be followed to avoid warping. It is recommended to inspect brake pads and hardware during installation to ensure optimal performance.

Quality Assurance

Dynamite Friction manufactures this rotor to meet industry standards for durability and performance. The rust-resistant coating and zinc black hat finish contribute to long-term reliability. Please consult product documentation or contact the manufacturer for warranty details specific to part number 633-40103R.
