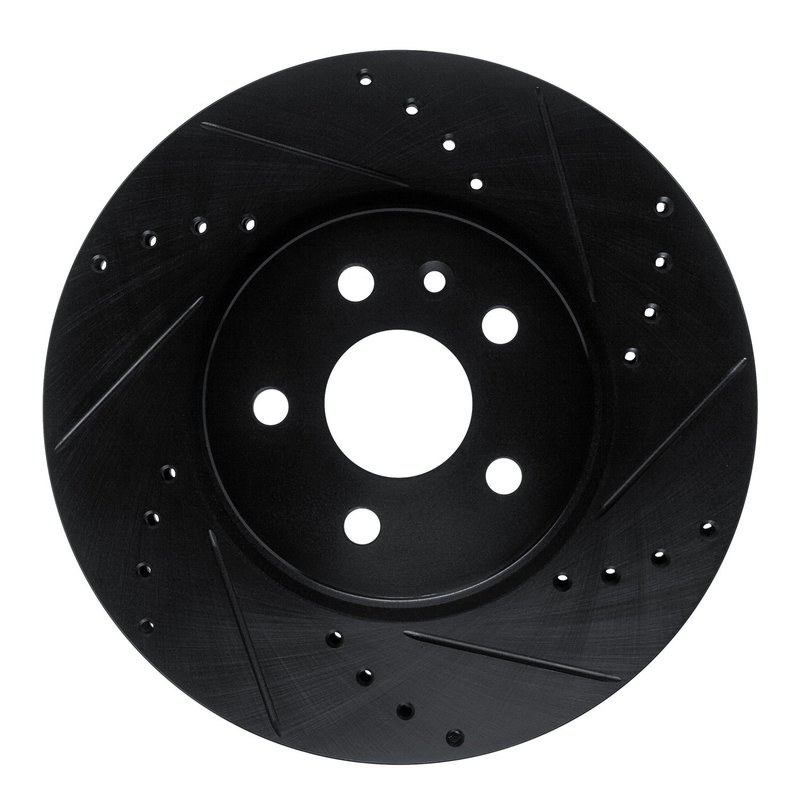

Dynamite Friction 633-45020R Disc Brake Rotor - Front Right

Front Right Drilled and Slotted Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black, part number 633-45020R, is a vented front right disc brake rotor built for select Buick Encore and Chevrolet Trax applications. It features a slotted X drilled surface, a zinc black hat finish, and a rust resistant coating for added corrosion protection.

With a 300 mm outside diameter, 26 mm nominal thickness, and 23 mm discard thickness, this rotor is sized for the specified front right position. The directional braking surface and 5-lug, 105 mm bolt circle layout support the listed fitments for 2013-2022 Buick Encore and Chevrolet Trax models.

Key Features

• Part number 633-45020R
• Front right disc brake rotor for select Buick Encore and Chevrolet Trax models
• Slotted X drilled surface for consistent pad contact and heat management
• Vented rotor design
• Zinc black hat finish with rust resistant coating
• 300 mm outside diameter
• 26 mm nominal thickness and 23 mm discard thickness
• 5 bolt holes, 105 mm bolt circle, 60.1 mm center hole
• Directional brake surface

Product Details

The DFC Brake Rotor - Drilled and Slotted - Black line focuses on application-specific brake rotor construction with corrosion protection and a performance-oriented surface pattern. This rotor is a direct fit for the front right position on 2013-2017 Buick Encore, 2018-2021 Buick Encore, 2022 Buick Encore, 2013-2017 Chevrolet Trax, and 2018-2022 Chevrolet Trax. For 2018-2022 Chevrolet Trax and 2018-2021 Buick Encore, front pads with spreader spring tabs are required for installation. The part number 633-45020R is also useful when searching for a front right drilled and slotted rotor for Buick Encore or Chevrolet Trax brake service.

Common Problems This Rotor Can Address

• Worn front right brake rotor replacement needs
• Rotor surface scoring or uneven wear
• Brake pulsation caused by rotor condition
• Corrosion on the rotor hat or exposed surfaces
• Brake service on a 5-lug, 105 mm bolt circle front hub

Installation Notes and Tips

Verify rotor thickness, hub dimensions, and directional orientation before installation. This rotor is listed for the front right position only, so confirm side and model year before ordering. On 2018-2022 Chevrolet Trax and 2018-2021 Buick Encore, front pads with spreader spring tabs are required for installation. The part number 633-45020R should be matched to the vehicle’s brake configuration and wheel-end specifications during service.

Quality Assurance

This Dynamite Friction rotor includes a rust resistant coating and a zinc black hat finish to help protect exposed surfaces during normal brake service and operation. The DFC Brake Rotor - Drilled and Slotted - Black line is built around application-specific fitment and dimensional accuracy for the listed Buick Encore and Chevrolet Trax vehicles.
