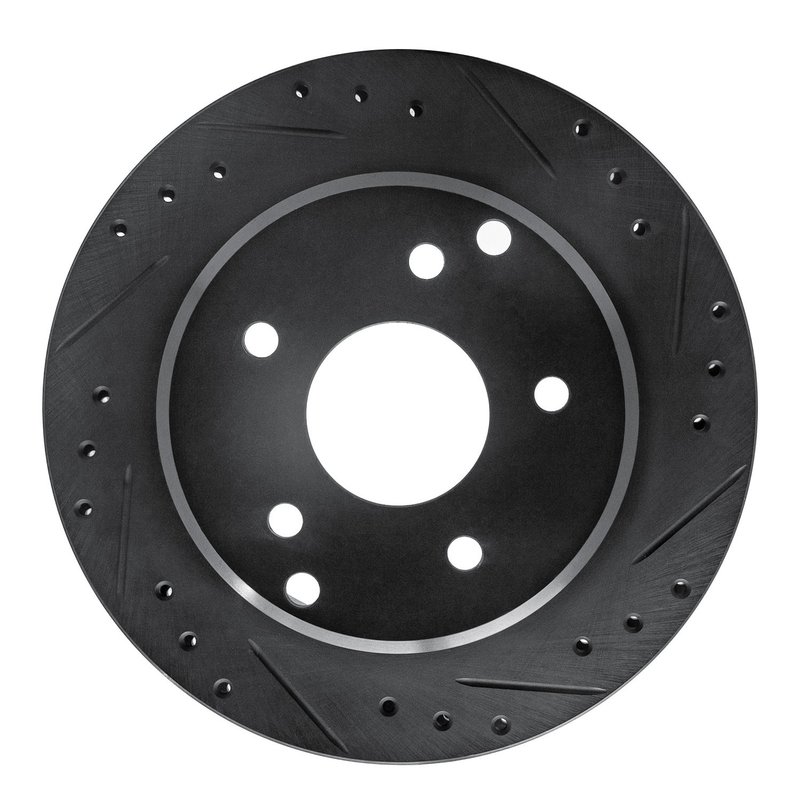

Dynamite Friction 633-47016R Disc Brake Rotor - Rear Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-47016R) is engineered for Chevrolet Corvette models requiring reliable braking performance. This vented disc brake rotor features a directional, slotted and drilled surface designed to enhance heat dissipation and maintain consistent stopping power under demanding conditions.

• Compatible with Chevrolet Corvette vehicles
• Directional slotted and drilled surface for improved brake cooling
• Vented rotor design to reduce heat buildup
• Black zinc-coated hat finish for corrosion resistance
• Nominal thickness of 20 mm with discard thickness at 18.4 mm
• Five bolt holes with 13.1 mm diameter and 120.7 mm bolt circle diameter
• Overall diameter of 292 mm and height of 63.8 mm

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction offers rotors with enhanced surface features including drilled holes and slots. These design elements help evacuate gases, dust, and water from the braking surface, improving brake pad contact and reducing fade. The black zinc coating on the rotor hat provides additional rust resistance, extending the rotor's service life. This product line is tailored for performance-oriented applications such as the Chevrolet Corvette, where consistent braking under high stress is critical.

Technical Specifications and Features

This disc brake rotor is vented to allow airflow between the rotor faces, which helps dissipate heat generated during braking. The rotor’s directional surface pattern combines drilled holes and slots to maintain clean pad contact and improve wet-weather braking. The rotor measures 292 mm in outside diameter with a height of 63.8 mm, and it features a center hole diameter of 70.6 mm. The bolt pattern includes five holes with a diameter of 13.1 mm spaced on a 120.7 mm bolt circle diameter, matching Chevrolet Corvette specifications precisely.

Applications and Problem Solving

• Reduces brake fade during aggressive driving or track use
• Improves braking performance in wet or dusty conditions
• Helps prevent rotor warping by enhancing heat dissipation
• Resists rust and corrosion for longer rotor life
• Maintains consistent brake pad contact for smoother stops

Installation Notes and Tips

Ensure the rotor surface is clean and free of any protective coatings before installation. Verify that the bolt hole pattern and rotor dimensions match the Chevrolet Corvette specifications. It is recommended to replace brake pads when installing new rotors to ensure optimal braking performance. Proper torque specifications should be followed when securing the rotor to avoid warping or uneven wear.

Quality Assurance

Dynamite Friction manufactures this rotor to meet or exceed OEM standards for fit and function. The black zinc coating on the rotor hat provides rust resistance to extend service life. While no specific warranty information is provided, Dynamite Friction products are designed for durability and consistent performance in demanding automotive applications.
