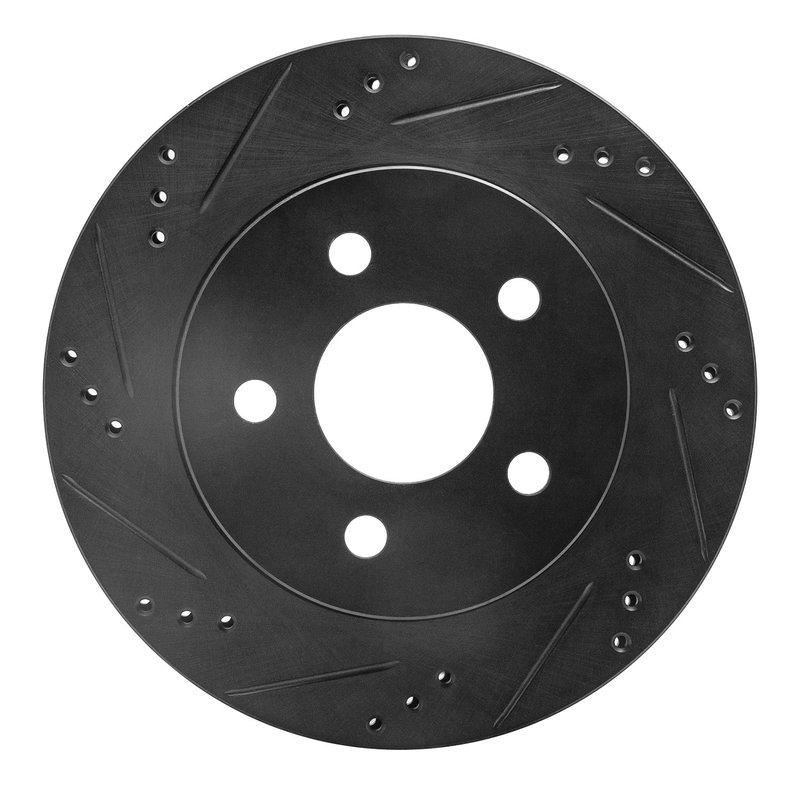

Dynamite Friction 633-47025L Disc Brake Rotor - Rear Left

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-47025L) is engineered for Chevrolet Camaro and Pontiac Firebird models. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance braking performance and heat dissipation.

• Compatible with Chevrolet Camaro and Pontiac Firebird
• Part Number: 633-47025L
• Directional, slotted, and drilled rotor surface
• Vented rotor design for improved cooling
• Rust-resistant zinc black hat finish
• Nominal thickness: 20 mm; discard thickness: 18.4 mm
• 5 bolt holes with 16.2 mm diameter and 118 mm bolt circle diameter
• Overall diameter: 293 mm; height: 49.1 mm

DFC Brake Rotor - Drilled and Slotted - Black Product Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that combine drilled holes and precision slots to improve water, gas, and dust evacuation from the braking surface. This design helps maintain consistent braking performance under demanding conditions. The zinc black hat finish provides corrosion resistance, extending rotor life while maintaining a clean appearance.

Detailed Product Description

This disc brake rotor is vented to allow air circulation between the rotor surfaces, reducing heat buildup during braking. The directional slotted and drilled surface improves pad bite and helps channel away debris and moisture, which is critical for maintaining effective braking on Chevrolet Camaro and Pontiac Firebird vehicles. The rotor’s nominal thickness is 20 mm, with a discard thickness of 18.4 mm, ensuring a clear maintenance threshold. The rotor features five bolt holes with a 16.2 mm diameter and a 118 mm bolt circle diameter, matching factory specifications for secure fitment. The zinc black finish on the rotor hat offers rust resistance, helping to prevent corrosion in harsh environments.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Chevrolet Camaro and Pontiac Firebird
• Improves braking performance in wet or dusty conditions
• Reduces brake fade caused by excessive heat buildup
• Addresses rotor corrosion issues with rust-resistant coating
• Maintains consistent braking feel with directional slotted and drilled design

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 18.4 mm before installation. Clean the rotor surface to remove any protective coating or debris prior to mounting. Verify bolt hole alignment with the 5-lug, 118 mm bolt circle pattern on your Chevrolet Camaro or Pontiac Firebird. Proper torque specifications should be followed to avoid rotor warping. It is recommended to replace brake pads when installing new rotors to ensure optimal braking performance.

Quality Assurance

Dynamite Friction manufactures this rotor to meet or exceed OEM specifications for fit, form, and function. The rust-resistant zinc black finish enhances durability against corrosion. While no specific warranty information is provided, the rotor’s design and materials support reliable performance for Chevrolet Camaro and Pontiac Firebird brake systems.
