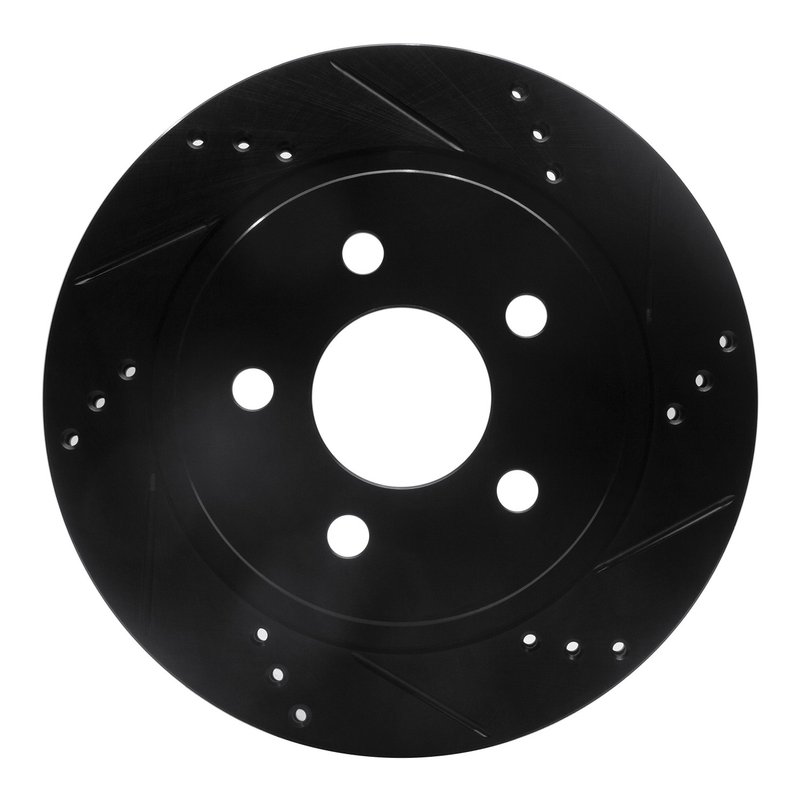

Dynamite Friction 633-47025R Disc Brake Rotor - Rear Right

Overview of the DFC Brake Rotor - Drilled and Slotted - Black

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-47025R) is engineered for Chevrolet Camaro and Pontiac Firebird models. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance braking performance and heat dissipation.

• Compatible with Chevrolet Camaro and Pontiac Firebird
• Part number: 633-47025R
• Vented disc brake rotor with drilled and slotted surface
• Nominal thickness: 20 mm; discard thickness: 18.4 mm
• Outside diameter: 293 mm; overall height: 49.1 mm
• Hat finish with zinc black coating for rust resistance
• 5 bolt holes with 16.2 mm diameter and 118 mm bolt circle diameter
• Directional brake surface for optimized performance

Detailed Product Features and Specifications

This Dynamite Friction rotor is part of the DFC Brake Rotor - Drilled and Slotted - Black line, which focuses on providing enhanced braking through improved heat dissipation and debris removal. The rotor’s vented design allows air to flow between the rotor faces, reducing heat buildup during heavy braking. The drilled holes and slots on the surface help evacuate gases and dust, maintaining consistent brake pad contact and reducing brake fade.

The rotor measures 293 mm in outside diameter with an overall height of 49.1 mm. It has a nominal thickness of 20 mm and a discard thickness of 18.4 mm, ensuring a clear maintenance threshold. The hat section is finished with a zinc black coating to resist corrosion, extending the rotor’s service life. The rotor features five bolt holes with a diameter of 16.2 mm arranged on a 118 mm bolt circle diameter, matching the factory specifications for Chevrolet Camaro and Pontiac Firebird models.

Applications and Problem Solving

• Replacement for worn or warped rotors on Chevrolet Camaro and Pontiac Firebird
• Improves braking performance under high heat conditions
• Reduces brake fade during aggressive driving or towing
• Helps prevent rust and corrosion on the rotor surface
• Maintains consistent brake pad contact for smoother stops

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 18.4 mm before installation. Clean the rotor surface to remove any protective coating or debris prior to mounting. Verify bolt hole alignment with the vehicle’s hub using the 118 mm bolt circle diameter and 16.2 mm bolt hole diameter. Proper torque specifications should be followed to avoid rotor warping. This rotor is directional; install with the correct orientation to maintain optimal performance.

Quality Assurance and Warranty

Dynamite Friction manufactures the DFC Brake Rotor - Drilled and Slotted - Black to meet or exceed OEM standards for fit and function. The rust-resistant zinc black hat finish adds durability against corrosion. While specific warranty details are not provided, Dynamite Friction products typically undergo rigorous quality control to ensure reliability and consistent braking performance for Chevrolet Camaro and Pontiac Firebird applications.
