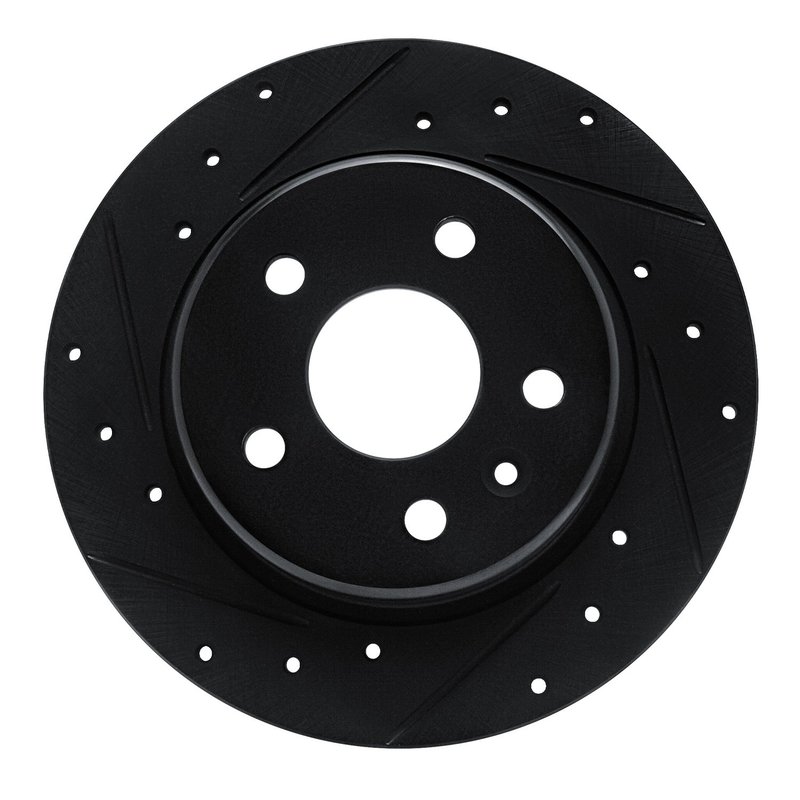

Dynamite Friction 633-47052L Disc Brake Rotor - Rear Left

Rear Left Drilled and Slotted Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black, part number 633-47052L, is a rear left disc brake rotor built for specific Chevrolet applications. It combines a slotted X drilled surface with a black zinc hat finish and rust-resistant coating for a clean, service-ready replacement.

Compatible With 2016-2023 Chevrolet Bolt EV, 2022-2023 Chevrolet Bolt EUV, 2016-2019 Chevrolet Cruze, and 2016-2019 Chevrolet Volt in the rear left position, this rotor is sized for vehicles that use a 5-lug, 105 mm bolt circle setup.

Key Features

• Part number 633-47052L rear left disc brake rotor
• Slotted X drilled surface type for directional brake surface applications
• Solid rotor design
• Outside diameter: 264 mm
• Nominal thickness: 10 mm
• Discard thickness: 8 mm
• Center hole diameter: 60 mm
• 5 bolt holes with 14 mm bolt hole diameter
• Black zinc hat finish with rust-resistant coating
• Disc finish: plain

Product Details

The DFC Brake Rotor - Drilled and Slotted - Black line focuses on rotor construction and corrosion protection for everyday braking service. This rotor uses a directional slotted and drilled braking surface to match the specified rear left application, while the black zinc hat finish helps maintain a cleaner appearance around the hub area. The 264 mm outside diameter, 10 mm nominal thickness, and 8 mm discard thickness provide the dimensional reference needed when matching the correct replacement rotor for Chevrolet Bolt EV, Bolt EUV, Cruze, and Volt models.

This part number, 633-47052L, is listed for rear left use only and should be matched to the vehicle’s brake configuration before ordering. It cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Brake Issues This Rotor Can Address

• Worn rear rotor surface from normal brake use
• Rotor corrosion at the hat and mounting area
• Brake pulsation caused by uneven rotor wear
• Reduced braking consistency from a damaged or below-spec rotor
• Noise related to an uneven or scored braking surface

Installation Notes and Tips

Verify rear left fitment by year, model, and brake package before installation. This rotor is listed for 2016-2023 Chevrolet Bolt EV, 2022-2023 Chevrolet Bolt EUV, 2016-2019 Chevrolet Cruze with Chevrolet Performance Upgraded Brakes (300mm front rotors), 2016-2019 Chevrolet Cruze with Standard Brakes (276mm front rotors), and 2016-2019 Chevrolet Volt. Confirm the 5-lug, 105 mm bolt circle and 60 mm center hole match the vehicle hub before service.

For best results, inspect pads, caliper condition, and hub mounting surfaces during rotor replacement. Follow the vehicle manufacturer’s service procedure for torque and bedding after installation.

Quality Assurance

Dynamite Friction supplies application-specific brake components with published dimensional specifications to support accurate fitment selection. The black zinc finish and rust-resistant coating add corrosion protection to the rotor’s exposed surfaces.
