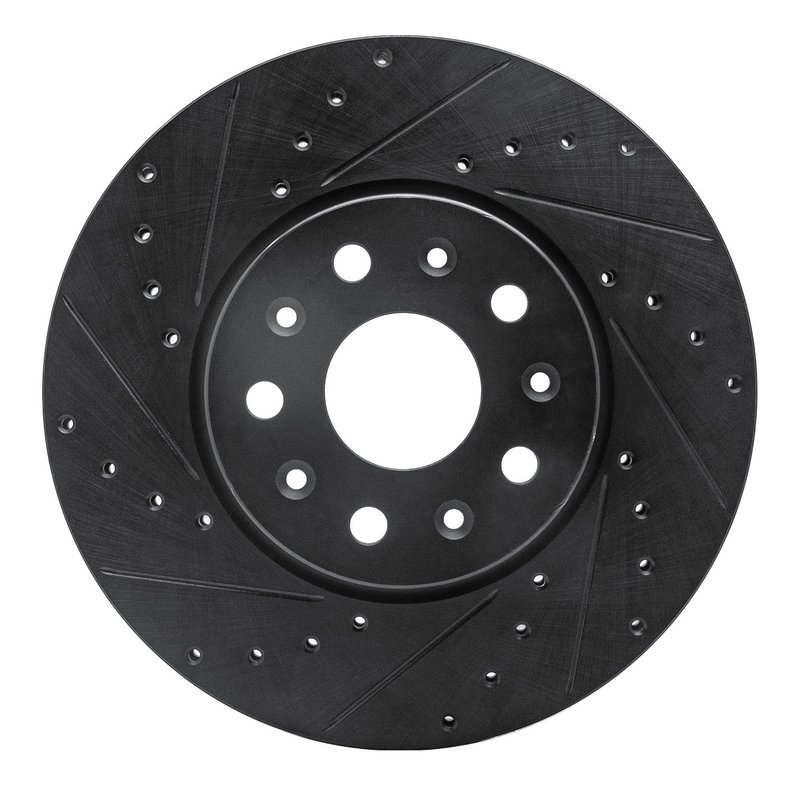

Dynamite Friction 633-47055L Disc Brake Rotor - Front Left

Overview of the DFC Brake Rotor - Drilled and Slotted - Black

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-47055L) is engineered for reliable braking performance on select Cadillac and Chevrolet vehicles. Designed specifically for models like the Camaro and CT5, this vented disc brake rotor offers enhanced heat dissipation and improved stopping power.

• Compatible with Cadillac CT5 and Chevrolet Camaro
• Directional drilled and slotted surface for optimized brake pad contact
• Vented rotor design to reduce heat buildup
• Rust-resistant zinc black hat finish for durability
• Nominal thickness of 28 mm with a discard thickness of 26 mm
• 5 bolt holes with 16 mm diameter and 120 mm bolt circle diameter
• Overall diameter of 321 mm and height of 61.9 mm

Product Line Details: DFC Brake Rotor - Drilled and Slotted - Black

The DFC Brake Rotor - Drilled and Slotted - Black line from Dynamite Friction focuses on rotors that combine drilled holes and slots on the braking surface. This design helps to evacuate gases, dust, and water more efficiently, which can improve braking consistency under demanding conditions. The black zinc coating on the rotor hat enhances corrosion resistance, extending the rotor's service life on vehicles such as the Chevrolet Camaro and Cadillac CT5.

Technical Specifications and Features

This disc brake rotor features a vented design with a directional surface pattern that includes both drilled holes and slots. The rotor's nominal thickness is 28 mm, with a discard thickness of 26 mm, ensuring clear service limits for maintenance. The rotor measures 321 mm in outside diameter and 61.9 mm in overall height, fitting precisely on vehicles with a 5-lug bolt pattern and 120 mm bolt circle diameter. The zinc black hat finish provides rust resistance, while the plain disc finish maintains a smooth braking surface.

Applications and Problem Solving

• Improves heat dissipation to reduce brake fade during aggressive driving
• Helps maintain consistent braking performance in wet or dusty conditions
• Reduces brake pad glazing by channeling away debris and gases
• Prevents premature rotor corrosion with rust-resistant coating
• Ensures proper fitment on Cadillac CT5 and Chevrolet Camaro models

Installation Notes and Tips

When installing the 633-47055L rotor, verify the rotor thickness to ensure it meets the minimum discard thickness of 26 mm. Properly torque the 5 lug bolts to the manufacturer’s specifications using the 16 mm bolt holes and 120 mm bolt circle diameter. The directional drilled and slotted surface requires correct orientation to maintain optimal braking performance. Inspect brake pads for wear and replace if necessary to complement the rotor’s design.

Quality Assurance

Dynamite Friction manufactures the DFC Brake Rotor - Drilled and Slotted - Black to meet or exceed OEM standards for fit, form, and function. The rust-resistant zinc black coating on the rotor hat enhances durability. While specific warranty details are not provided, this rotor is engineered for consistent performance on compatible Cadillac and Chevrolet vehicles, including the Camaro and CT5.
