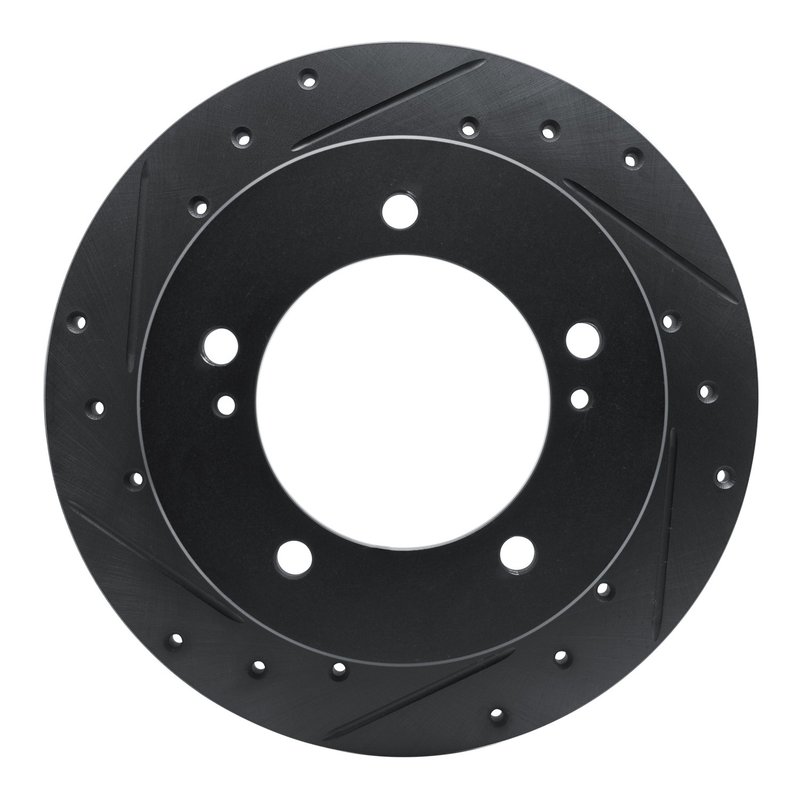

Dynamite Friction 633-47058L Disc Brake Rotor - Front Left

Reliable Performance for Chevrolet, Geo, and Suzuki Vehicles

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (Part Number 633-47058L) is engineered to provide consistent braking performance for select Chevrolet, Geo, and Suzuki models. Designed specifically for vehicles like the Suzuki Samurai, Geo Tracker, and Chevrolet Sidekick, this rotor offers enhanced heat dissipation and improved stopping power.

• Part Number: 633-47058L
• Disc Type: Solid, drilled and slotted surface
• Disc Finish: Plain with zinc black hat finish
• Rust Resistant Coating for extended durability
• Directional brake surface for optimized performance
• Dimensions: 290 mm outside diameter, 46.2 mm overall height
• Bolt Pattern: 5 lug holes with 12.75 mm diameter, 139.7 mm bolt circle diameter
• Nominal Thickness: 10 mm with discard thickness at 8 mm

About the DFC Brake Rotor - Drilled and Slotted - Black Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that combine drilled holes and slots to improve brake pad bite and heat dissipation. The black zinc coating on the rotor hat enhances corrosion resistance, making these rotors suitable for vehicles exposed to varying weather conditions. This product line is designed to meet the demands of drivers seeking reliable braking components for their Chevrolet, Geo, and Suzuki vehicles.

Technical Details and Specifications

This solid disc brake rotor features a 290 mm outside diameter and an overall height of 46.2 mm, ensuring proper fitment and compatibility with the specified vehicle models. The rotor’s surface is both drilled and slotted, which helps reduce brake fade by allowing gases and debris to escape during braking. The rotor hat is finished with a zinc black coating to resist rust and corrosion, extending the rotor’s service life. The bolt hole diameter and stud/lug hole diameter are both 12.75 mm, with a 5-lug hole configuration and a bolt circle diameter of 139.7 mm, matching the factory specifications for the Suzuki Samurai, Geo Tracker, Sidekick, and X-90.

Applications and Problem Solving

• Replacement for worn or warped rotors on Chevrolet Sidekick and Geo Tracker
• Improves braking performance on Suzuki Samurai and X-90 with drilled and slotted design
• Helps reduce brake fade during heavy use or steep descents
• Resists rust and corrosion in humid or wet environments
• Maintains proper rotor thickness for safe braking with a discard thickness of 8 mm

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 8 mm before installation. Clean the hub surface to remove any rust or debris to ensure proper rotor seating. Use the correct torque specifications for the 5-lug bolts with 12.75 mm diameter to avoid warping. The directional drilled and slotted surface requires installation in the correct orientation for optimal performance.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor to meet OEM standards for fit and function. The rust-resistant zinc black coating on the rotor hat provides added durability. While specific warranty details are not provided, Dynamite Friction products typically adhere to industry quality controls to ensure reliable braking performance for Chevrolet, Geo, and Suzuki vehicles.
