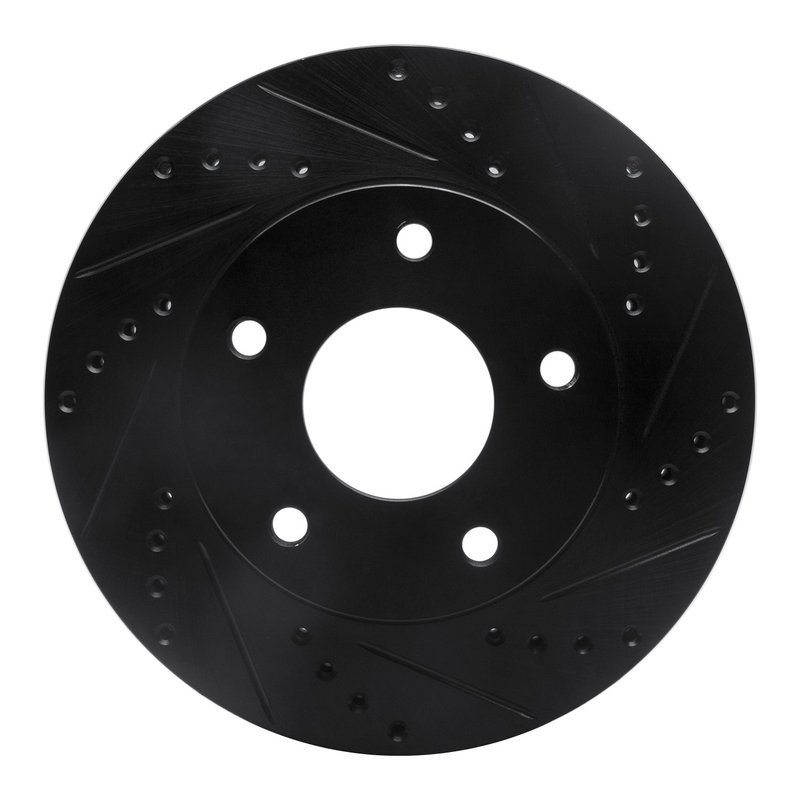

Dynamite Friction 633-48034R Disc Brake Rotor - Front Right

Drilled and Slotted Front Right Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black, part number 633-48034R, is a vented disc brake rotor for the front right position. It features a slotted X drilled surface, a zinc black hat finish, and a rust resistant coating for service in demanding brake environments.

Compatible With 1997-2005 Chevrolet Blazer, 1998-2004 Chevrolet S10, 1998-2004 GMC Sonoma, 1997-2002 GMC Jimmy, 1997-2001 Oldsmobile Bravada, and 1998-2000 Isuzu Hombre in the front right position. This 633-48034R rotor is built around the listed dimensions for direct replacement use on supported applications.

Key Features

• Part number 633-48034R
• Disc brake rotor for front right placement
• Slotted X drilled braking surface
• Vented rotor construction
• Rust resistant coating
• Zinc black hat finish
• 5-bolt, 5-lug pattern with 120.7 mm bolt circle diameter
• Outside diameter: 273 mm
• Nominal thickness: 29 mm; discard thickness: 27.5 mm
• Center hole diameter: 70.8 mm

DFC Brake Rotor - Drilled and Slotted - Black Line Details

The DFC Brake Rotor - Drilled and Slotted - Black line combines a directional slotted and drilled surface with a black-coated hat for a clean appearance and corrosion resistance. The vented design and specified thickness dimensions support consistent brake service on the listed Chevrolet, GMC, Oldsmobile, and Isuzu front right applications.

What This Rotor Helps Address

• Brake pulsation caused by worn or uneven rotor surfaces
• Reduced braking performance from rotor wear beyond discard thickness
• Corrosion on exposed rotor and hat surfaces
• Noise or uneven contact associated with damaged braking surfaces
• Replacement needs for front right rotor service on supported vehicles

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, center hole diameter, and position before installation. This rotor is directional, so confirm correct orientation during service. Inspect pads, caliper condition, and hub surfaces at the same time to help ensure proper brake operation on Chevrolet Blazer, S10, and GMC Sonoma front right applications.

Fits 1997-2005 Chevrolet Blazer, front right; 1998-2004 Chevrolet S10, front right; 1998-2004 GMC Sonoma, front right; 1997-2002 GMC Jimmy, front right; 1997-2001 Oldsmobile Bravada, front right; and 1998-2000 Isuzu Hombre, front right.

Quality Assurance

Dynamite Friction identifies this rotor with defined thickness, diameter, bolt circle, and finish specifications for application matching. Part number 633-48034R should be cross-checked against the vehicle’s brake setup and position requirements before installation.
