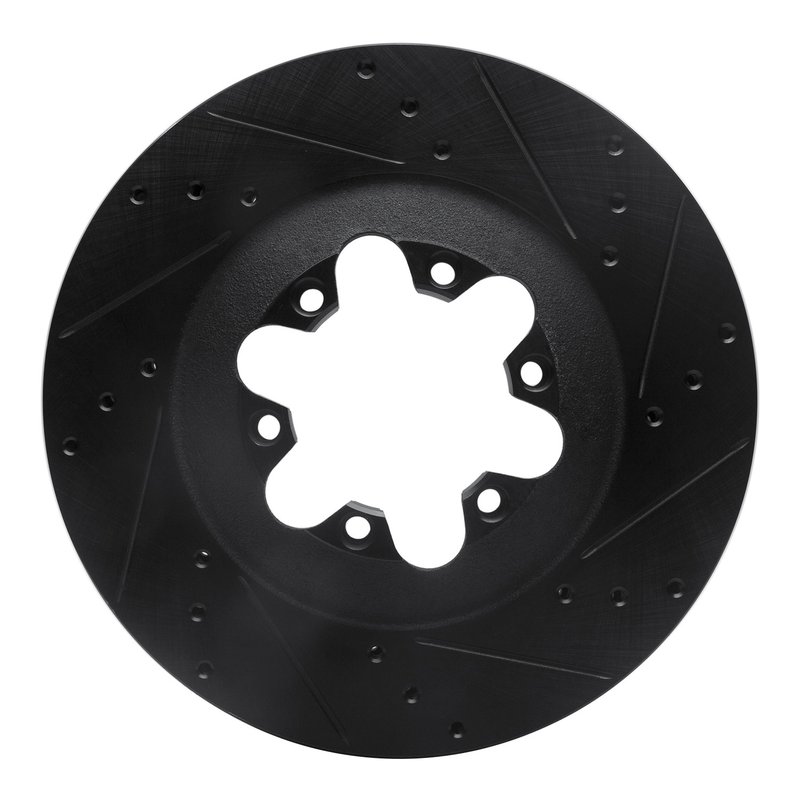

Dynamite Friction 633-48057R Disc Brake Rotor - Front Right

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-48057R) is engineered for Chevrolet and GMC trucks, specifically the Canyon and Colorado models. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance braking performance and heat dissipation.

• Compatible with Chevrolet Canyon and GMC Colorado
• Part Number: 633-48057R
• Drilled and slotted vented rotor for improved cooling
• Zinc black hat finish with rust-resistant coating
• Directional brake surface for optimized braking
• Overall diameter: 298 mm with 6 bolt holes (10.4 mm diameter)
• Nominal thickness: 29 mm; discard thickness: 27.5 mm

Details on the DFC Brake Rotor - Drilled and Slotted - Black Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that combine drilled holes and slots on the braking surface to improve water, gas, and dust evacuation. This design helps maintain consistent braking performance under demanding conditions. The black zinc-coated hat provides corrosion resistance, extending rotor life and maintaining appearance. This rotor line is tailored for drivers seeking reliable stopping power with enhanced heat dissipation.

Technical Specifications and Features

This disc brake rotor is vented, allowing air to flow between the rotor surfaces to reduce heat buildup during braking. The rotor has a nominal thickness of 29 mm and a discard thickness of 27.5 mm, ensuring safe replacement intervals. The rotor’s overall diameter measures 298 mm with a height of 40.2 mm. It features six bolt holes with a diameter of 10.4 mm and a bolt circle diameter of 112 mm, matching the stud/lug hole pattern for Chevrolet Canyon and GMC Colorado models. The directional slotted and drilled surface improves brake pad bite and helps prevent brake fade by efficiently dissipating heat and gases.

Applications and Problem Solving

• Replaces worn or warped rotors on Chevrolet Canyon and GMC Colorado
• Improves braking performance in wet or dusty conditions
• Reduces brake fade during heavy or repeated braking
• Helps prevent rust and corrosion with zinc black hat finish and coating
• Maintains consistent braking feel with vented rotor design

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 27.5 mm before installation. Clean the rotor surface to remove any protective coating or debris before mounting. Verify bolt hole alignment with the 6-lug pattern and 112 mm bolt circle diameter. Use proper torque specifications for lug nuts to avoid rotor warping. Directional rotors must be installed with the correct rotation direction for optimal performance.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor with rust-resistant coatings and zinc black finish to enhance durability. The vented design supports heat management to extend rotor life. While specific warranty details are not provided, Dynamite Friction products typically meet industry standards for quality and reliability.
