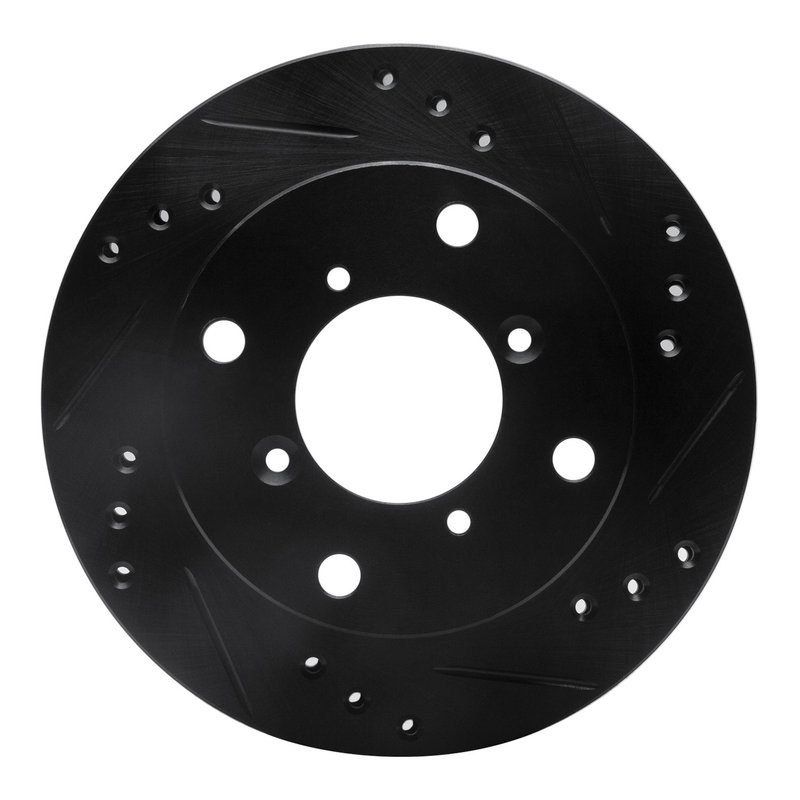

Dynamite Friction 633-50002R Disc Brake Rotor - Front Right

Reliable Performance with Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (Part Number 633-50002R) offers a durable and efficient braking solution for Chevrolet Firefly, Geo Metro, and Pontiac Suzuki Swift models. Designed to meet specific fitment requirements, this vented disc brake rotor enhances heat dissipation and braking consistency.

• Disc Type: Vented, drilled and slotted surface for improved cooling and debris removal
• Nominal Thickness: 17 mm with a discard thickness of 15 mm for safe replacement intervals
• Overall Diameter: 231 mm with a height of 50 mm
• Bolt Pattern: 4 bolt holes with 12.75 mm diameter and 114.3 mm bolt circle diameter
• Rust Resistant Zinc Black Hat Finish with plain disc finish for corrosion protection
• Directional brake surface design for optimized braking performance

About the DFC Brake Rotor - Drilled and Slotted - Black Product Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors engineered for enhanced heat dissipation and braking efficiency. Featuring a vented design combined with drilled and slotted surfaces, these rotors help maintain consistent brake pad contact and reduce the risk of brake fade. The zinc black hat finish adds a layer of rust resistance, extending rotor life in various driving conditions.

Detailed Product Description

This Dynamite Friction disc brake rotor is specifically designed for compatibility with Chevrolet Firefly, Geo Metro, and Pontiac Suzuki Swift vehicles. The rotor measures 231 mm in outside diameter and 50 mm in height, with a nominal thickness of 17 mm and a discard thickness of 15 mm, ensuring precise fit and safe wear limits. The vented rotor design improves airflow to dissipate heat effectively during braking, while the drilled and slotted surface helps remove brake dust and gases, maintaining optimal braking performance. The zinc black hat finish provides corrosion resistance, protecting the rotor hub from rust and extending service life. The rotor features a 4-bolt hole pattern with 12.75 mm diameter holes and a 114.3 mm bolt circle diameter, matching factory specifications for secure installation.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors on Chevrolet Firefly, Geo Metro, and Pontiac Suzuki Swift
• Improves braking performance by reducing heat buildup and brake fade
• Helps eliminate brake noise and vibration caused by uneven rotor surfaces
• Prevents rust and corrosion on rotor hats for longer durability
• Maintains consistent brake pad contact with directional drilled and slotted design

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 15 mm before installation. Clean the rotor surface to remove any protective coatings or debris prior to mounting. Verify bolt hole alignment with the vehicle’s hub using the 4-bolt pattern and 114.3 mm bolt circle diameter. Properly torque lug nuts to manufacturer specifications to avoid rotor warping. Directional rotors should be installed following the indicated rotation direction for optimal performance.

Quality Assurance

Dynamite Friction manufactures this rotor to meet OEM specifications for fit and function. The rust-resistant zinc black hat finish enhances durability in various environments. While no specific warranty information is provided, adherence to discard thickness and proper installation ensures reliable braking performance and rotor longevity.
