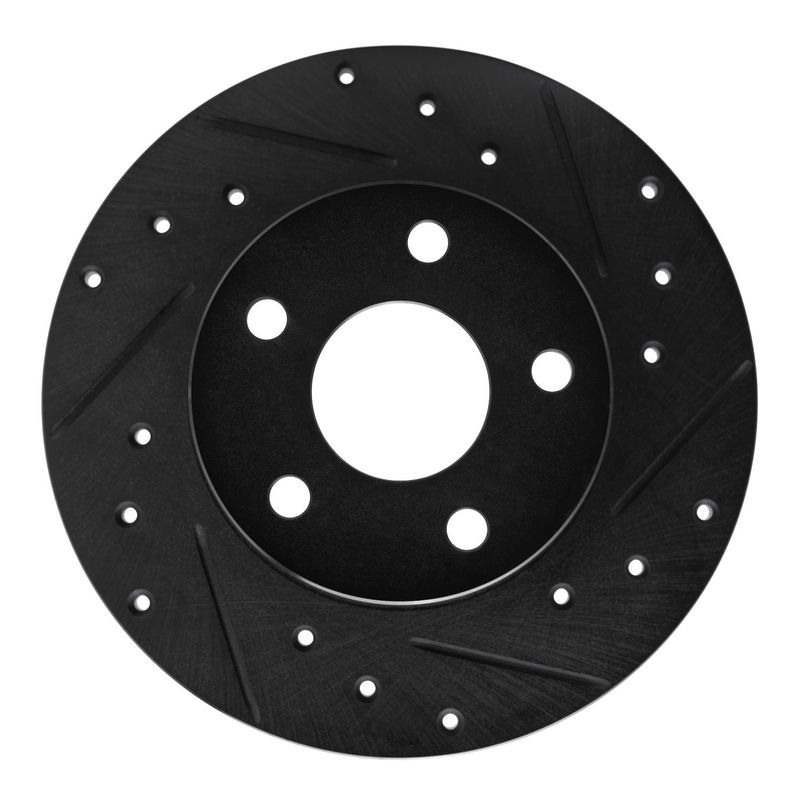

Dynamite Friction 633-52003R Disc Brake Rotor - Rear Right

Overview of Dynamite Friction DFC Brake Rotor for Pontiac Fiero

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-52003R) is engineered for Pontiac Fiero models requiring reliable braking performance. This solid disc brake rotor features a directional, slotted and drilled surface designed to enhance heat dissipation and maintain consistent stopping power under various driving conditions.

• Compatible with Pontiac Fiero vehicles
• Part number: 633-52003R
• Solid disc rotor with drilled and slotted surface
• Nominal thickness: 12.5 mm; discard thickness: 10.9 mm
• Outside diameter: 246 mm; overall height: 45.9 mm
• Directional brake surface for optimized performance
• Rust-resistant zinc black hat finish
• 5 bolt holes with 13 mm diameter and 100 mm bolt circle diameter

Details on the DFC Brake Rotor - Drilled and Slotted - Black Product Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that combine drilled holes and precision slots to improve brake pad bite and reduce heat buildup. The black zinc coating on the rotor hat provides corrosion resistance, extending rotor life. This product line is designed to meet the demands of drivers who require consistent braking performance and durability, particularly for vehicles like the Pontiac Fiero.

Technical Specifications and Features

This rotor is a solid type with a nominal thickness of 12.5 mm and a discard thickness of 10.9 mm, ensuring safe replacement intervals. The rotor’s outside diameter measures 246 mm, with an overall height of 45.9 mm. It features a directional surface pattern combining drilled holes and slots to aid in heat dissipation and debris removal. The rotor hat is finished with a rust-resistant zinc black coating to protect against corrosion. It includes five bolt holes, each 13 mm in diameter, arranged on a 100 mm bolt circle diameter, matching the Pontiac Fiero’s specifications.

Applications and Problem Solving

• Replaces worn or warped brake rotors on Pontiac Fiero models
• Improves heat dissipation to reduce brake fade during extended use
• Enhances braking response with slotted and drilled surface design
• Prevents rust and corrosion with zinc black coated rotor hat
• Maintains proper fitment with exact bolt hole and diameter specifications

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 10.9 mm before installation. The directional surface requires mounting in the correct rotation direction for optimal performance. Verify bolt hole alignment with the 5-lug, 100 mm bolt circle diameter pattern on the Pontiac Fiero. Clean the rotor surface of any protective coatings before installation to avoid brake pad contamination.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor to meet industry standards for durability and performance. The rust-resistant coating and precise machining contribute to long service life. Warranty details are not specified for this part number 633-52003R; please consult the manufacturer or distributor for specific warranty information.
