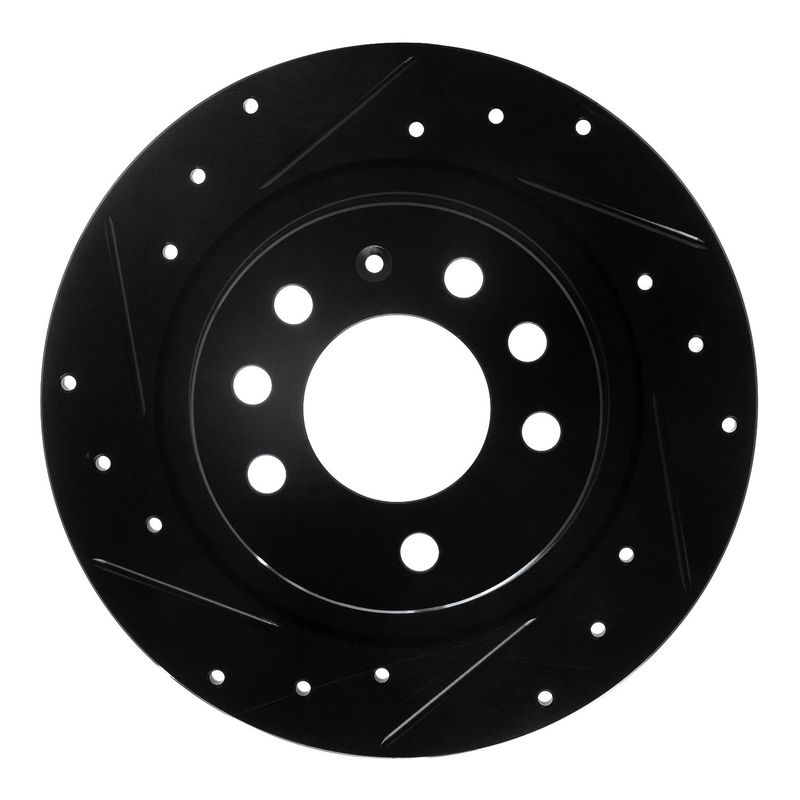

Dynamite Friction 633-52006L Disc Brake Rotor - Rear Left

Overview of Dynamite Friction DFC Brake Rotor

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (part number 633-52006L) is engineered for Chevrolet Camaro and Pontiac Firebird models. This vented disc brake rotor features a directional, slotted, and drilled surface designed to enhance braking performance and heat dissipation.

• Compatible with Chevrolet Camaro and Pontiac Firebird
• Directional slotted and drilled surface for improved brake response
• Vented rotor design for efficient heat dissipation
• Black zinc-coated hat finish for corrosion resistance
• Nominal thickness of 20 mm with discard thickness at 18.39 mm
• Five bolt holes with 13.5 mm diameter and 120.7 mm bolt circle diameter
• Overall diameter of 296 mm and height of 50 mm

Detailed Product Features and Specifications

The DFC Brake Rotor - Drilled and Slotted - Black from Dynamite Friction is designed with a vented rotor type that helps reduce heat buildup during braking, which is critical for maintaining consistent stopping power. The rotor’s surface is both drilled and slotted in a directional pattern, which aids in channeling away brake dust, gases, and water, improving overall brake pad contact and performance. The rotor’s hat is finished with a zinc black coating to provide rust resistance, extending the rotor’s service life in various driving conditions.

With a nominal thickness of 20 mm and a discard thickness of 18.39 mm, this rotor meets precise wear limits to ensure safety and reliability. The rotor features five bolt holes with a diameter of 13.5 mm and a bolt circle diameter of 120.7 mm, matching the factory specifications for the Chevrolet Camaro and Pontiac Firebird. The overall diameter of 296 mm and height of 50 mm ensure proper fitment and compatibility.

About the DFC Brake Rotor - Drilled and Slotted - Black Product Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on providing rotors with enhanced surface designs that improve braking efficiency and heat management. This product line combines drilled holes and slots in a directional pattern to optimize brake pad cleaning and gas evacuation, which is particularly beneficial for performance-oriented vehicles like the Camaro and Firebird. The black zinc coating on the rotor hat adds a layer of corrosion protection, making these rotors suitable for a range of driving environments.

Applications and Problem Solving

• Reduces brake fade caused by excessive heat during aggressive driving
• Improves wet weather braking by channeling water away from the rotor surface
• Minimizes brake dust buildup for cleaner braking surfaces
• Restores braking performance on worn or warped rotors
• Provides corrosion resistance to extend rotor lifespan

Installation Notes and Tips

Ensure the rotor is compatible with your specific Chevrolet Camaro or Pontiac Firebird model year before installation. Clean the rotor surface to remove any protective coating or residue prior to mounting. Use proper torque specifications on the five lug bolts (13.5 mm diameter) to secure the rotor. It is recommended to inspect brake pads and hardware during installation to maintain optimal braking performance.

Quality Assurance

Dynamite Friction manufactures the 633-52006L rotor to meet OEM specifications for fit, form, and function. The rust-resistant zinc black coating on the rotor hat helps maintain structural integrity over time. While no specific warranty information is provided, Dynamite Friction products are engineered for durability and consistent braking performance on Chevrolet Camaro and Pontiac Firebird vehicles.
