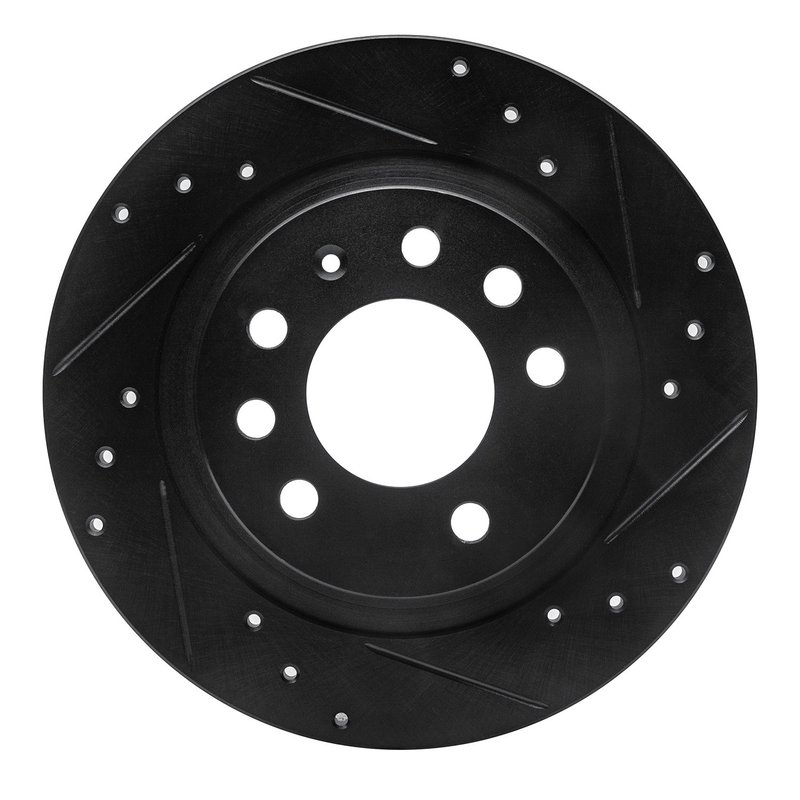

Dynamite Friction 633-53006R Disc Brake Rotor - Rear Right

Reliable Performance for Pontiac Sky and Saturn Solstice

The Dynamite Friction DFC Brake Rotor - Drilled and Slotted - Black (Part Number 633-53006R) is engineered to provide consistent braking performance for Pontiac Sky and Saturn Solstice vehicles. Designed with durability and heat dissipation in mind, this rotor meets the demands of everyday driving and spirited road use.

• Disc type: Solid disc brake rotor with drilled and slotted surface
• Nominal thickness: 12 mm with a discard thickness of 10 mm
• Overall diameter: 278 mm with a height of 41.9 mm
• Directional brake surface for optimized performance
• Hat finish: Zinc black coating for corrosion resistance
• Rust resistant coating applied to extend rotor life
• 5 bolt holes with 14.2 mm diameter and 110.4 mm bolt circle diameter
• Center hole diameter: 70 mm

About the DFC Brake Rotor - Drilled and Slotted - Black Line

The DFC Brake Rotor - Drilled and Slotted - Black line by Dynamite Friction focuses on rotors that combine functional design with enhanced heat management. The drilled and slotted surface improves brake pad bite and helps evacuate gases and debris, while the zinc black hat finish offers additional protection against rust. This product line is tailored for drivers seeking reliable braking components that maintain performance under varied conditions.

Product Details and Specifications

This solid rotor features a directional surface type with both drilled holes and slots, which aid in cooling and maintaining consistent friction during braking. The rotor’s nominal thickness is 12 mm, with a discard thickness of 10 mm, ensuring a clear maintenance threshold. The zinc black hat finish and rust resistant coating help protect the rotor from corrosion, extending its service life. The rotor is designed with 5 bolt holes, each 14.2 mm in diameter, arranged on a 110.4 mm bolt circle diameter, matching the factory specifications for Pontiac Sky and Saturn Solstice models.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Pontiac Sky and Saturn Solstice
• Improves heat dissipation to reduce brake fade during aggressive driving
• Helps eliminate brake noise and vibration caused by uneven rotor surfaces
• Restores braking performance compromised by rust or corrosion
• Suitable for drivers seeking rotors with enhanced surface design for better pad contact

Installation Notes and Tips

Ensure the rotor surface is clean and free of any protective coatings before installation. Verify that the rotor thickness meets or exceeds the discard thickness of 10 mm to maintain safety standards. Use proper torque specifications for the 5 lug bolts with 14.2 mm diameter holes. Directional rotors must be installed following the indicated rotation direction to ensure optimal performance and longevity.

Quality Assurance and Warranty

Dynamite Friction manufactures this rotor to meet OEM specifications for fit and function on Pontiac Sky and Saturn Solstice vehicles. The rust resistant coating and zinc black hat finish contribute to durability and corrosion resistance. Please refer to Dynamite Friction’s warranty policy for coverage details related to manufacturing defects.
